2018 Yamaha XT250 CA (XT250J1C) Intake Diagram

← All diagrams

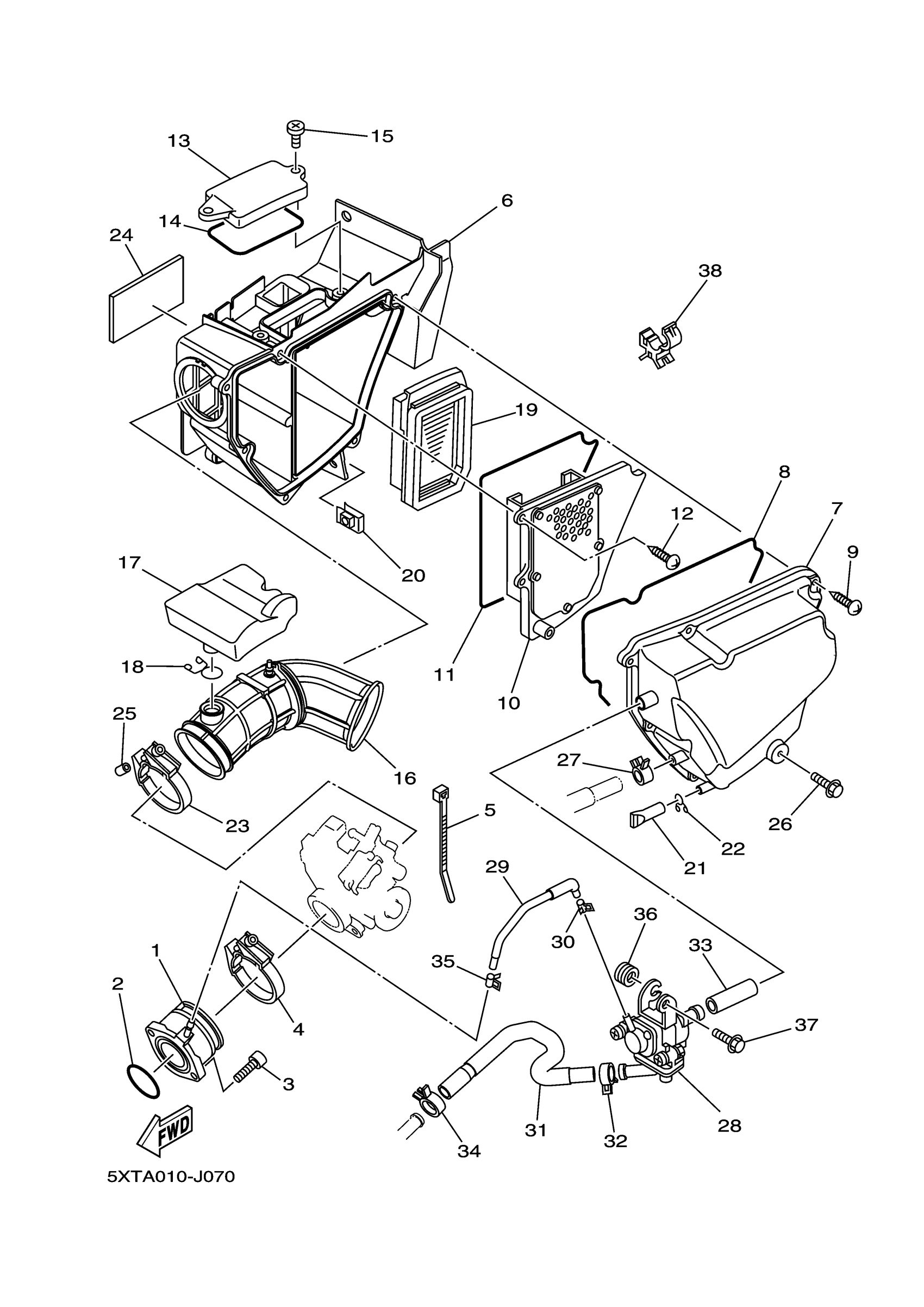

Find the part on the Intake diagram for your 2018 Yamaha XT250 CA (XT250J1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha XT250 CA (XT250J1C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD

5XT-13585-00-00

—
Out of stock

2

O-RING(1FN)

93210-39700-00

1
Out of stock

3

BOLT,SOCKET HEAD

91314-06020-00

1
Out of stock

4

HOSE CLAMP ASSY

90450-55003-00

1
Out of stock

5

CLAMP

90465-10098-00

1
Out of stock

6

AIR CLEANER CASE ASSY

5XT-14401-21-00

—
Out of stock

7

CASE, AIR CLEANER 2

5XT-14421-02-00

—
Out of stock

8

SEAL

1VJ-14462-00-00

1
Out of stock

9

SCREW, TRUSS TAP.

97707-50025-00

1
Out of stock

10

PLATE, ELEMENT

5XT-14472-01-00

—
Out of stock

11

SEAL

51Y-14462-00-00

1
Out of stock

12

SCREW, PAN TAP.2 SLIT

97707-50620-00

1
Out of stock

13

CAP, CLEANER CASE 1

5XT-14412-01-00

1
Out of stock

14

SEAL

5XT-14457-00-00

1
Out of stock

15

SCREW, BINDING

98907-06012-00

1
Out of stock

16

JOINT, AIR CLEANER 1

5XT-14453-10-00

—
Out of stock

17

CHAMBER, AIR

5XT-13581-10-00

—
Out of stock

18

CLIP

90467-18196-00

—
Out of stock

19

ELEMENT, AIR CLEANER

5XT-14451-00-00

—
Out of stock

20

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

21

PIPE, DRAIN

5XT-1443E-00-00

—
Out of stock

22

CLIP(1JH)

90467-11106-00

—
Out of stock

23

HOSE CLAMP ASSY

90450-46001-00

—
Out of stock

24

DAMPER, PLATE 1

5EJ-2414H-00-00

—
Out of stock

25

HOSE

90445-05005-00

—
Out of stock

26

BOLT, FLANGE

95817-06010-00

—
Out of stock

27

CLIP (7K7)

90467-11044-00

—
Out of stock

28

AIR INDUCTION SYST

5XT-14803-20-00

—
Out of stock

29

HOSE, VACUUM SENSING 1

5XT-13542-11-00

—
Out of stock

30

CLIP(41W)

90467-08092-00

—
Out of stock

31

HOSE, BEND 1

5XT-14881-20-00

—
Out of stock

32

CLIP

90467-16181-00

—
Out of stock

33

HOSE, BEND 2

5C1-14882-01-00

—
Out of stock

34

CLIP(3TB)

90467-17128-00

—
Out of stock

35

CLIP(41W)

90467-08092-00

—
Out of stock

36

GROMMET (17J)

90480-10334-00

—
Out of stock

37

BOLT, FLANGE

95812-06010-00

—
Out of stock

38

CLAMP(4GY)

90464-20191-00

—
Out of stock
