1982 Yamaha XT250J_1982 Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1982 Yamaha XT250J_1982, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

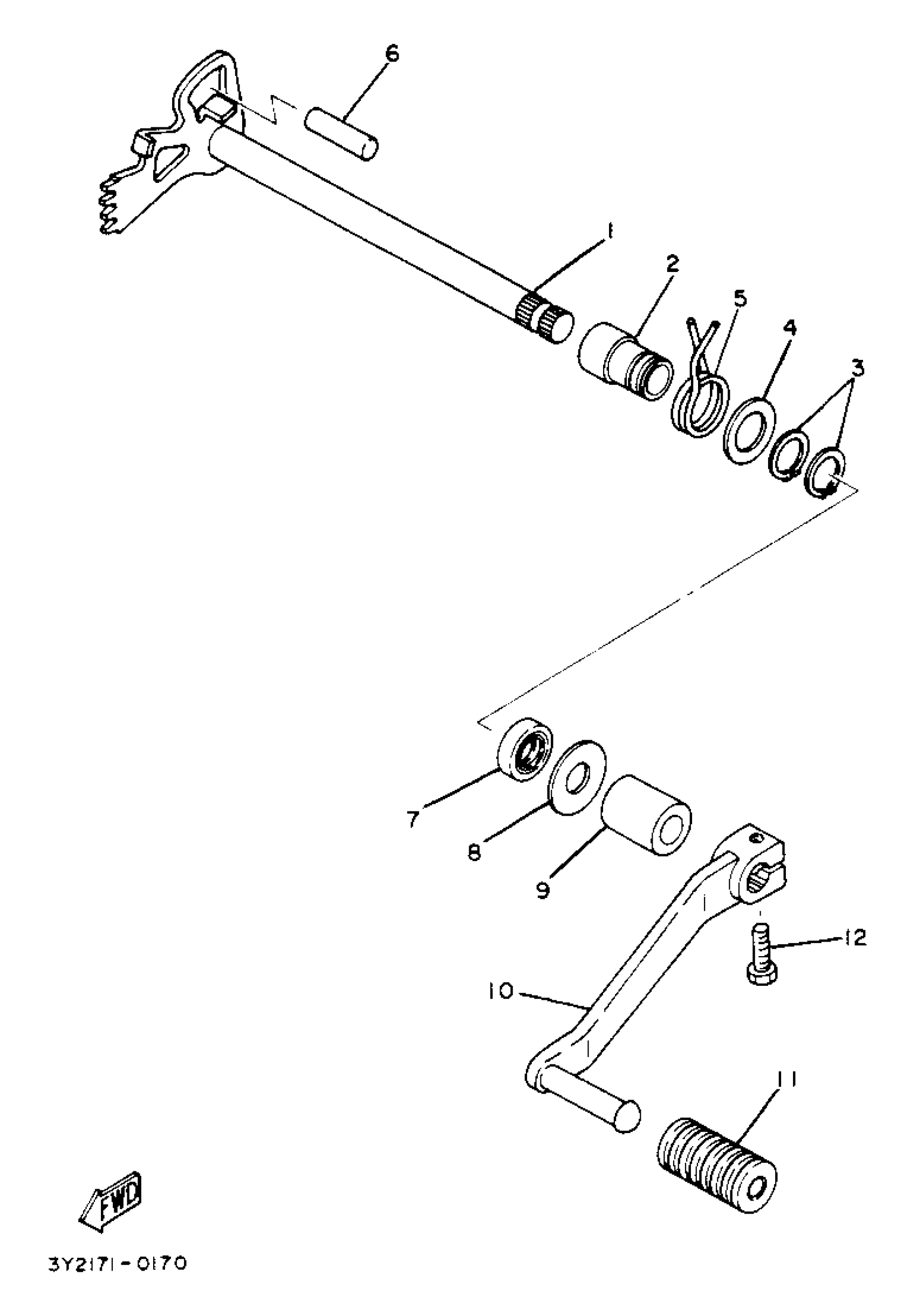

1982 Yamaha XT250J_1982 Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY

3Y1-18101-01-00

—
Out of stock

2

COLLAR (3Y1)

90387-12787-00

1

$9.55

In stock

3

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

4

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

5

SPRING, TORSION (2K7)

90508-32374-00

1
Out of stock

6

PIN, DOWEL

93608-30152-00

1
Out of stock

7

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

8

WASHER

90201-12588-00

1

$6.37

In stock

9

SPACER (3Y1)

90560-12191-00

1
Out of stock

10

PEDAL,SHIFT

3Y1-18111-00-00

1
Out of stock

11

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
