2015 Yamaha XT250 CA (XT250FC) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2015 Yamaha XT250 CA (XT250FC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

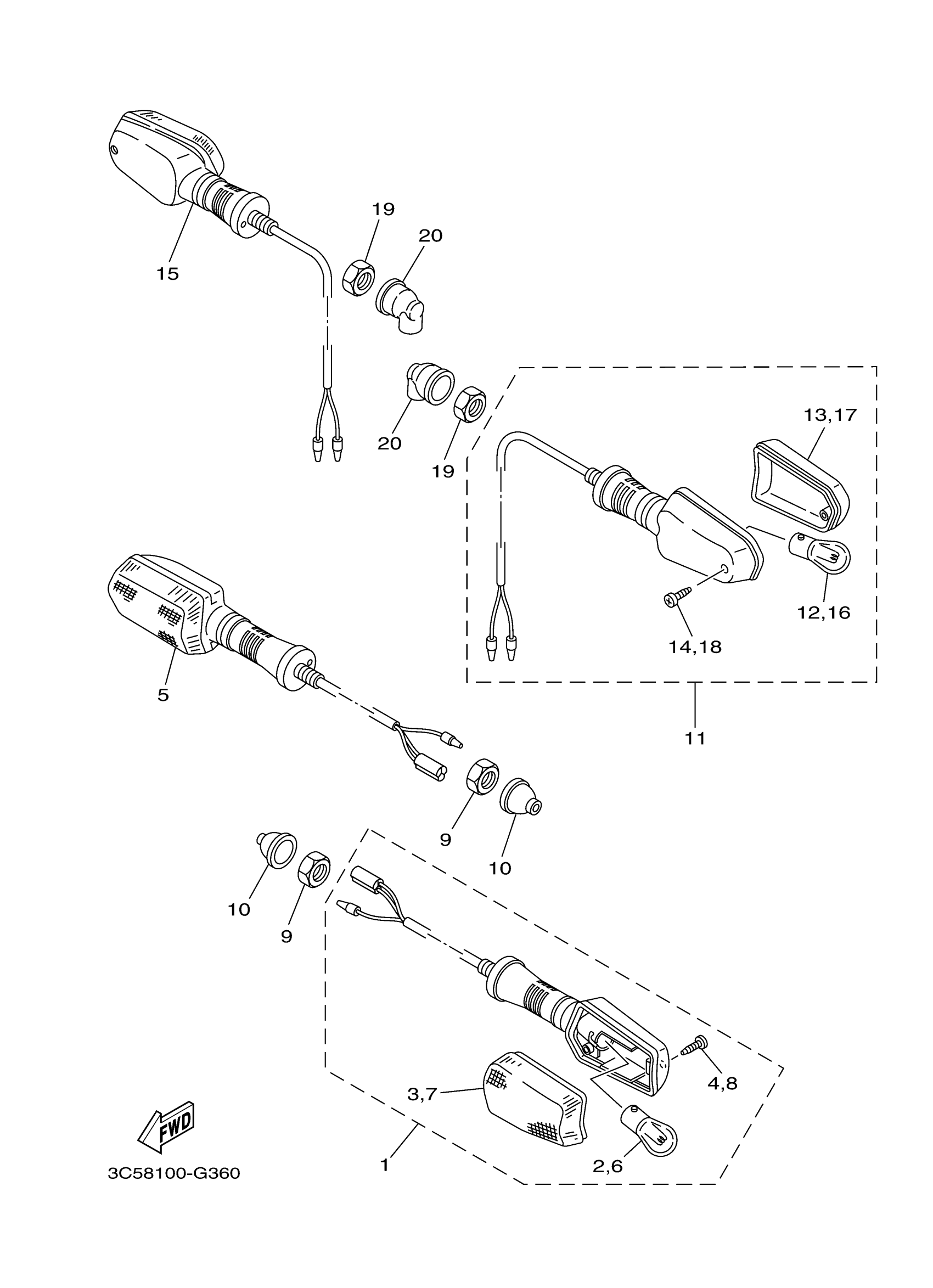

2015 Yamaha XT250 CA (XT250FC) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

3C5-83310-10-00

1
Out of stock

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

3

LENS, FLASHER 2

51L-83342-01-00

1
Out of stock

4

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

5

FRONT FLASHER LIGHT ASSY 2

3C5-83320-10-00

1
Out of stock

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

7

LENS, FLASHER

51L-83332-01-00

—
Out of stock

8

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

9

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

10

CAP

10V-83365-01-00

1
Out of stock

11

REAR FLASHER LIGHT ASSY 1

3C5-83330-10-00

1
Out of stock

12

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

13

LENS, FLASHER

51L-83332-01-00

—
Out of stock

14

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

15

REAR FLASHER LIGHT ASSY 2

4BE-83340-00-00

1
Out of stock

16

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

17

LENS, FLASHER 2

51L-83342-01-00

1
Out of stock

18

SCREW, PAN TAP.2

97707-40520-00

1
Out of stock

19

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

20

CAP

18G-83365-00-00

—
Out of stock
