2014 Yamaha XT250 CA (XT250EC) Side Cover Diagram

← All diagrams

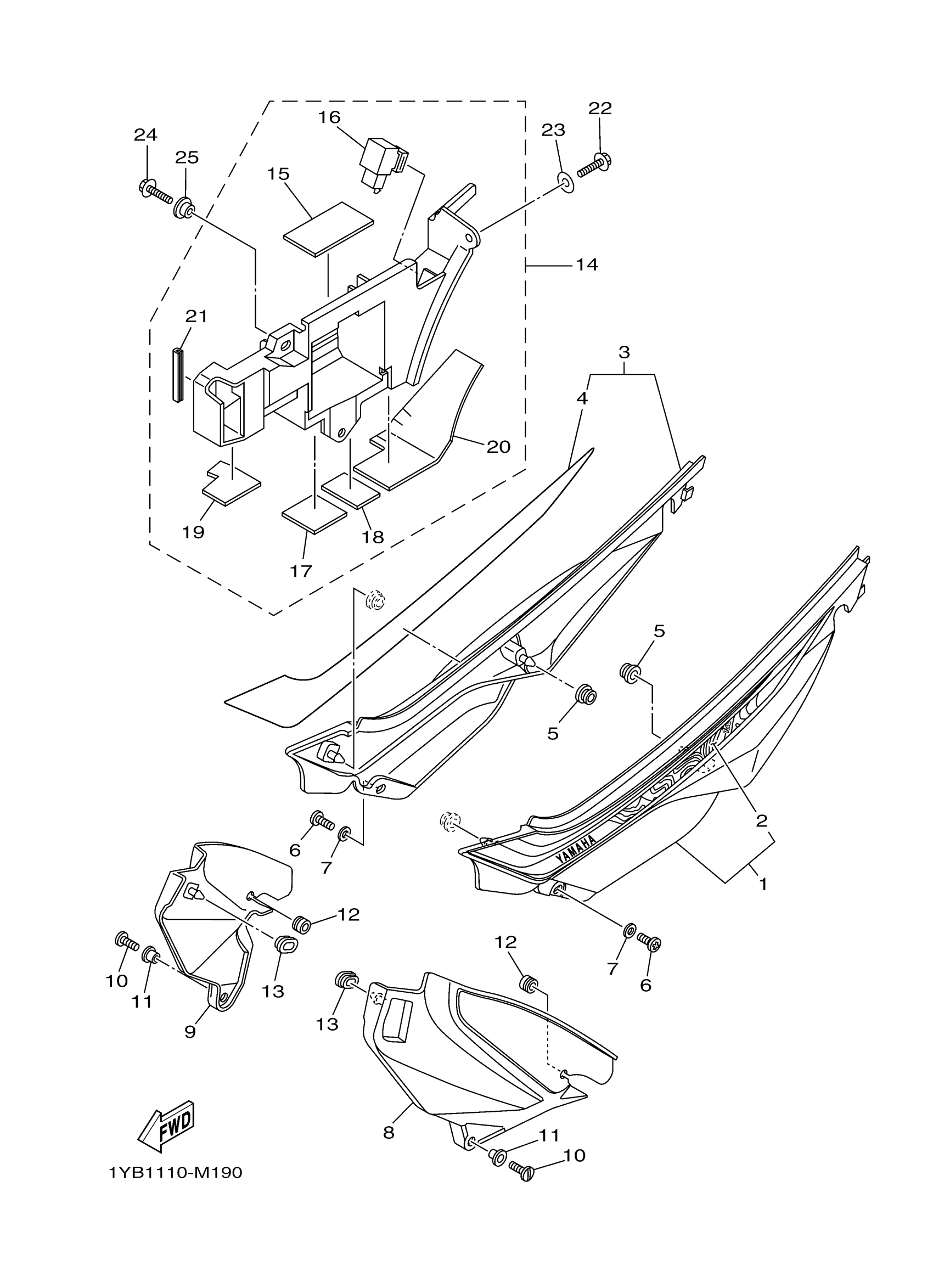

Find the part on the Side Cover diagram for your 2014 Yamaha XT250 CA (XT250EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Yamaha XT250 CA (XT250EC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3C5-Y2171-P0-00

—
Out of stock

2

GRAPHIC 1

3C5-2173E-K0-00

—
Out of stock

3

COVER, SIDE 2

3C5-Y2172-P0-00

1
Out of stock

4

GRAPHIC 2

3C5-2173F-K0-00

—
Out of stock

5

GROMMET(4DN)

90480-01558-00

1
Out of stock

6

SCREW(3XV)

90149-06298-00

1
Out of stock

7

WASHER, PLATE

90201-06020-00

1
Out of stock

8

COVER, SIDE 3

3C5-21731-00-00

1
Out of stock

9

COVER, SIDE 4

3C5-21741-00-00

1
Out of stock

10

SCREW, OVAL FILLISTER (7X9)

90146-06014-00

1
Out of stock

11

COLLAR

90387-06048-00

1
Out of stock

12

GROMMET (17J)

90480-10334-00

1
Out of stock

13

GROMMET(41Y)

90480-01401-00

1
Out of stock

14

BATTERY BOX ASSY

1YB-8210E-20-00

—
Out of stock

15

DAMPER, PLATE 1

5EJ-2414H-00-00

1
Out of stock

16

FLASHER RELAY ASSY

4MY-83350-03-00

—
Out of stock

17

INSULATOR, SIDE COVER

5XT-2174A-00-00

—
Out of stock

18

INSULATOR, SIDE COVER 2

5XT-2174T-00-00

—
Out of stock

19

INSULATOR 3

5XT-2172S-00-00

—
Out of stock

20

INSULATOR 4

5XT-2173S-00-00

—
Out of stock

21

MOLD, FUEL TANK

31A-24188-01-00

—
Out of stock

22

BOLT, FLANGE

95817-06010-00

—
Out of stock

23

WASHER, PLATE

90201-06095-00

—
Out of stock

24

BOLT, FLANGE

95817-06014-00

—
Out of stock

25

COLLAR

90387-06066-00

—
Out of stock
