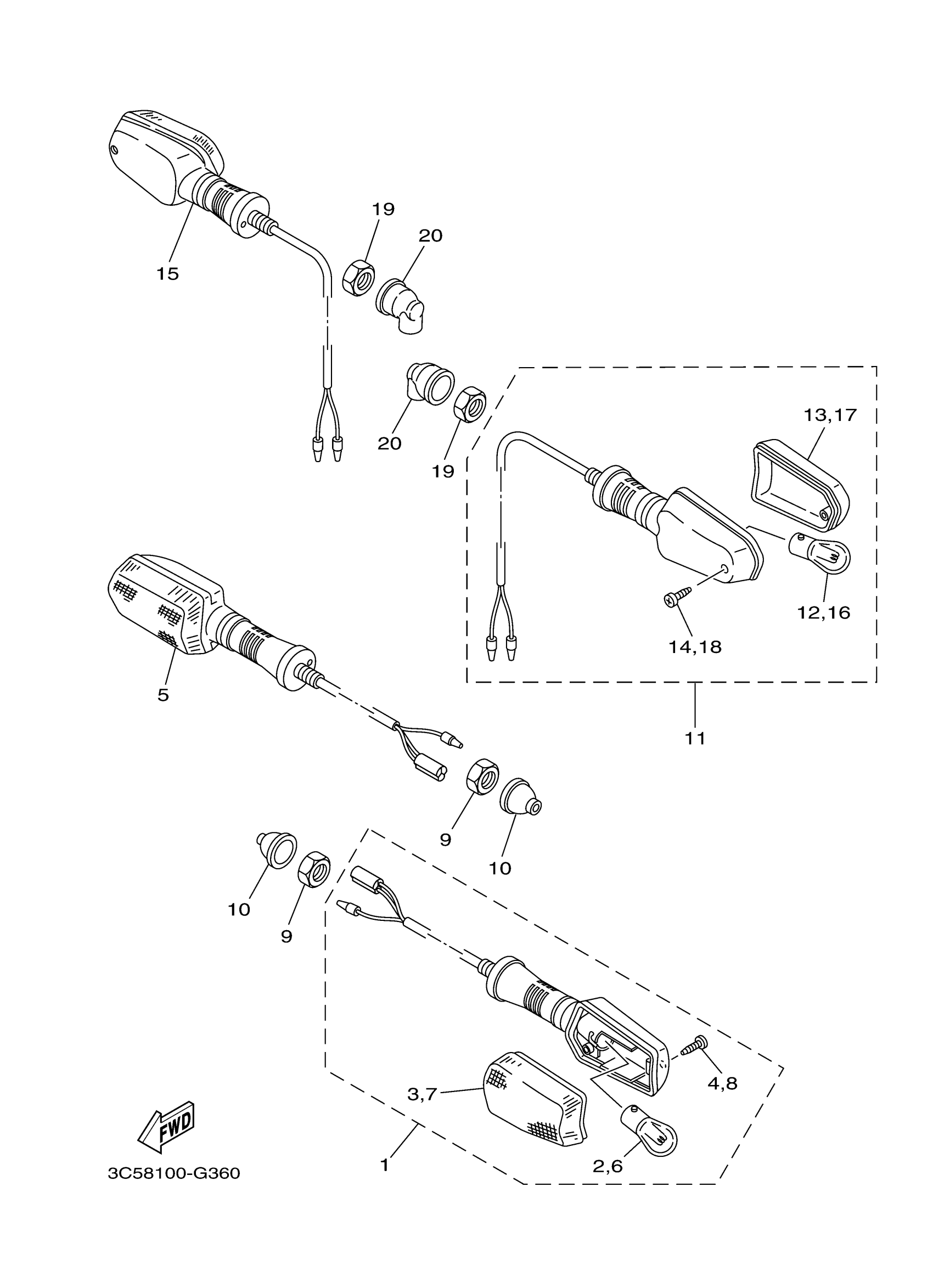

Yamaha XT250EC (XT250 CA) 1YB6 2014 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

3C5-83310-10-00

$64.05

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER 2

51L-83342-01-00

$6.85

4

SCREW, PAN TAP.2

97707-40520-00

$6.65

5

FRONT FLASHER LIGHT ASSY 2

3C5-83320-10-00

$83.06

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

7

LENS, FLASHER

51L-83332-01-00

Unavailable

8

SCREW, PAN TAP.2

97707-40520-00

$6.65

9

NUT, HEXAGON SMALL

95317-12700-00

$5.75

10

CAP

10V-83365-01-00

$2.64

11

REAR FLASHER LIGHT ASSY 1

3C5-83330-10-00

$43.71

12

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

13

LENS, FLASHER

51L-83332-01-00

Unavailable

14

SCREW, PAN TAP.2

97707-40520-00

$6.65

15

REAR FLASHER LIGHT ASSY 2

4BE-83340-00-00

$81.50

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

LENS, FLASHER 2

51L-83342-01-00

$6.85

18

SCREW, PAN TAP.2

97707-40520-00

$6.65

19

NUT, HEXAGON SMALL

95317-12700-00

$5.75

20

CAP

18G-83365-00-00

Unavailable
