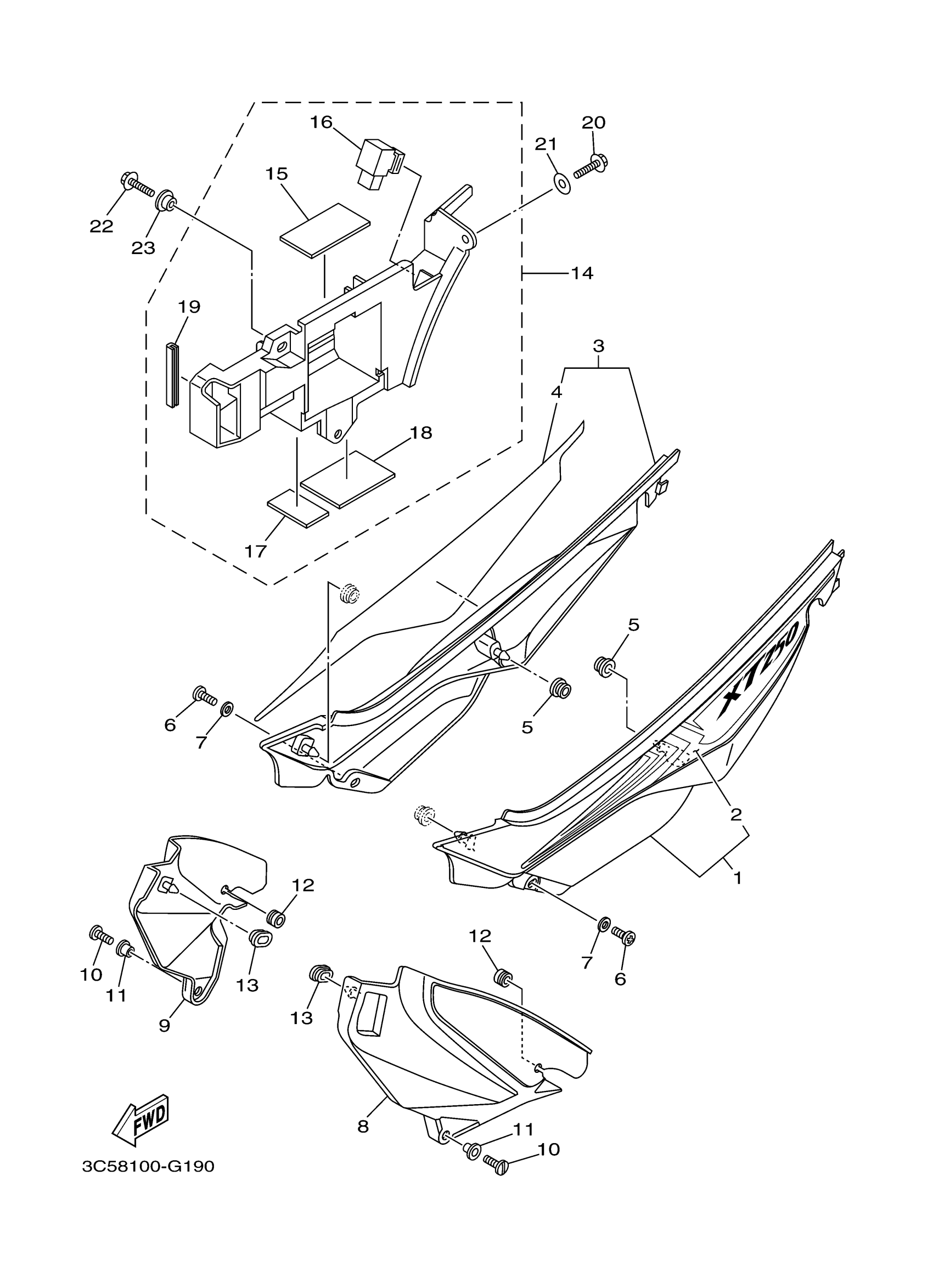

Yamaha XT250AC (XT250 CA) 3C5P 2011 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3C5-Y2171-G0-00

Unavailable

2

. GRAPHIC, 1

3C5-2173E-C0-00

Unavailable

3

COVER, SIDE 2

3C5-Y2172-G0-00

Unavailable

4

. GRAPHIC, 2

3C5-2173F-C0-00

Unavailable

5

GROMMET(4DN)

90480-01558-00

$3.68

6

SCREW(3XV)

90149-06298-00

$3.98

7

WASHER, PLATE

90201-06020-00

$5.86

8

COVER, SIDE 3

3C5-21731-00-00

$11.65

9

COVER, SIDE 4

3C5-21741-00-00

$12.48

10

SCREW, OVAL FILLISTER (7X9)

90146-06014-00

$2.34

11

COLLAR

90387-06048-00

$5.66

12

GROMMET (17J)

90480-10334-00

$6.43

13

GROMMET(41Y)

90480-01401-00

$5.29

14

BATTERY BOX ASSY

3C5-8210E-00-00

$99.80

15

DAMPER, PLATE 1

5EJ-2414H-00-00

$6.29

16

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

17

SEAL 1

5XT-21732-00-00

Unavailable

18

SEAL 2

5XT-21735-00-00

Unavailable

19

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

20

BOLT, FLANGE

95817-06010-00

Unavailable

21

WASHER, PLATE

90201-06095-00

Unavailable

22

BOLT, FLANGE

95817-06014-00

Unavailable

23

COLLAR

90387-06066-00

Unavailable
