2011 Yamaha XT250 CA (XT250AC) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2011 Yamaha XT250 CA (XT250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

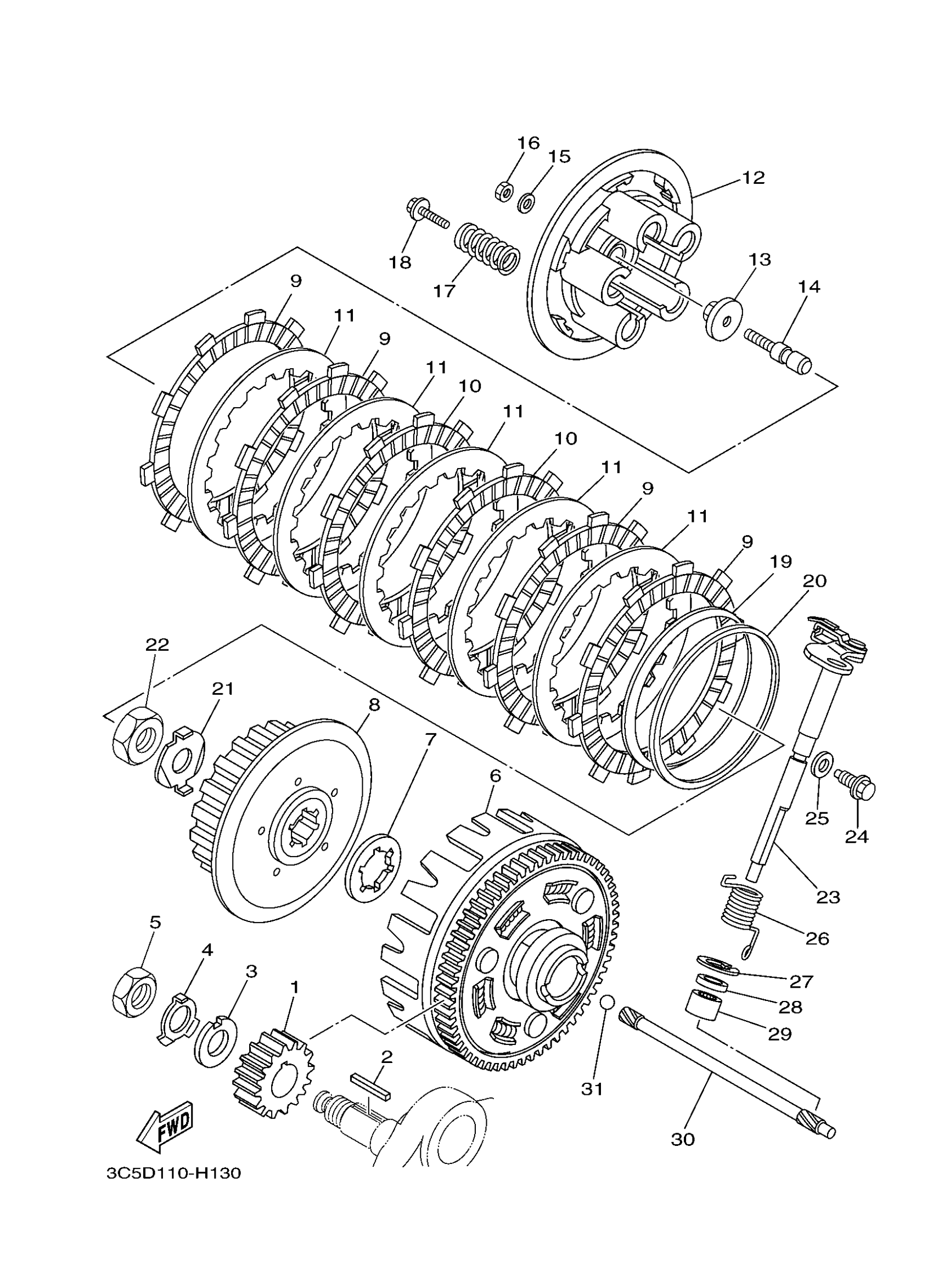

2011 Yamaha XT250 CA (XT250AC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5XT-16111-00-00

—
Out of stock

2

KEY, STRAIGHT(3UR)

90282-05077-00

—
Out of stock

3

WASHER, CLAW(4GY)

90214-16063-00

—
Out of stock

4

WASHER, LOCK

90215-16293-00

1
Out of stock

5

NUT

90170-16425-00

1
Out of stock

6

PRIMARY DRIVEN GEAR COMP.

5XT-16150-00-00

—
Out of stock

7

PLATE, THRUST 1

30X-16154-00-00

1
Out of stock

8

BOSS, CLUTCH

4GY-16371-01-00

—
Out of stock

9

PLATE, FRICTION

1KT-16321-00-00

1
Out of stock

10

PLATE, FRICTION

5DH-16321-00-00

1
Out of stock

11

PLATE, CLUTCH 1

3XJ-16324-10-00

1
Out of stock

12

PLATE, PRESSURE 1

4GY-16351-00-00

1
Out of stock

13

PLATE, PUSH

1W1-16358-01-00

1
Out of stock

14

ROD, PUSH 1

5XT-16356-00-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1
Out of stock

16

NUT, HEXAGON

95380-06600-00

1
Out of stock

17

SPRING, COMPRESSION (4H7)

90501-23598-00

—
Out of stock

18

SCREW, WITH WASHER (583)

90159-06010-00

—
Out of stock

19

SPRING, CLUTCH BOSS

3XV-16383-00-00

—
Out of stock

20

PLATE, SEAT

5NL-16384-00-00

—
Out of stock

21

WASHER, LOCK(4KB)

90215-16289-00

—
Out of stock

22

NUT, HEXAGON (30X)

90170-16326-00

—
Out of stock

23

PUSH LEVER ASSY

5XT-16380-00-00

—
Out of stock

24

BOLT

90109-08105-00

—
Out of stock

25

GASKET

90430-08119-00

—
Out of stock

26

SPRING, TORSION

90508-203B3-00

—
Out of stock

27

CIRCLIP(1EV)

99009-20500-00

—
Out of stock

28

OIL SEAL (4G0)

93102-12224-00

—
Out of stock

29

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

—
Out of stock

30

ROD, PUSH 2

4GY-16357-00-00

—
Out of stock

31

BALL (498)

93511-32027-00

—
Out of stock
