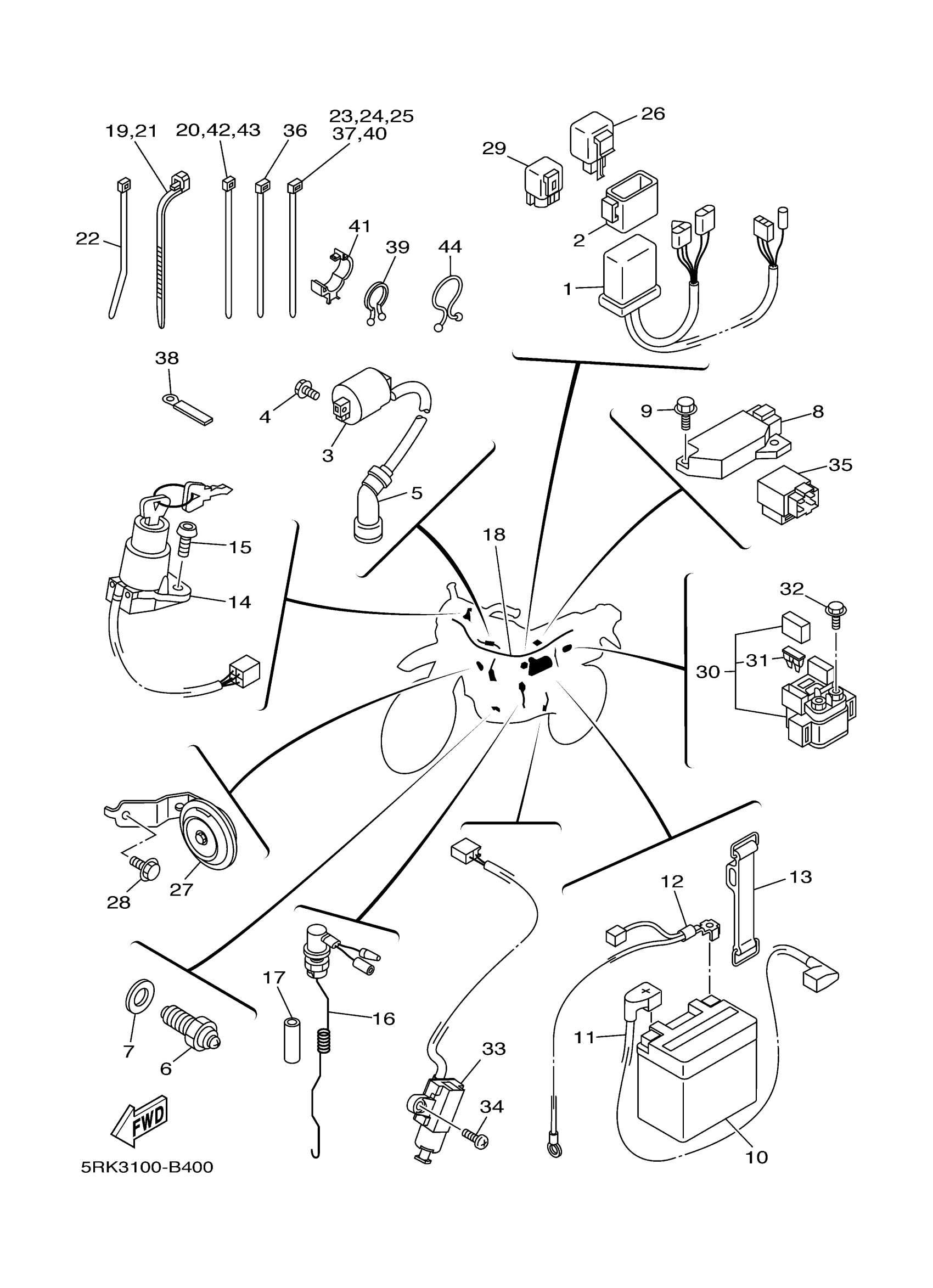

Yamaha XT225WC (XT225 CA) 5RKG 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

3GX-85540-00-00

Unavailable

2

BAND

3RW-85546-00-00

$11.55

3

IGNITION COIL ASSY

3KJ-82310-13-00

Unavailable

4

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

5

PLUG CAP ASSY

3NS-82370-00-00

$30.31

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$31.28

7

GASKET (1KH,1.0T)

90430-10148-00

$4.44

8

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

9

BOLT, SMALL FLANGE

95027-06025-00

$2.95

10

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

$171.08

11

WIRE, PLUS LEAD

5BT-82115-00-00

Unavailable

12

WIRE, MINUS LEAD

4JG-82116-10-00

Unavailable

13

BAND, BATTERY

22F-82131-00-00

$21.88

14

MAIN SWITCH STEERING LOCK

58E-82501-00-00

Unavailable

15

SCREW(1KT)

90149-06228-00

$5.86

16

STOP SWITCH ASSY

5BT-82530-00-00

Unavailable

17

HOSE(4CS)

90446-15381-00

Unavailable

18

WIRE HARNESS ASSY

4BE-82590-10-00

Unavailable

19

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

CLAMP

5Y9-12491-00-00

Unavailable

24

CLAMP

5Y9-12491-00-00

Unavailable

25

CLAMP

5Y9-12491-00-00

Unavailable

26

FLASHER RELAY ASSY

4VR-83350-02-00

Unavailable

27

HORN

3RW-83371-11-00

Unavailable

28

BOLT, FLANGE

95817-06010-00

Unavailable

29

RELAY ASSY

3RW-81950-01-00

Unavailable

30

STARTER RELAY ASSY (RC19-019)

4JG-81940-12-00

Unavailable

31

FUSE (20A)

2GV-82151-00-00

Unavailable

32

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

33

SWITCH, SIDE STAND

3LD-82566-61-00

Unavailable

34

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

35

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

36

CLAMP

90464-16061-00

Unavailable

37

CLAMP

5Y9-12491-00-00

Unavailable

38

CLAMP(4MX)

90465-06376-00

Unavailable

39

CLAMP (3Y2)

90464-16039-00

Unavailable

40

CLAMP

5Y9-12491-00-00

Unavailable

41

CLAMP(4GY)

90464-10190-00

Unavailable

42

BAND

1UA-82591-00-00

Unavailable

43

BAND

1UA-82591-00-00

Unavailable

44

CLAMP

90464-25267-00

Unavailable
