2006 Yamaha XT225 CA (XT225VC) Crankcase Diagram

← All diagrams

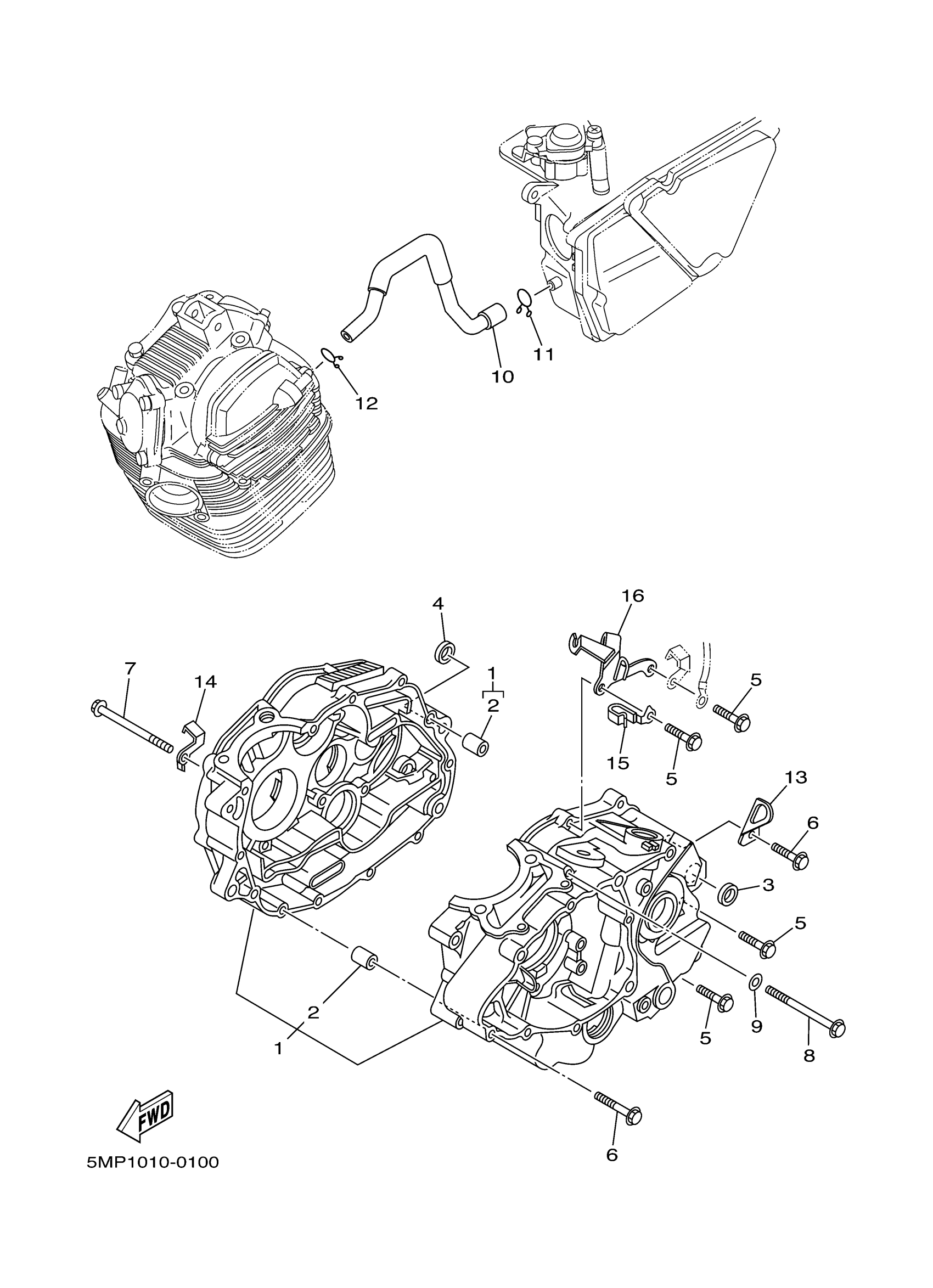

Find the part on the Crankcase diagram for your 2006 Yamaha XT225 CA (XT225VC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Yamaha XT225 CA (XT225VC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5RK-15100-00-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

4

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

5

BOLT, SMALL FLANGE

95027-06030-00

1

$3.65

In stock

6

BOLT, SMALL FLANGE

95027-06040-00

1

$2.48

In stock

7

BOLT, SMALL FLANGE

95027-06090-00

—

$1.91

In stock

8

BOLT, FLANGE(4NM)

95027-06085-00

1

$6.85

In stock

9

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

10

PIPE, BREATHER 1

5MP-11166-00-00

—
Out of stock

11

CLIP (371)

90467-14015-00

1

$7.51

In stock

12

CLIP(3YX)

90467-13133-00

1

$5.13

In stock

13

CLAMP

90465-08020-00

—

$18.94

In stock

14

CLAMP(3RW)

90462-08224-00

—

$3.60

In stock

15

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

16

HOLDER, CLUTCH CABLE

4JG-15441-02-00

—

$14.98

In stock
