2004 Yamaha XT225 CA (XT225SC) Side Cover Diagram

← All diagrams

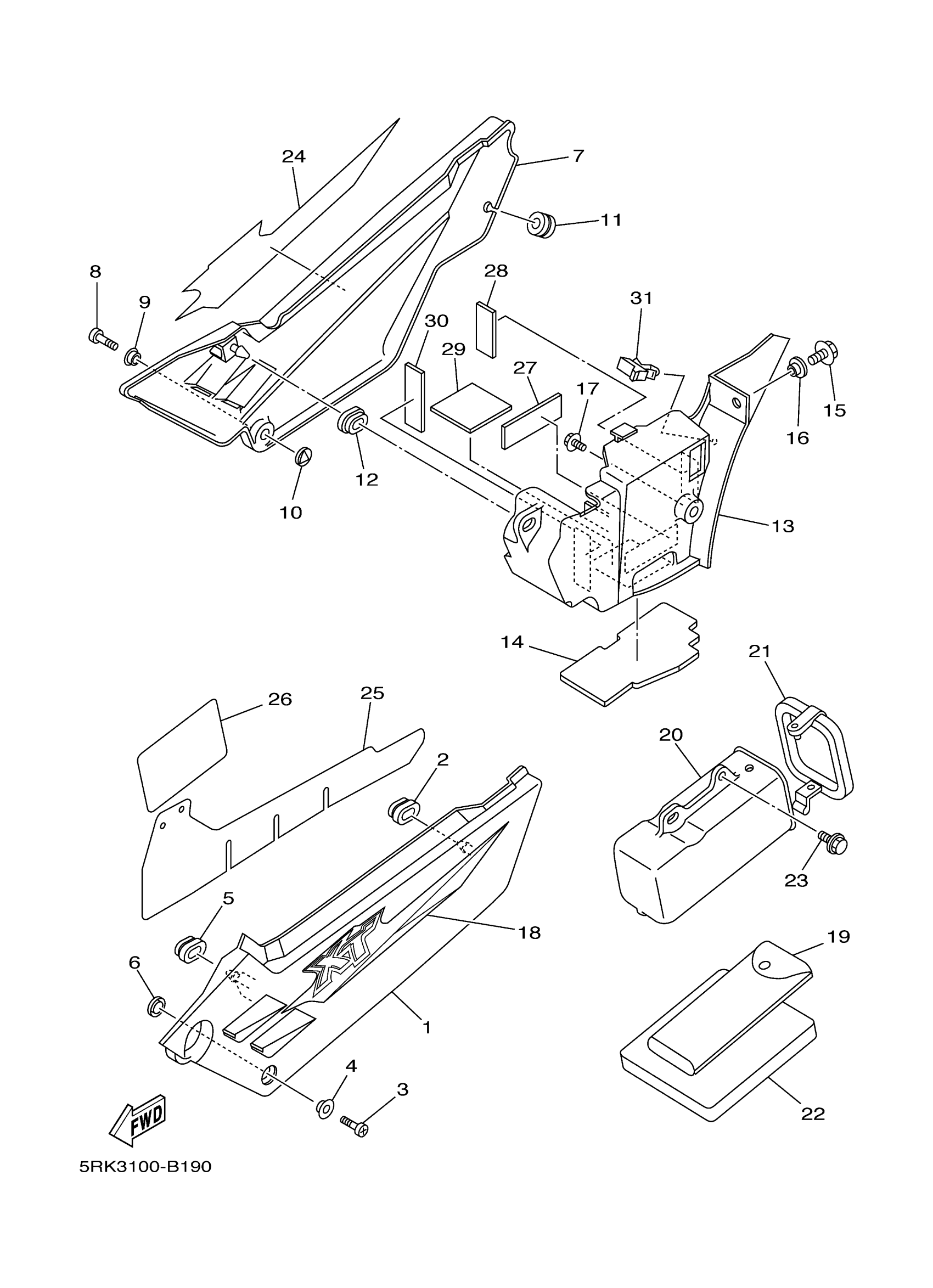

Find the part on the Side Cover diagram for your 2004 Yamaha XT225 CA (XT225SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha XT225 CA (XT225SC) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3RW-21711-10-00

1
Out of stock

2

GROMMET(41Y)

90480-01401-00

1
Out of stock

3

SCREW, PAN HEAD(3TJ)

98507-06016-00

1
Out of stock

4

COLLAR

90387-06107-00

1
Out of stock

5

GROMMET(41Y)

90480-01401-00

1
Out of stock

6

PLATE

4U5-2176E-00-00

1
Out of stock

7

COVER, SIDE 2

3RW-21721-10-00

1
Out of stock

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

1
Out of stock

9

COLLAR

90387-06107-00

1
Out of stock

10

PLATE

4U5-2176E-00-00

1
Out of stock

11

GROMMET (2H7)

90480-11224-00

1
Out of stock

12

GROMMET(41Y)

90480-01401-00

1
Out of stock

13

BOX

3RW-2177A-02-00

—
Out of stock

14

SEAL 3

5MP-2173M-00-00

1
Out of stock

15

BOLT, FLANGE

95817-06016-00

1
Out of stock

16

COLLAR (899 INTAKE)

90387-06500-00

—
Out of stock

17

BOLT, WITH WASHER(55K)

90119-06117-00

—
Out of stock

18

GRAPHIC 1

5RK-2173E-19-00

1
Out of stock

19

TOOL KIT

3RW-28100-01-00

1
Out of stock

20

BOX, TOOL

55V-28173-01-00

—
Out of stock

21

LID

55V-28185-00-00

—
Out of stock

22

DAMPER 5

3RW-28267-00-00

—
Out of stock

23

BOLT, WITH WASHER(8V7)

90119-06108-00

—
Out of stock

24

GRAPHIC 2

5RK-2173F-19-00

1
Out of stock

25

COVER

3RW-2177F-00-00

1
Out of stock

26

PLATE, EPA 2 (CALIFORNIA)

4BE-2179N-C0-00

1
Out of stock

26

PLATE, EPA 1 (NON CALIFORNIA)

4BE-2179V-C0-00

1
Out of stock

27

DAMPER 1

4GY-2214F-00-00

1
Out of stock

28

DAMPER, LOCATING 1

4X4-24181-00-00

—
Out of stock

29

DAMPER

5MP-21747-00-00

—
Out of stock

30

DAMPER

22F-2139X-00-00

—
Out of stock

31

CLAMP (1J7)

90464-16021-00

—
Out of stock
