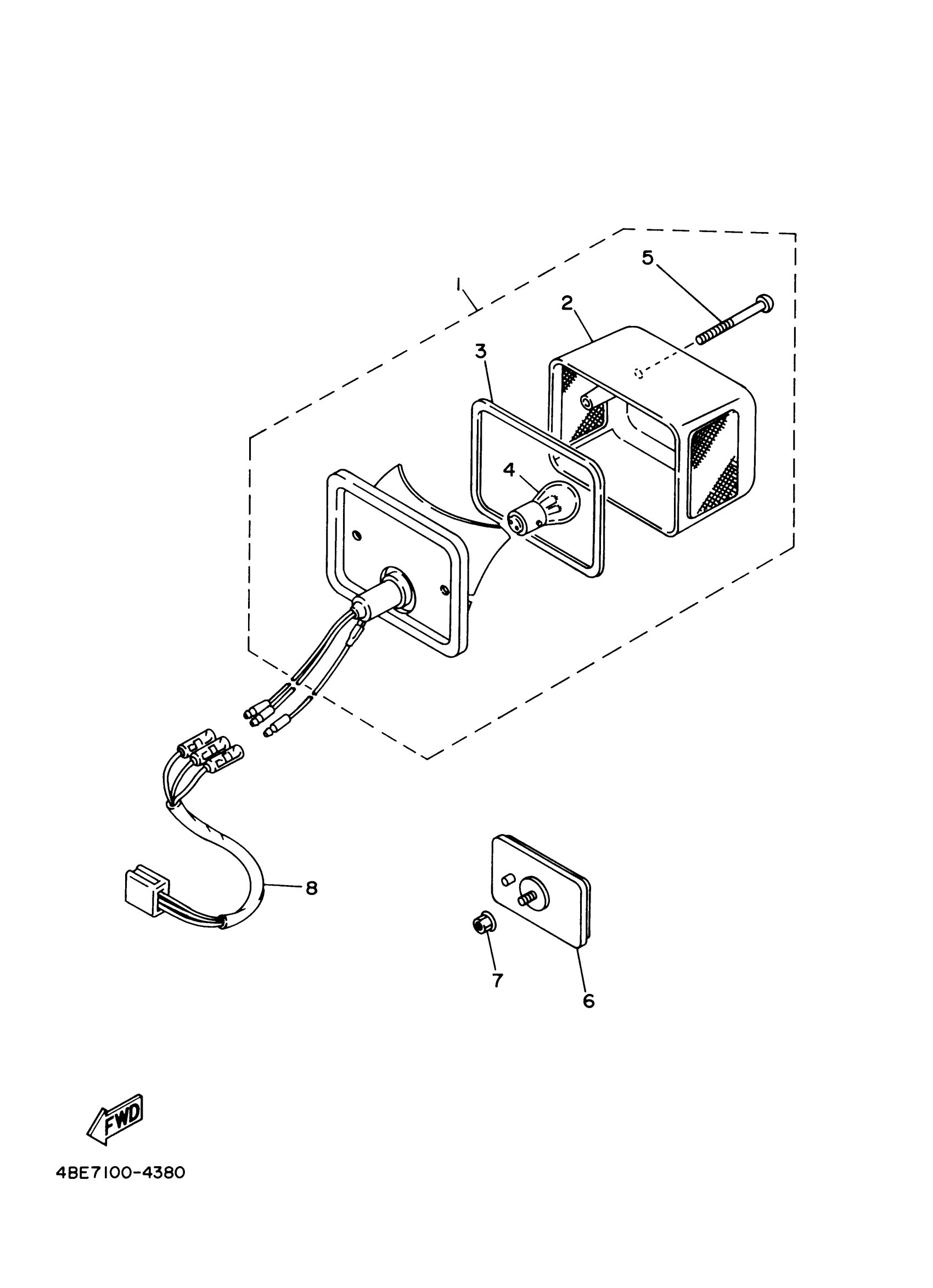

Yamaha XT225RC (XT225 CA) 5RK4 2003 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$91.19

2

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

3

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

4

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

5

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

6

REAR REFLECTOR ASSY

4KM-85130-00-00

$18.99

7

NUT, FLANGE(3GM)

95707-05500-00

$5.76

8

CORD, TAILLIGHT

3AV-84517-00-00

Unavailable
