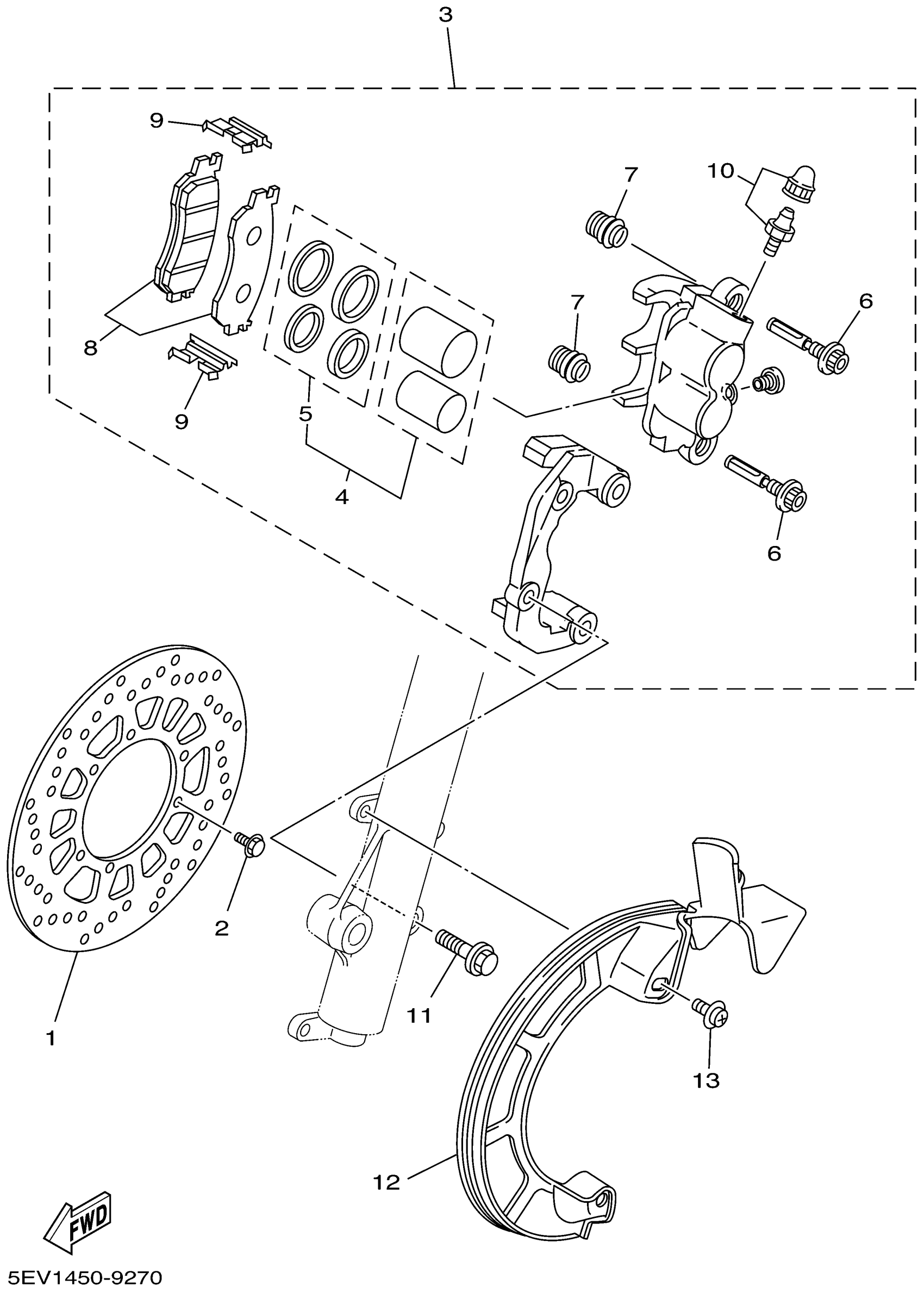

Yamaha XT225PC (XT225 CA) 5RK1 2002 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$76.75

2

BOLT, FLANGE

90105-06109-00

$5.87

3

CALIPER ASSY (LEFT)

4JG-2580T-01-00

$408.27

4

PISTON ASSY, CALIPER

4JG-25802-00-00

$58.74

5

CALIPER SEAL KIT

4JG-25803-00-00

$15.59

6

PIN, SLIDE

5JW-25914-10-00

$17.93

7

BOOT 2

4TT-25937-00-00

$13.33

8

BRAKE PAD KIT

3C5-25805-00-00

$39.24

9

SUPPORT, PAD

4TT-25919-00-00

$8.69

10

BLEED SCREW KIT

15B-W0048-00-00

$16.89

11

BOLT, WASHER BASED(3VD)

90105-10638-00

$5.80

12

COVER 1

3RW-25715-20-00

Unavailable

13

SCREW, WITH WASHER(3YR)

90159-06181-00

$2.90
