2002 Yamaha XT225 CA (XT225PC) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2002 Yamaha XT225 CA (XT225PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

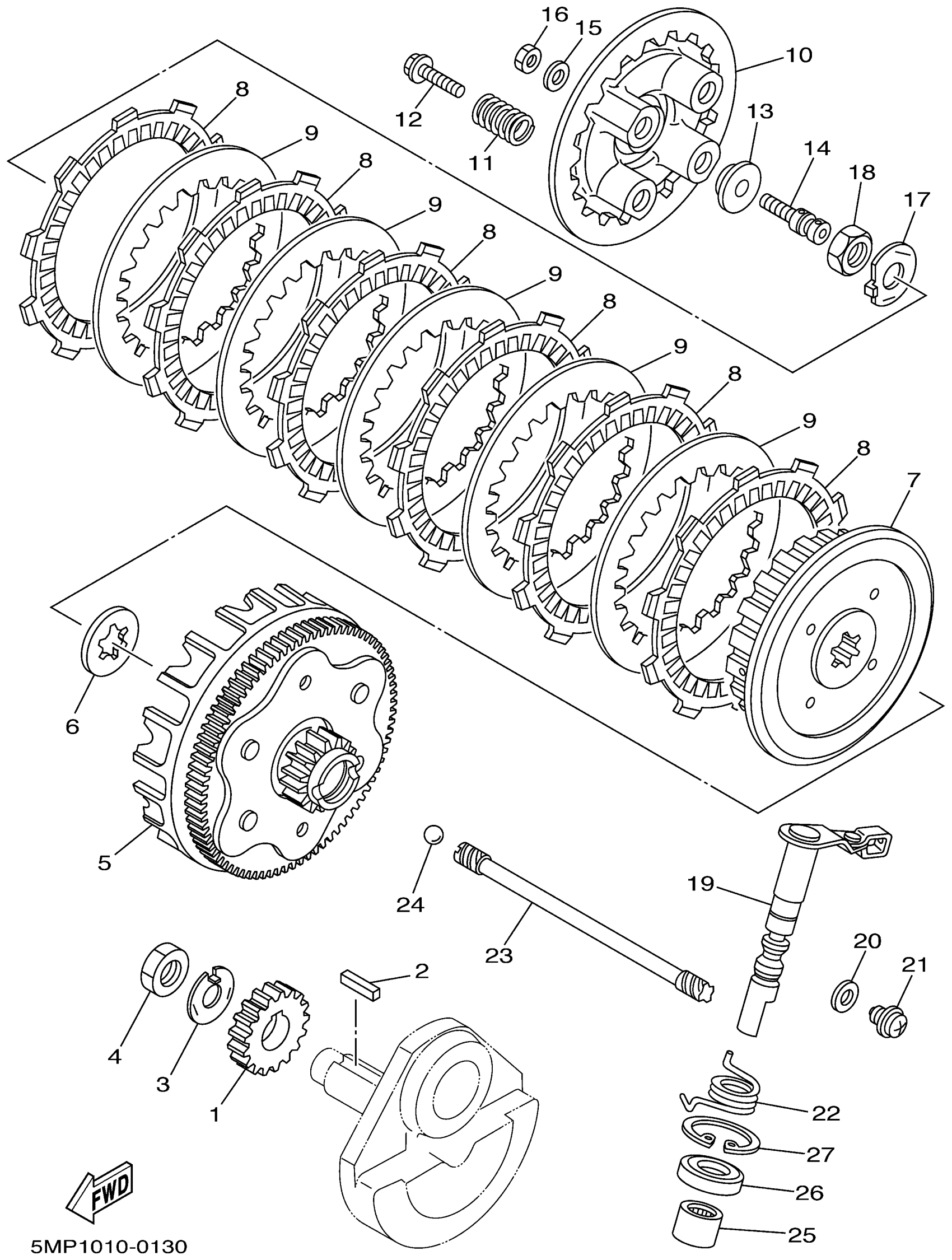

2002 Yamaha XT225 CA (XT225PC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—
Out of stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1
Out of stock

3

WASHER, LOCK (15Y)

90215-14205-00

1
Out of stock

4

NUT (5H0)

90170-14284-00

1
Out of stock

5

PRIMARY DRIVEN GEAR COMP.

1KH-16150-00-00

1
Out of stock

6

PLATE, THRUST 1

2LN-16154-00-00

1
Out of stock

7

BOSS, CLUTCH

5MP-16371-00-00

1
Out of stock

8

PLATE, FRICTION

5MP-16321-00-00

1
Out of stock

9

PLATE, CLUTCH 1

336-16324-10-00

1
Out of stock

10

PLATE, PRESSURE 1

5H0-16351-00-00

1
Out of stock

11

SPRING, COMPRESSION

90501-23700-00

1
Out of stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1
Out of stock

13

PLATE, PUSH

1W1-16358-01-00

1
Out of stock

14

ROD, PUSH 1

4JG-16356-00-00

—
Out of stock

15

WASHER(6TA)

92907-06200-00

1
Out of stock

16

NUT(6TA)

95317-06600-00

—
Out of stock

17

WASHER, LOCK (25G)

90215-14186-00

—
Out of stock

18

NUT (5H0)

90170-14284-00

1
Out of stock

19

PUSH LEVER ASSY

4JG-16380-01-00

—
Out of stock

20

GASKET

90430-08119-00

—
Out of stock

21

SCREW 425163430000

90149-08067-00

—
Out of stock

22

SPRING, TORSION

90508-18495-00

—
Out of stock

23

ROD, PUSH 2

5H0-16357-00-00

—
Out of stock

24

BALL

93505-16006-00

—
Out of stock

25

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

—
Out of stock

26

OIL SEAL (3Y1)

93102-14209-00

—
Out of stock

27

CIRCLIP (3Y1)

93420-28055-00

—
Out of stock
