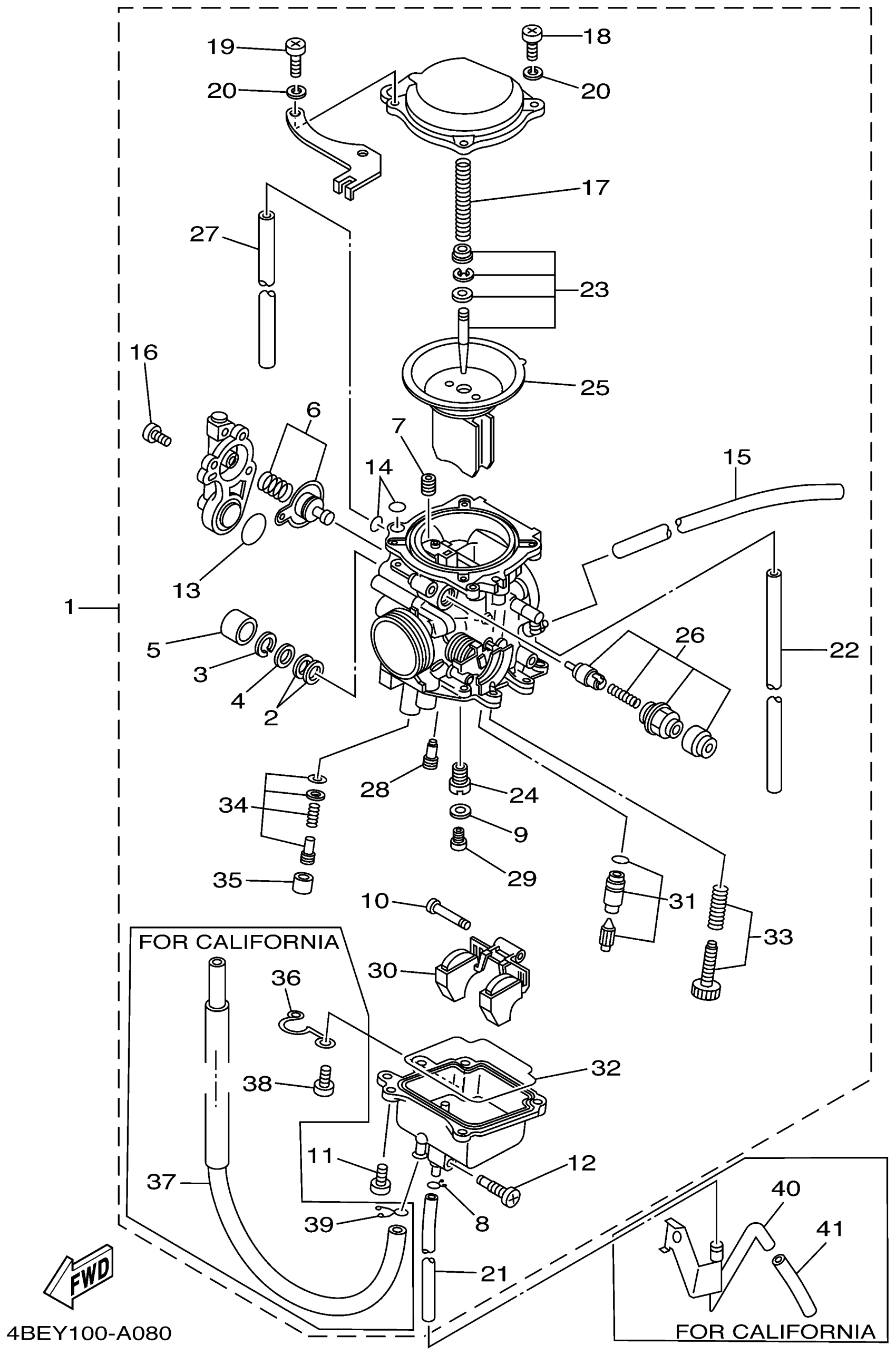

2002 Yamaha XT225 CA (XT225PC) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2002 Yamaha XT225 CA (XT225PC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha XT225 CA (XT225PC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

4BE-14901-20-00

1
Out of stock

1

CARBURETOR ASSY 1

4BE-14901-30-00

1
Out of stock

2

SEAL

2A2-14997-00-00

—
Out of stock

3

CLIP

812-14137-00-00

1
Out of stock

4

GASKET

22F-14126-00-00

—
Out of stock

5

CAP

36X-14169-00-00

—
Out of stock

6

DIAPHRAGM SET, 5

26H-1490H-00-00

1
Out of stock

7

PILOT JET, AIR (1.2)

2A2-14172-12-00

—
Out of stock

7

. PILOT JET, AIR (14)

2A2-14172-14-00

1
Out of stock

8

. CLIP, PIPE

22F-14139-00-00

1
Out of stock

9

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

10

PIN, FLOAT

537-14186-00-00

1
Out of stock

11

SCREW, PAN HEAD

98517-04012-00

1
Out of stock

11

SCREW, PAN HEAD

98517-04012-00

1
Out of stock

12

PLUG, DRAIN

12R-14191-00-00

1
Out of stock

13

O-RING (541)

558-14147-00-00

—
Out of stock

14

O-RING (371)

93210-04230-00

—
Out of stock

15

HOSE (L1500)

90445-084J0-00

—
Out of stock

15

PIPE

26H-14197-01-00

—
Out of stock

16

SCREW, PAN HEAD

98517-04012-00

1
Out of stock

17

SPRING, DIAPHRAGM

2LN-14933-00-00

—
Out of stock

18

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

19

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

20

WASHER(6TA)

92907-04100-00

—
Out of stock

21

PIPE 1

3XV-14348-20-00

—
Out of stock

21

PIPE 1

3XV-14348-20-00

—
Out of stock

22

PIPE

3UH-14193-00-00

—
Out of stock

23

NEEDLE SET

4BE-1490J-00-00

—
Out of stock

24

NOZZLE, MAIN

4BE-14141-31-00

—
Out of stock

25

DIAPHRAGM ASSY

2LN-14940-00-00

—
Out of stock

26

STARTER SET

3RW-1410A-10-00

—
Out of stock

27

HOSE (L1500)

90445-084J0-00

—
Out of stock

28

JET, PILOT (# 40)

4G0-14142-40-00

—
Out of stock

29

JET, MAIN (#125)

620-14231-25-A0

—
Out of stock

30

FLOAT

2VA-14185-00-00

—
Out of stock

31

NEEDLE VALVE SET

1UY-14107-20-00

—
Out of stock

32

O-RING

2LN-14147-00-00

—
Out of stock

33

. THROTTLE SCREW SET

4BE-14103-00-00

1
Out of stock

34

PILOT SCREW SET

4BE-14105-00-00

—
Out of stock

35

CAP

3F9-14118-00-00

—
Out of stock

36

. CLIP

4BE-14919-00-00

1
Out of stock

37

. HOSE

4BE-14987-00-00

1
Out of stock

38

SCREW, PAN HEAD(N15)

98507-04014-00

—
Out of stock

39

CLIP

90467-090A2-00

—
Out of stock

40

PIPE

4BE-14193-00-00

1
Out of stock

41

HOSE (L200)

90445-07176-00

—
Out of stock
