2001 Yamaha XT225 CA (XT225NC) Handle Switch Lever Diagram

← All diagrams

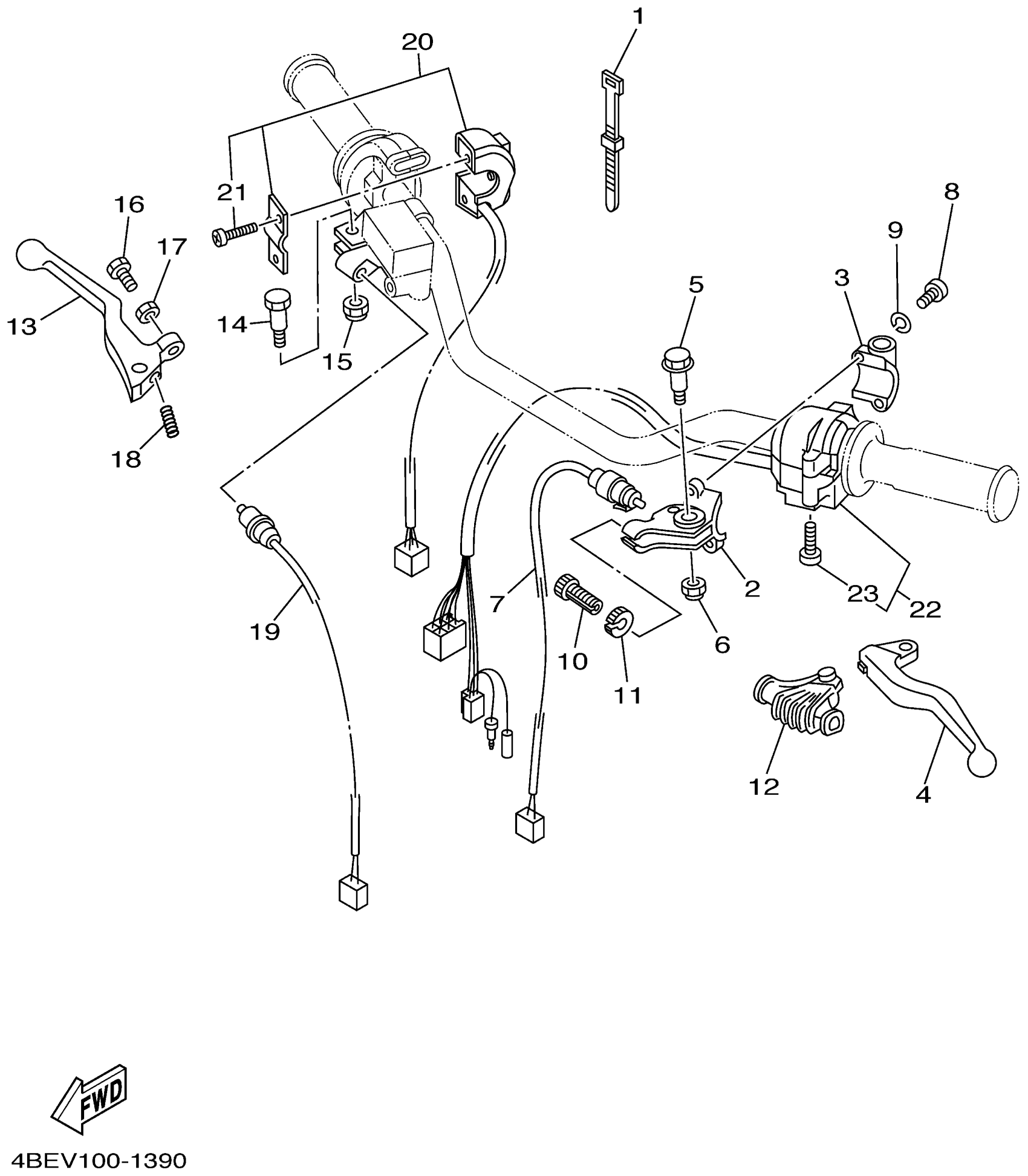

Find the part on the Handle Switch Lever diagram for your 2001 Yamaha XT225 CA (XT225NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha XT225 CA (XT225NC) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

2

HOLDER, LEVER 1

1LN-82911-00-00

1

$34.43

In stock

3

HOLDER, LEVER LOWER 1

33G-82913-01-00

1

$16.62

In stock

4

LEVER 1

23X-83912-02-00

1

$21.46

In stock

5

BOLT (2YK1)

90109-06799-00

1

$4.52

In stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

SWITCH

2UJ-82917-00-00

1

$51.43

In stock

8

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

9

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

10

BOLT

90123-08002-00

1

$8.93

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

13

LEVER 2

55Y-83922-02-00

1

$33.70

In stock

14

BOLT (4L0)

90109-06577-00

1

$5.38

In stock

15

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

16

SCREW (2L0)

90149-06131-00

—

$6.17

In stock

17

NUT HEXAGON 306839270000

90170-06010-00

—

$6.17

In stock

18

—

$6.17

In stock

19

FRONT STOP SWITCH ASSY

2UJ-83980-00-00

—

$38.44

In stock

20

SWITCH, HANDLE 2

5MP-83975-00-00

—
Out of stock

21

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

22

SWITCH, HANDLE 3

3FW-83973-01-00

1
Out of stock

23

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock
