2001 Yamaha XT225 CA (XT225NC) Front Fork Diagram

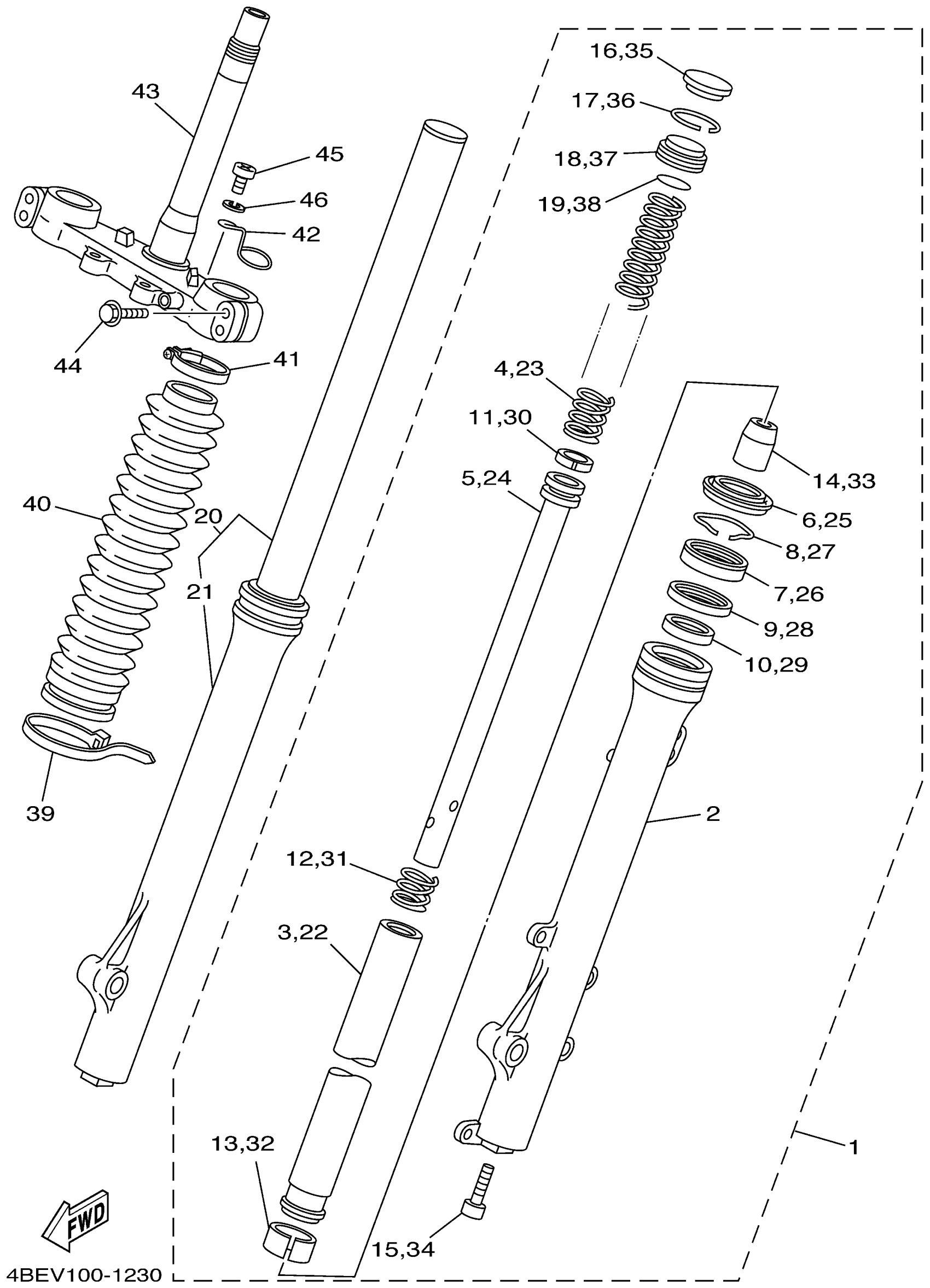

Find the part on the Front Fork diagram for your 2001 Yamaha XT225 CA (XT225NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L.H)
4BE-23102-10-00
2
TUBE, OUTER (LEFT)
4JG-23126-00-00
3
. INNER TUBE COMP 1
3RW-23110-01-00
4
. SPRING
3RW-23351-00-00
5
. PISTON, FRONT FORK
4JG-23171-01-00
11
RING, PISTON
4JG-23157-00-00
14
. SPACER, OIL LOCK
4JG-23166-00-00
19
O-RING(1HX)
93210-24709-00
20
FRONT FORK ASSY (R.H)
4BE-23103-10-00
21
. TUBE, OUTER (RIGHT)
34X-23136-00-38
22
. INNER TUBE COMP 1
3RW-23110-01-00
23
. SPRING
3RW-23351-00-00
24
. PISTON, FRONT FORK
4JG-23171-01-00
30
RING, PISTON
4JG-23157-00-00
33
. SPACER, OIL LOCK
4JG-23166-00-00
38
O-RING(1HX)
93210-24709-00
40
BOOT
4JG-23191-20-00
43
UNDER BRACKET COMP.
1RF-23340-00-00
46
WASHER, SPRING
92907-06100-00
