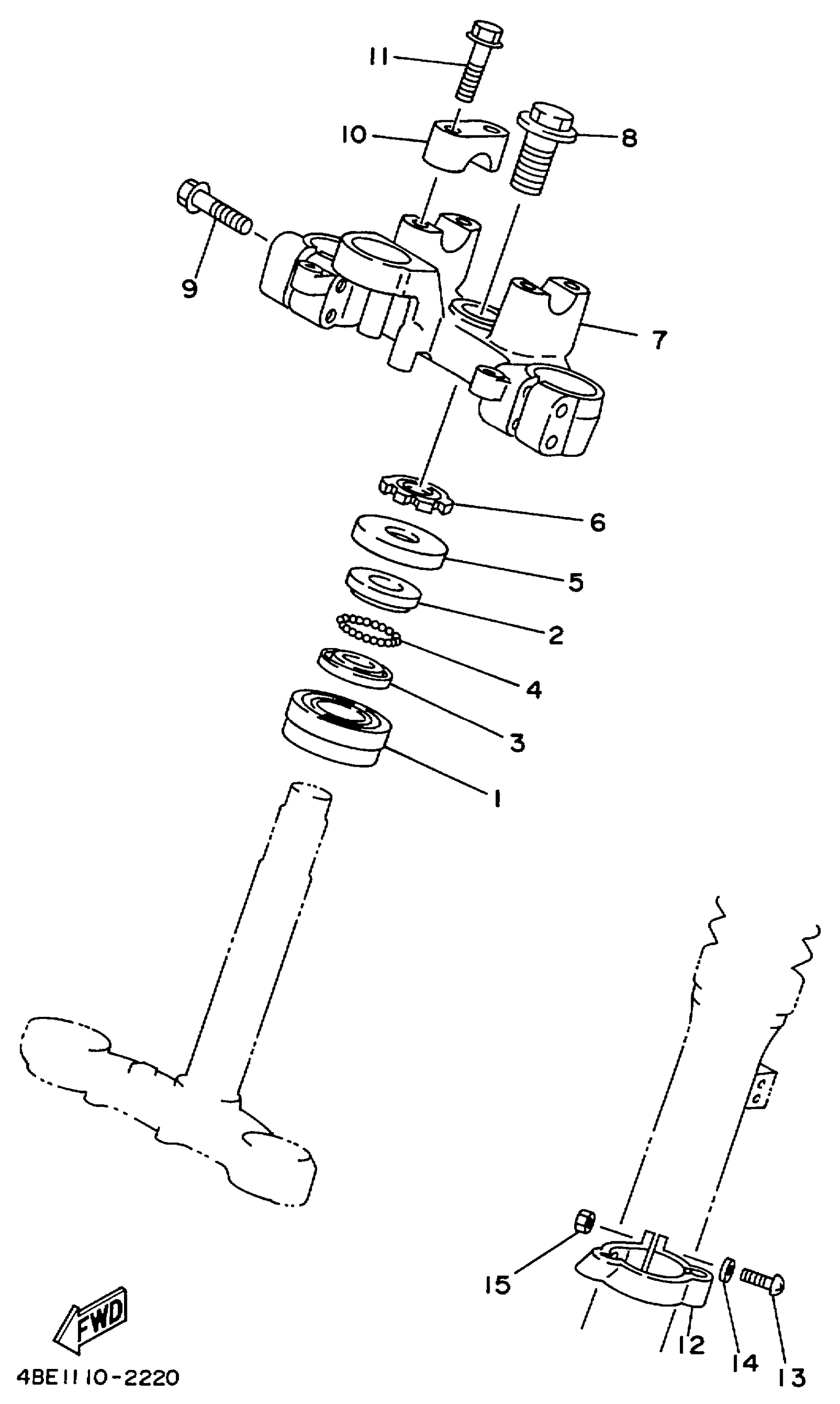

Yamaha XT225LC (SEROW CA) 4BENC 1999 STEERING Diagram

#

Description
Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$56.93

2

RACE, BALL 1

BP2-23411-00-00

$7.83

3

RACE, BALL 2

BP2-23412-00-00

$5.33

4

BALL

93503-16003-00

$1.96

5

COVER BALL RACE

10V-23416-01-00

Unavailable

6

NUT

90179-25004-00

$19.41

7

CROWN, HANDLE

4BE-23435-10-00

Unavailable

8

BOLT, WASHER BASED(34X)

90105-14329-00

$10.77

9

BOLT, FLANGE(4MY)

95027-08040-00

$5.75

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$20.20

11

BOLT, FLANGE

95817-08035-00

$6.22

12

HOLDER, CABLE

34X-23317-00-00

$6.09

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

14

WASHER(1RW)

92907-05600-00

$0.77

15

NUT, HEXAGON

95317-05600-00

$1.05
