1999 Yamaha Serow CA (XT225LC) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1999 Yamaha Serow CA (XT225LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

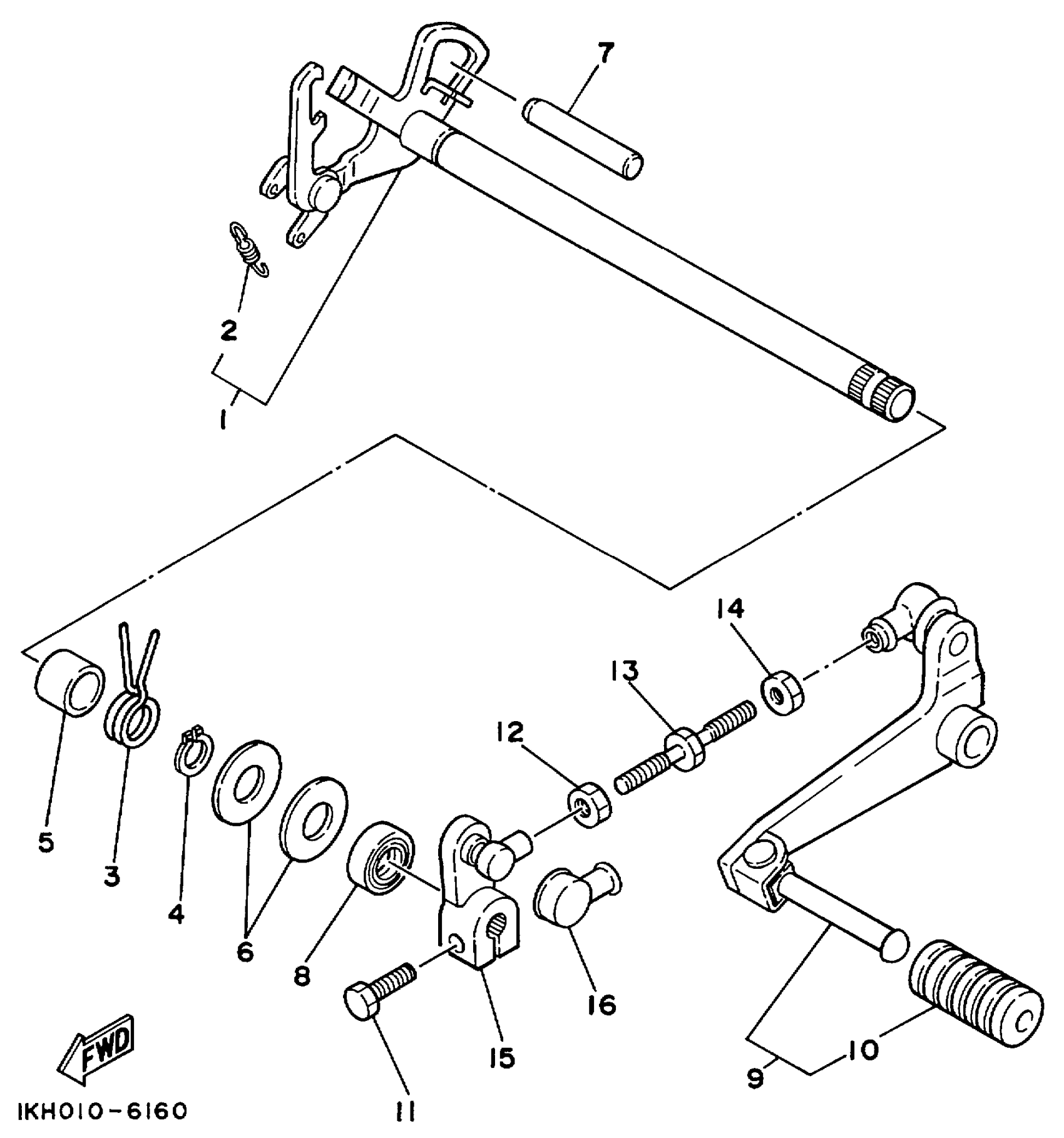

1999 Yamaha Serow CA (XT225LC) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSY

5H0-18120-02-00

1
Out of stock

2

SPRING, TENSION (4H7)

90506-08227-00

1
Out of stock

3

SPRING, TORSION(1KH)

90508-26705-00

1
Out of stock

4

CIRCLIP

99006-10600-00

1
Out of stock

5

COLLAR

90387-12033-00

1
Out of stock

6

WASHER

90201-12588-00

1
Out of stock

7

PIN, DOWEL (4H7)

93608-50158-00

1
Out of stock

8

OIL SEAL (12X22X5-371)

93102-12106-00

1
Out of stock

9

SHIFT PEDAL ASSY

1KH-18110-00-00

—
Out of stock

10

COVER, CHANGE PEDAL

1W6-18113-00-00

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1
Out of stock

12

NUT(JN5)

95317-06700-00

1
Out of stock

13

ROD, SHIFT

16G-18115-00-00

1
Out of stock

14

NUT (2H9)

90170-06228-00

1
Out of stock

15

ARM, SHIFT

1KH-18112-00-00

1
Out of stock

16

COVER, DUST

2H9-18154-00-00

—
Out of stock
