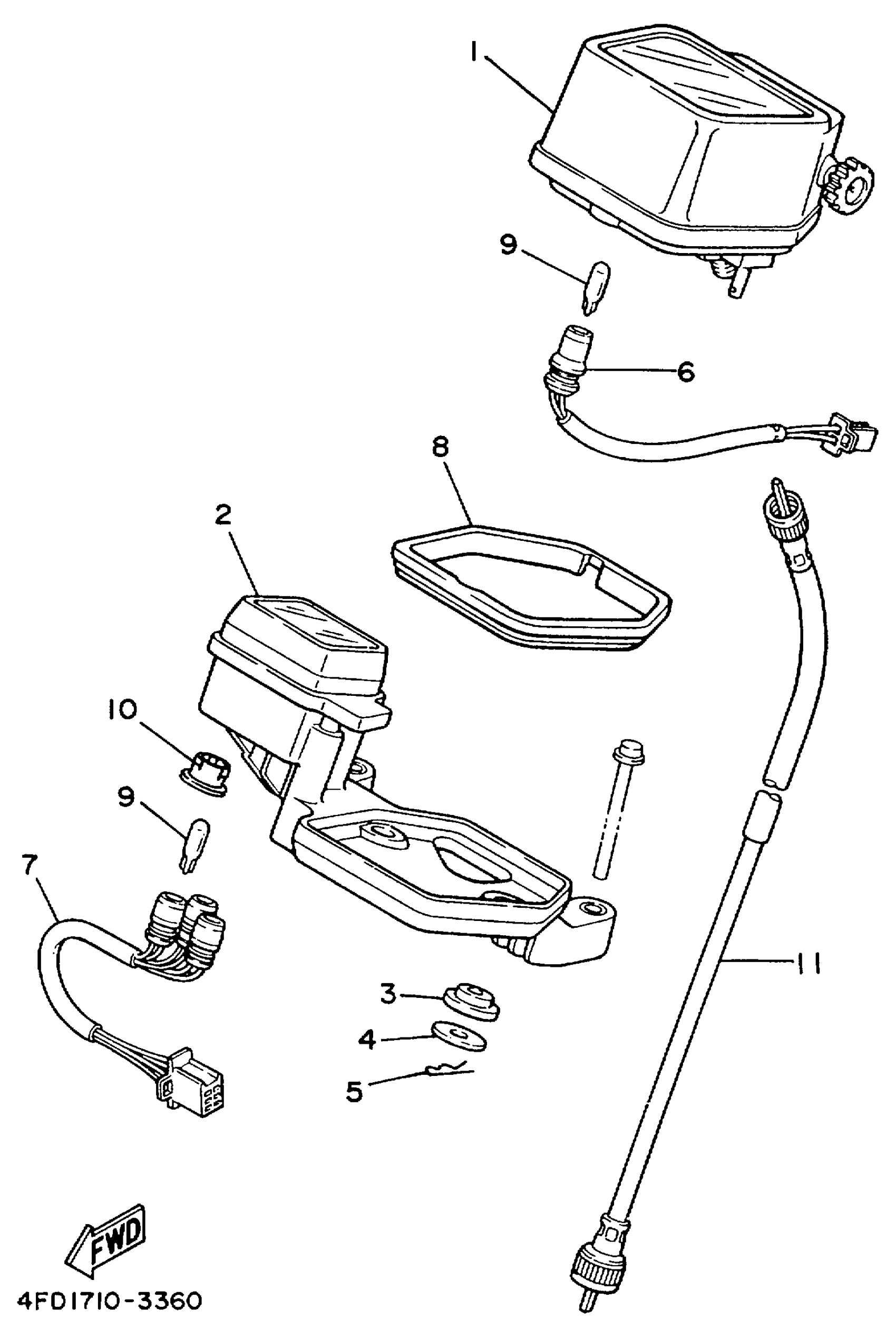

Yamaha XT225LC (SEROW CA) 4BENC 1999 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

4BE-83580-00-00

Unavailable

2

BRACKET, METER

4BE-8355A-00-00

Unavailable

3

DAMPER 2

1M1-83526-01-00

$3.52

4

WASHER PLATE 829771780000

90201-05033-00

$6.62

5

CLIP (156-83525-00)

90468-10050-00

$2.16

6

SOCKET CORD ASY

3EB-83520-00-00

Unavailable

7

SOCKET CORD ASSY

3YP-83520-00-00

Unavailable

8

DAMPER

5Y1-83513-00-00

Unavailable

9

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

10

. PLUG, BLIND

4BE-8352K-00-00

Unavailable

11

SPEEDOMETER CABLE ASSY

1RH-83550-02-00

$35.65
