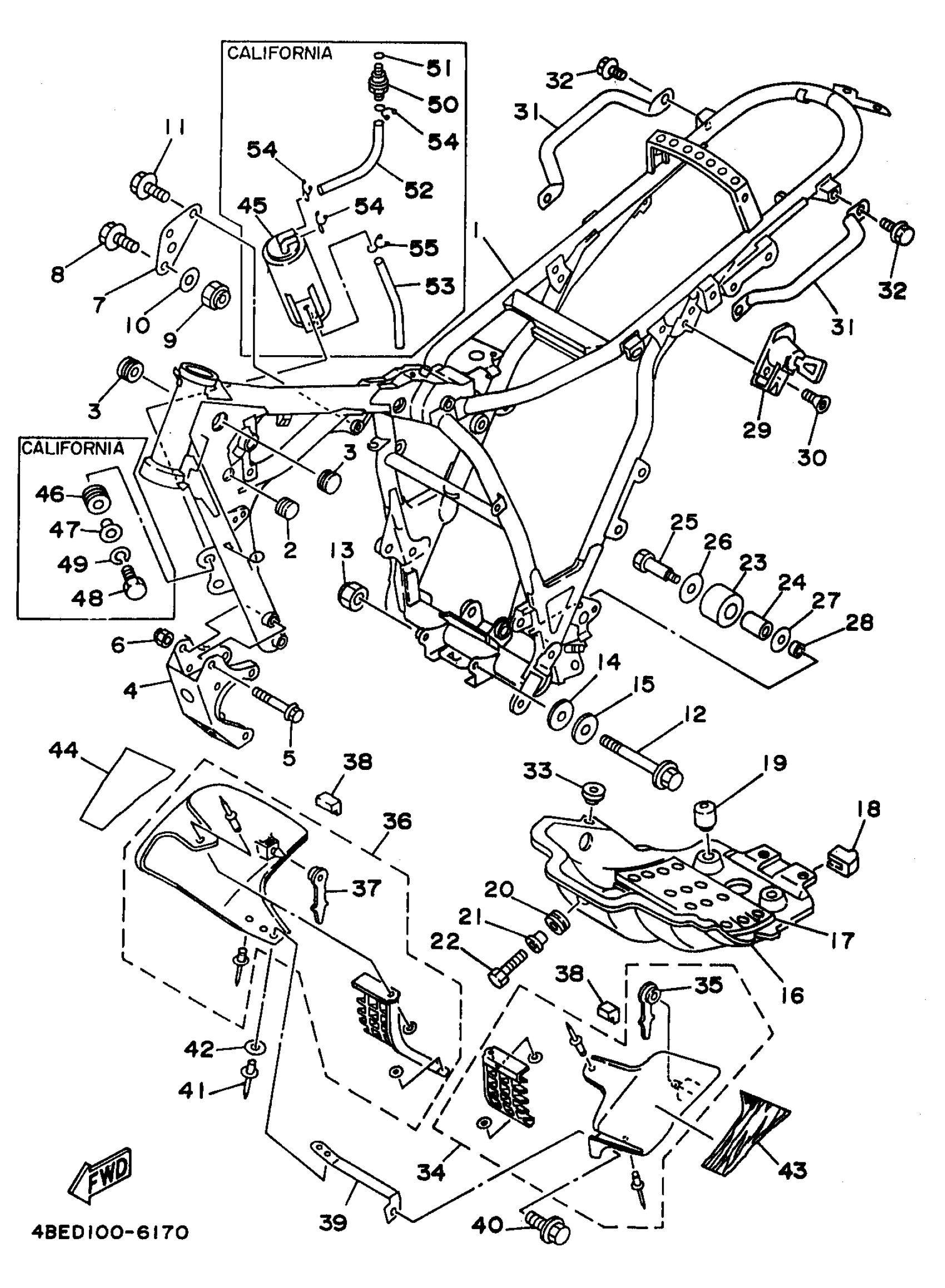

1998 Yamaha Serow CA (XT225KC) Frame Diagram
Find the part on the Frame diagram for your 1998 Yamaha Serow CA (XT225KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME COMP.
4BE-21110-22-35
1
FRAME COMP.
4FD-21110-12-35
2
PLUG(2GH)
90338-15202-00
3
PLUG
90338-24260-00
4
STAY, ENGINE 3
3RW-21316-01-35
4
STAY, ENGINE 3
4BE-21316-00-35
5
BOLT, WASHER BASED(4JG)
90105-08721-00
7
STAY, ENGINE 2
1KH-21315-01-00
16
PROTECTOR, ENGINE
4VW-21471-00-00
17
DAMPER, RUBBER 1
1KH-21485-00-00
18
DAMPER, RUBBER 1
36X-21485-00-00
23
TENSIONER
30X-22178-00-00
27
WASHER, PLATE(8AT)
90201-081R9-00
29
HELMET HANGER ASSY
5H0-21308-01-00
30
SCREW, COUNTERSUNK (21V)
90151-06025-00
31
HANDLE, STANDING
4JG-21165-20-00
33
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
34
SCOOP COMP. AIR 1
3RW-W2131-10-00
35
GROMMET(1KH)
90480-14448-00
36
SCOOP COMP. AIR 2
4BE-W2132-00-00
37
GROMMET(1KH)
90480-14448-00
39
BRACKET, COVER
4BE-2139T-00-00
41
RIVET,BLIND
90267-40080-00
43
GRAPHIC, FUEL TANK 1
4BE-24244-40-00
44
GRAPHIC, FUEL TANK 2
4BE-24245-40-00
47
COLLAR(52E)
90387-063G3-00
49
WASHER, SPRING
92907-06100-00
55
CLIP(1JH)
90467-11106-00
