1998 Yamaha Serow CA (XT225KC) Carburetor Diagram

← All diagrams

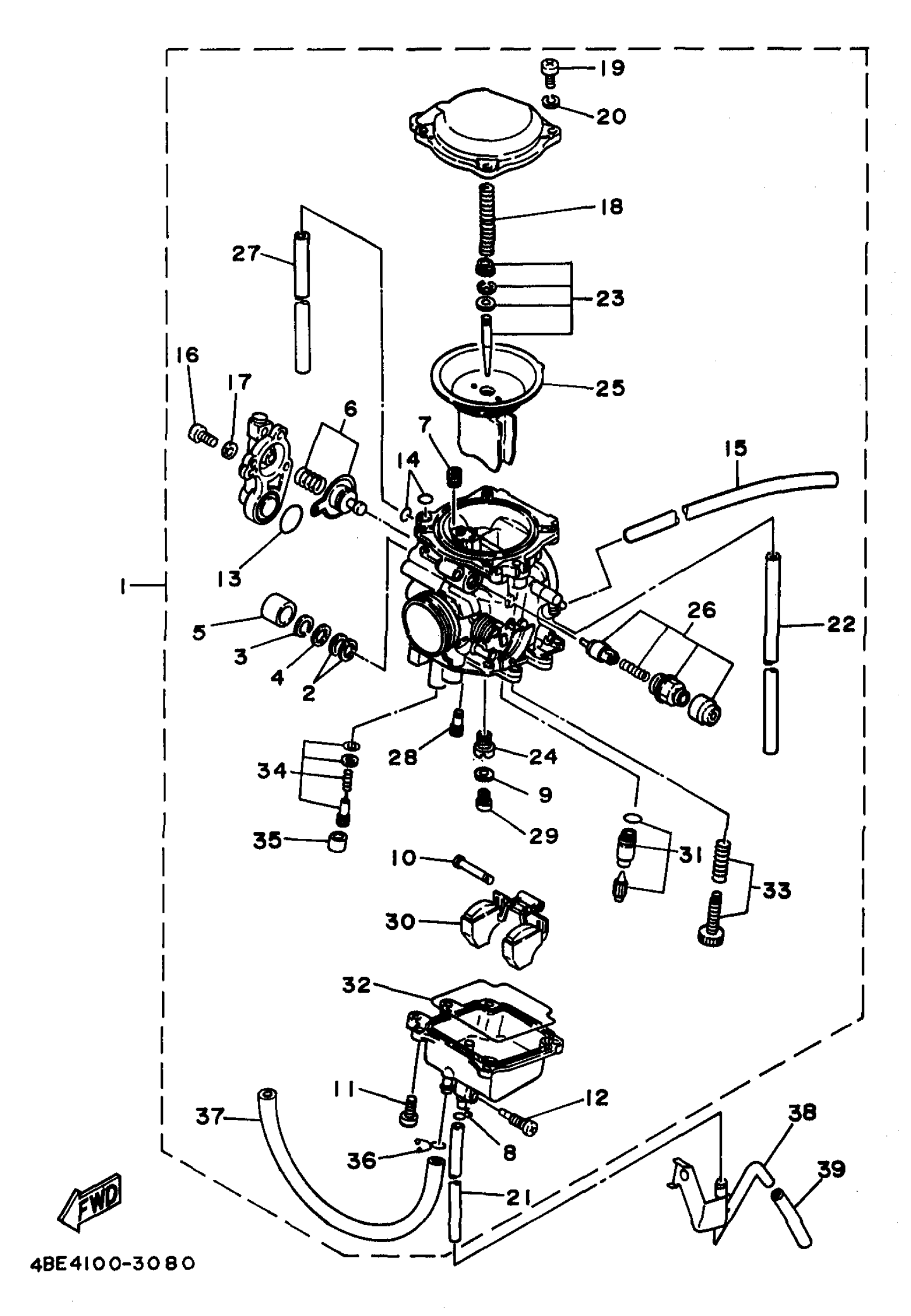

Find the part on the Carburetor diagram for your 1998 Yamaha Serow CA (XT225KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Serow CA (XT225KC) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

4BE-14901-01-00

1
Out of stock

1

CARBURETOR ASSY 1

4BE-14901-11-00

—
Out of stock

2

SEAL

2A2-14997-00-00

—
Out of stock

3

CLIP

812-14137-00-00

1
Out of stock

4

GASKET

22F-14126-00-00

—
Out of stock

5

CAP

36X-14169-00-00

—
Out of stock

6

DIAPHRAGM SET, 5

26H-1490H-00-00

1
Out of stock

7

PILOT JET, AIR (1.2)

2A2-14172-12-00

—
Out of stock

8

. CLIP, PIPE

22F-14139-00-00

1

$5.77

In stock

9

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

10

PIN, FLOAT

537-14186-00-00

1
Out of stock

11

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

12

PLUG, DRAIN

12R-14191-00-00

1

$14.25

In stock

13

O-RING (541)

558-14147-00-00

1
Out of stock

14

O-RING (371)

93210-04230-00

1
Out of stock

15

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

15

PIPE

26H-14197-01-00

—

$34.32

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

18

SPRING, DIAPHRAGM

2LN-14933-00-00

—
Out of stock

19

SCREW, PAN HEAD(JG1)

98507-04008-00

—

$1.45

In stock

20

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

21

PIPE

3UH-14193-00-00

—
Out of stock

21

PIPE 1

3XV-14348-20-00

—

$17.31

In stock

22

PIPE

55X-14196-00-00

—

$17.41

In stock

23

NEEDLE SET

4BE-1490J-00-00

—
Out of stock

24

NOZZLE, MAIN

4BE-14141-31-00

—
Out of stock

25

DIAPHRAGM ASSY

2LN-14940-00-00

—
Out of stock

26

STARTER SET

3RW-1410A-10-00

—
Out of stock

27

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

28

JET, PILOT (# 40)

4G0-14142-40-00

—

$9.80

In stock

29

JET, MAIN (#130)

620-14231-26-A0

—
Out of stock

30

FLOAT

2VA-14185-00-00

—
Out of stock

30

FLOAT

2VA-14185-00-00

—
Out of stock

31

NEEDLE VALVE SET

1UY-14107-20-00

—
Out of stock

32

O-RING

2LN-14147-00-00

—
Out of stock

33

THROTTLE SCREW SET

4CW-14103-00-00

—
Out of stock

34

PILOT SCREW SET

4BE-14105-00-00

—
Out of stock

35

CAP

3F9-14118-00-00

—

$7.51

In stock

36

CLIP

90467-090A2-00

—

$2.51

In stock

37

HOSE (L1040)

90445-10MA9-00

—

$58.64

In stock

38

PIPE

4BE-14193-00-00

1
Out of stock

39

HOSE (L200)

90445-07176-00

—

$7.11

In stock
