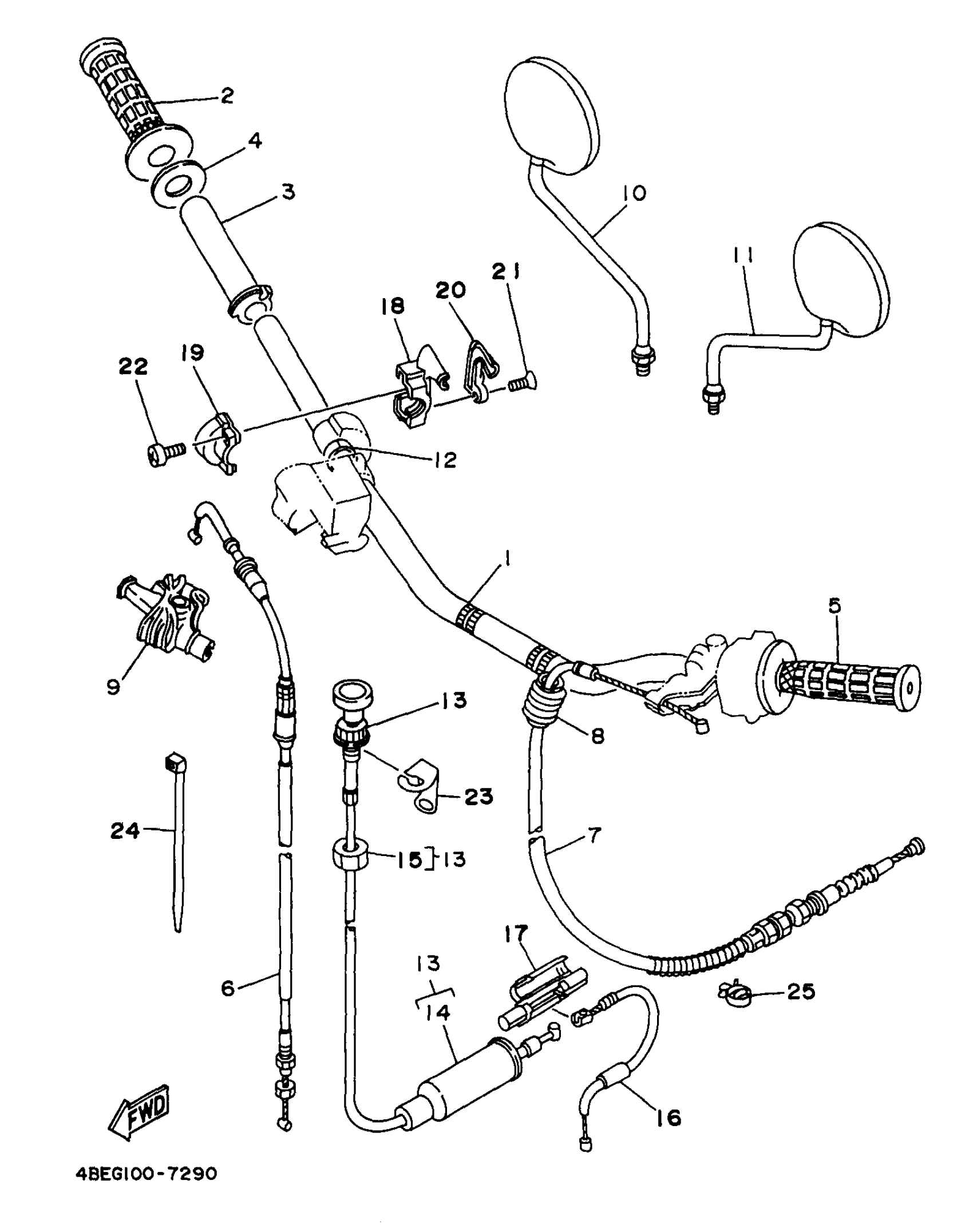

Find the part on the Steering Handle Cable diagram for your 1997 Yamaha Serow CA (XT225JC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Serow CA (XT225JC) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4BE-26111-01-00

—

$52.45

In stock

2

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

3

TUBE, THROTTLE GUIDE

434-26243-12-00

1
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

6

CABLE, THROTTLE 1

3RW-26311-10-00

1

$68.17

In stock

7

CABLE, CLUTCH

4JG-26335-01-00

1

$50.43

In stock

8

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

9

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

10

1

$45.60

In stock

11

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

12

COLLAR (2H7)

90387-22660-00

1

$7.75

In stock

13

STARTER CABLE ASSY

2TY-F6330-00-00

1
Out of stock

14

CAP, RUBBER

1YU-26329-00-00

—
Out of stock

15

NUT

1VJ-26333-00-00

1

$6.43

In stock

16

CABLE, STARTER 2

3RW-26334-00-00

—

$28.22

In stock

17

CONNECTOR, CABLE

53L-26261-01-00

—
Out of stock

18

CAP, GRIP UPPER

38V-26281-00-98

—
Out of stock

19

CAP, GRIP UNDER (516)

493-26282-00-98

—
Out of stock

20

CAP, WIRE

38V-2628H-00-00

—
Out of stock

21

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

22

SCREW, PAN HEAD(JJ6)

98507-05016-00

—

$1.40

In stock

23

HOLDER, WIRE

4BE-2637G-10-00

1
Out of stock

24

BAND

1UA-82591-00-00

—
Out of stock

25

CLAMP(4GY)

90464-10193-00

—
Out of stock
