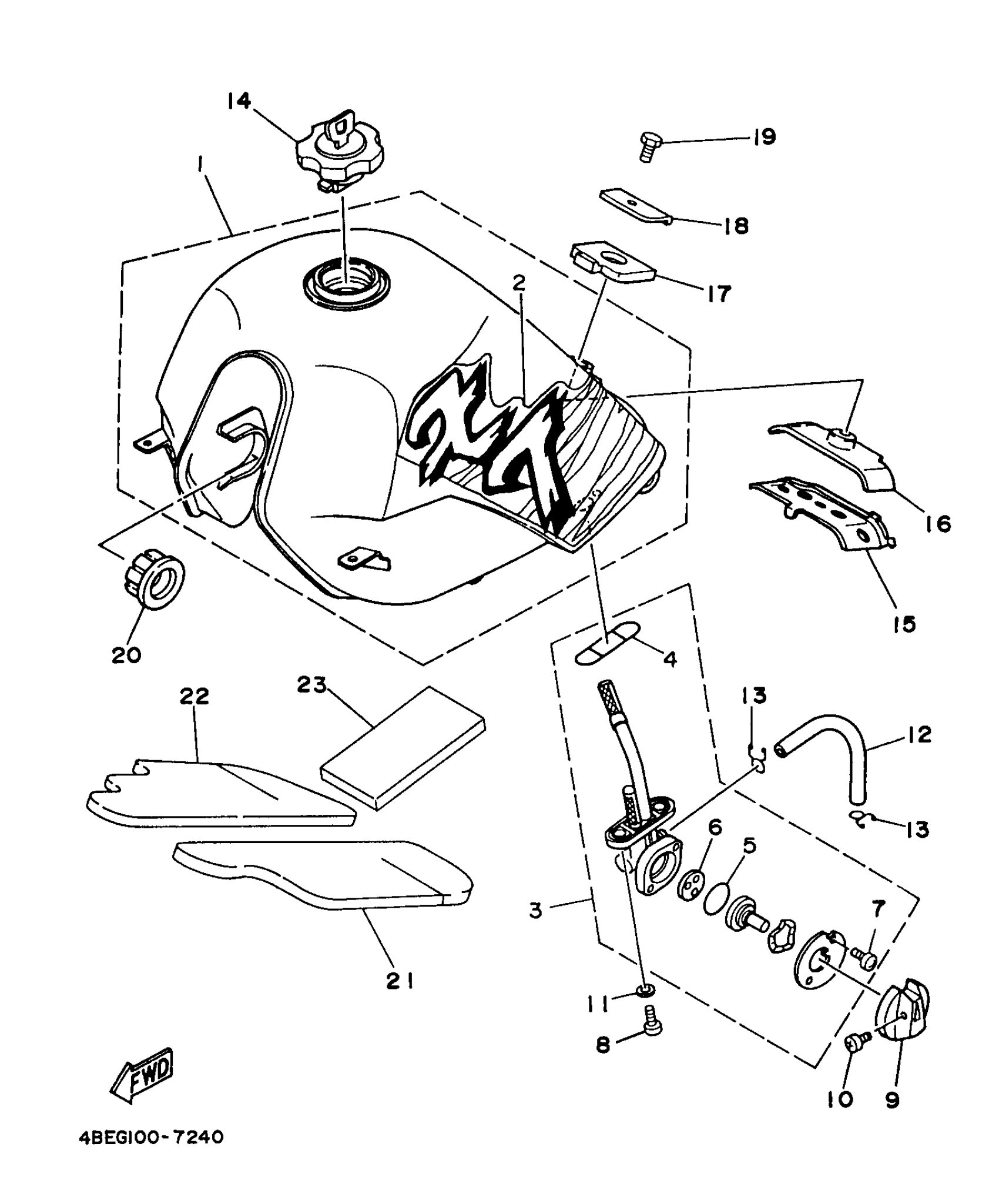

Yamaha XT225JC (SEROW CA) 1997 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (WHITE)

3RW-24110-00-W4

Unavailable

1

FUEL TANK COMP. (WHITE)

4BE-24110-00-07

Unavailable

2

. GRAPHIC SET

4BE-24240-30-00

Unavailable

3

FUEL COCK ASSY 1

3RW-24500-01-00

$68.48

4

O-RING

4X8-24512-00-00

$6.25

5

SEAL, COCK

3AJ-24534-01-00

$8.69

6

VALVE PACKING

3AC-24523-00-00

$10.82

7

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

8

SCREW 256241430000

90149-06011-00

$1.56

9

LEVER, COCK

1YH-F4524-00-00

Unavailable

10

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

11

WASHER, PLATE(3MB)

90202-05187-00

$1.01

12

HOSE (L200)

90445-10752-00

$3.62

13

CLIP

90467-090A2-00

$2.47

14

CAP ASSY

11H-24602-10-00

$94.33

14

CAP ASSY

51K-24602-10-00

Unavailable

15

WASHER, SPECIAL

1KH-24187-00-00

Unavailable

16

DAMPER, LOCATING 2

1KH-24182-00-00

Unavailable

17

DAMPER, LOCATING 3

30X-24183-01-00

Unavailable

18

WASHER, SPECIAL

30X-24186-01-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable

20

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

21

DAMPER, PLATE 1

3RW-2414H-00-00

Unavailable

22

DAMPER, PLATE 2

3RW-2414J-00-00

Unavailable

23

DAMPER

11H-21747-00-00

Unavailable
