1997 Yamaha Serow CA (XT225JC) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1997 Yamaha Serow CA (XT225JC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

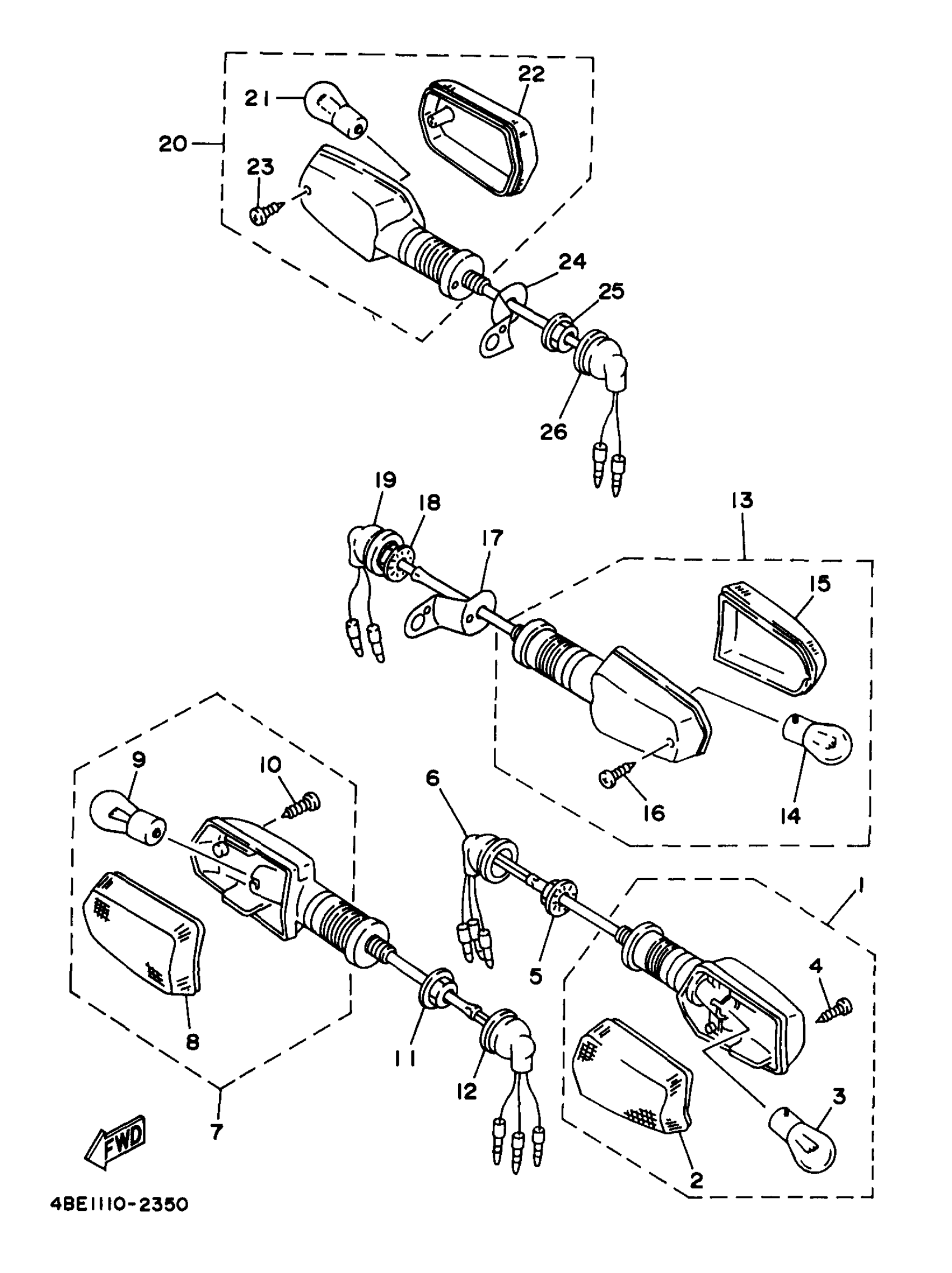

1997 Yamaha Serow CA (XT225JC) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

1

$125.69

In stock

2

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

3

1

$10.02

In stock

4

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

5

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

6

CAP

18G-83365-00-00

1

$17.88

In stock

7

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

1

$127.45

In stock

8

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

9

1

$10.02

In stock

9

BULB, FLASHER (12V-21W)

306-83311-40-00

1

$10.78

In stock

10

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

11

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

12

CAP

18G-83365-00-00

1

$17.88

In stock

13

REAR FLASHER LIGHT ASSY 1

4BE-83330-00-00

1
Out of stock

14

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

14

BULB, FLASHER (12V-21W)

306-83311-40-00

1

$10.78

In stock

15

LENS, FLASHER

51L-83332-01-00

—

$8.63

In stock

16

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

17

STAY, FLASHER 1

4BE-83368-10-00

—
Out of stock

18

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

19

CAP

10V-83365-01-00

—

$2.83

In stock

20

REAR FLASHER LIGHT ASSY 2

4BE-83340-00-00

—

$87.11

In stock

21

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

22

LENS, FLASHER 2

51L-83342-01-00

1

$7.14

In stock

23

SCREW, PAN TAP.2

97707-40520-00

1

$7.14

In stock

24

STAY, FLASHER 2

4BE-83369-10-00

—
Out of stock

25

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

26

CAP

10V-83365-01-00

—

$2.83

In stock
