1993 Yamaha Serow CA (XT225EC) Exhaust Diagram

← All diagrams

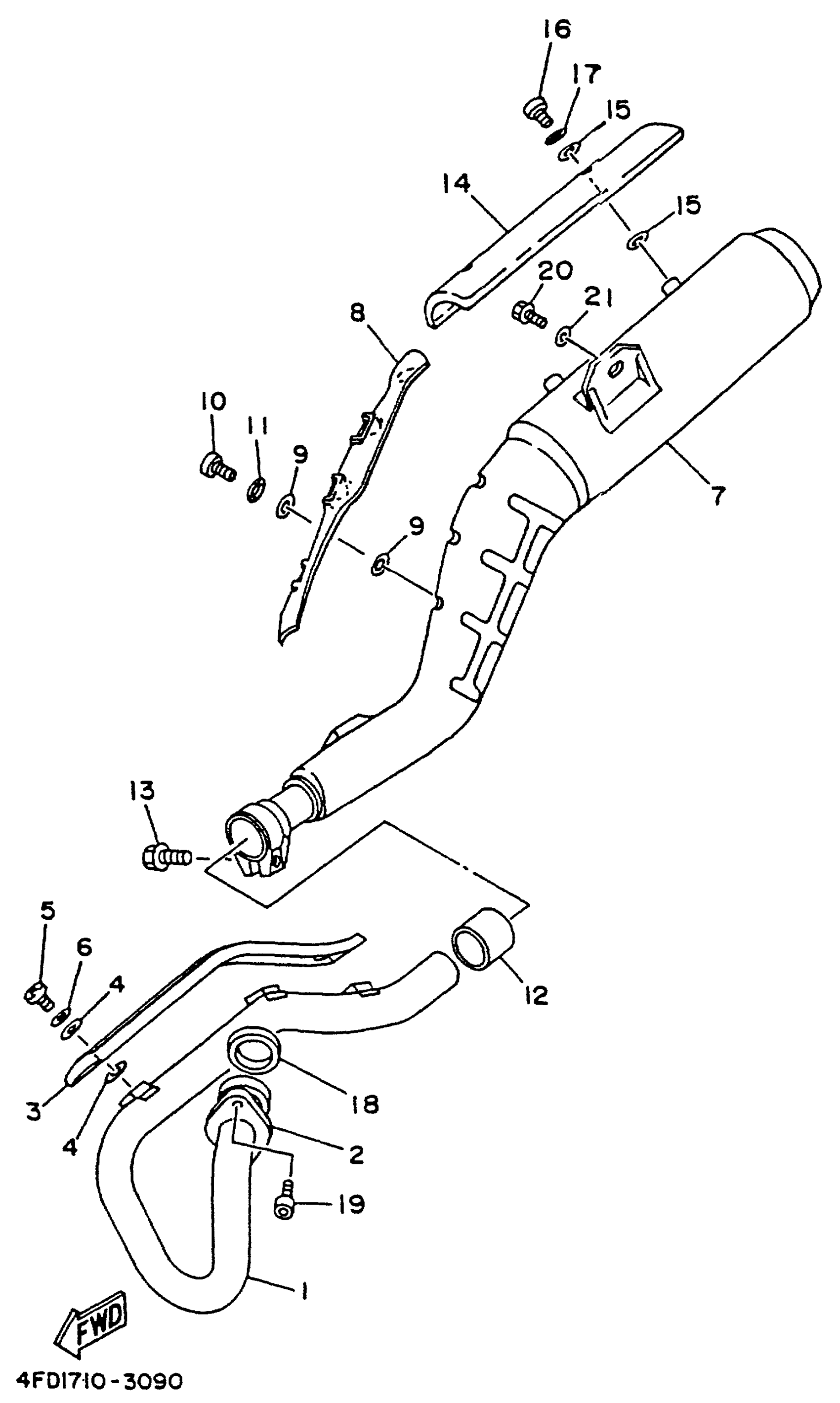

Find the part on the Exhaust diagram for your 1993 Yamaha Serow CA (XT225EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Serow CA (XT225EC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

3RW-14611-00-00

1
Out of stock

2

NUT, RING

5H0-14612-01-00

1
Out of stock

3

PROTECTOR, EXHAUST PIPE

3RW-14628-00-00

—
Out of stock

4

WASHER, PROTECTOR

4BD-14766-00-00

1
Out of stock

5

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

6

WASHER, WAVE(3RW)

90206-06090-00

1
Out of stock

7

MUFFLER 1

4BE-14711-00-00

1
Out of stock

8

PROTECTOR, MUFFLER 2

1KH-14728-01-00

1
Out of stock

9

WASHER, PROTECTOR

4BD-14766-00-00

1
Out of stock

10

SCREW, BINDING

98907-06010-00

1
Out of stock

11

WASHER, WAVE(3RW)

90206-06090-00

1
Out of stock

12

GASKET, MUFFLER

3YF-14714-00-00

1
Out of stock

13

BOLT (71X) =9502608025)

99999-01790-00

1
Out of stock

14

PROTECTOR, MUFFLER 2

3TB-14728-00-00

—
Out of stock

15

WASHER, PROTECTOR

4BD-14766-00-00

1
Out of stock

16

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

17

WASHER, WAVE(3RW)

90206-06090-00

1
Out of stock

18

GASKET, EXHAUST PIPE

4BE-14613-00-00

—
Out of stock

19

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock

20

BOLT(2KF)

90109-085E2-00

—
Out of stock

21

WASHER (853)

90201-08326-00

—
Out of stock
