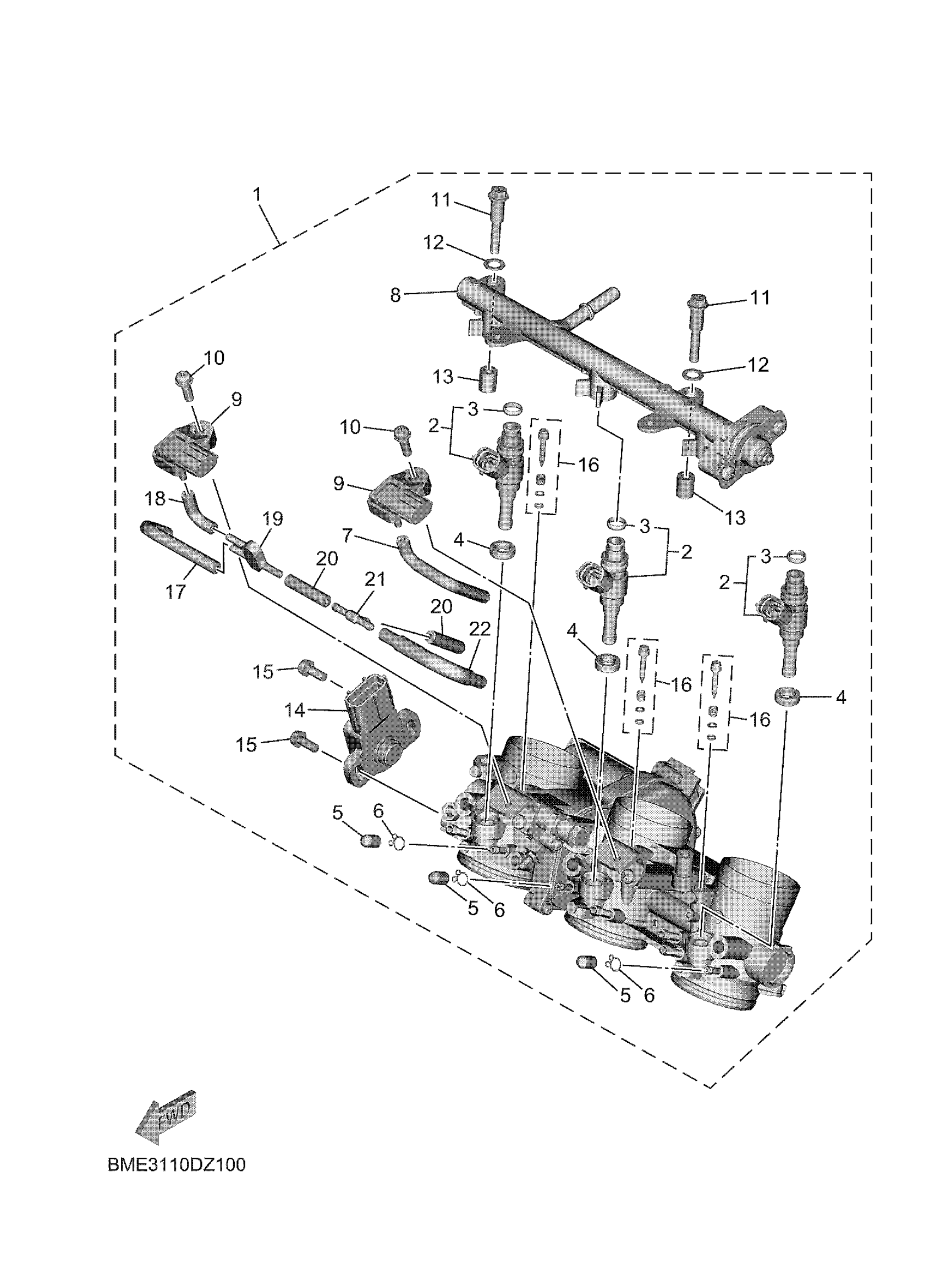

Yamaha XSR900SW (XSR900) D656 2025 INTAKE Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BME-13750-10-00

$1,317.99

2

INJECTOR

B7N-13761-00-00

Unavailable

3

O-RING

5PS-14147-00-00

$8.68

4

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

5

CAP

895-14169-00-00

$3.73

6

CLIP, PIPE

8A7-14139-00-00

$6.34

7

. HOSE, VACUUM SENSING 4

68V-13533-00-00

$10.70

8

PIPE INLET ASSEMBL

B7N-13930-00-00

$206.92

9

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

10

SCREW

2C0-14216-00-00

$2.98

11

BOLT 1

8HG-13573-00-00

Unavailable

12

WASHER

8GL-13571-00-00

$3.14

13

COLLAR

8HG-14534-00-00

$26.61

14

THROTTLE SENSOR AS

B3L-85885-01-00

$88.17

15

SCREW

8CC-14216-10-00

$6.66

16

PILOT SCREW SET

2C0-14105-00-00

Unavailable

17

. PIPE 1

5FL-14348-00-00

$15.86

18

PIPE

8FP-14349-00-00

Unavailable

19

NIPPLE

3XV-14251-00-00

Unavailable

20

PIPE 1

5FL-14348-10-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

$13.59

22

HOSE, VACUUM SENSI

B7N-13542-00-00

Unavailable
