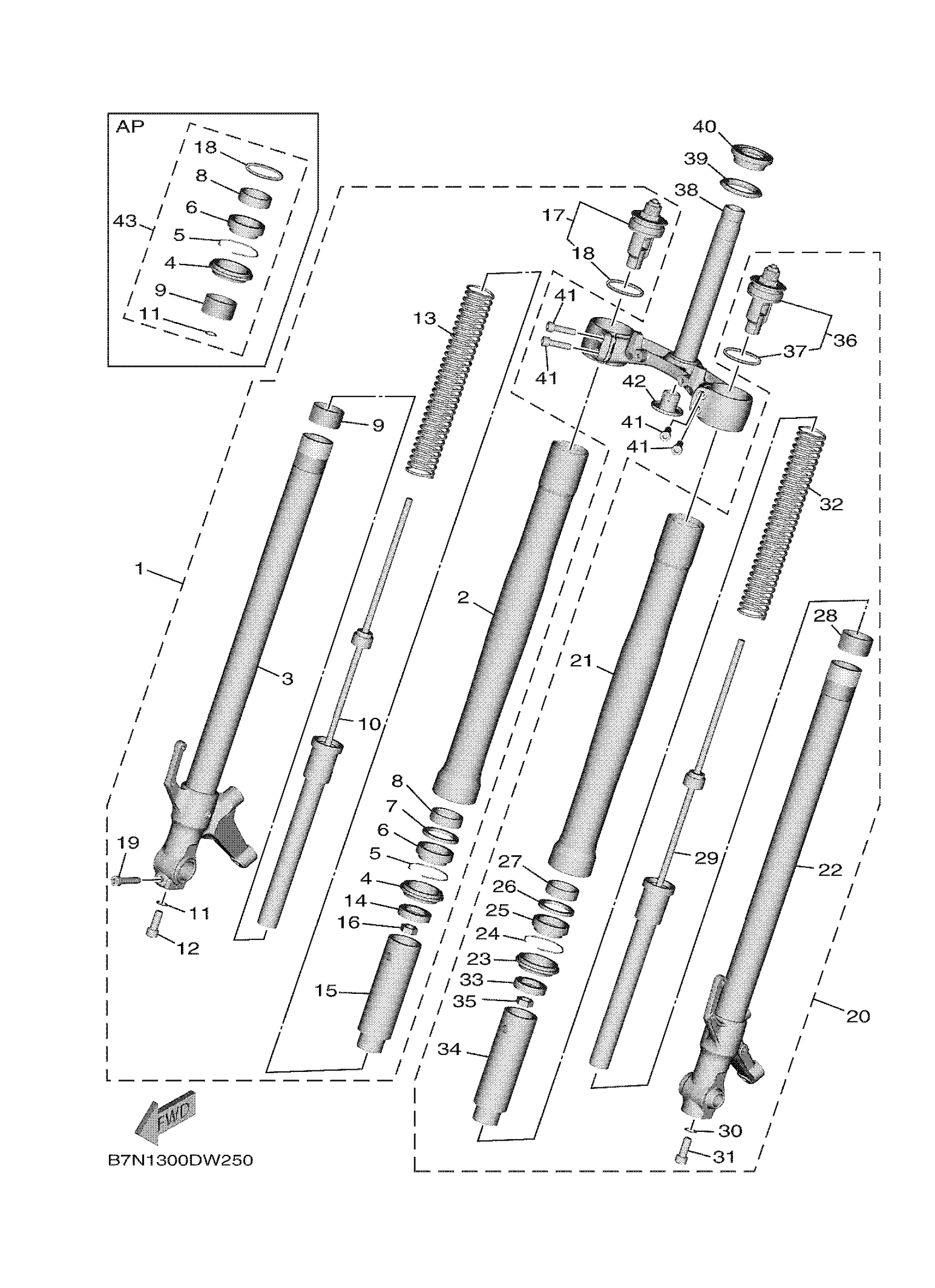

Yamaha XSR900RW (XSR900) BEAF 2024 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R

BEA-23103-01-00

Unavailable

2

TUBE, OUTER (L.H)

B7N-23126-10-00

Unavailable

3

INNER TUBE COMP.2

BME-23120-00-00

Unavailable

4

SEAL, DUST

4EB-23144-00-00

$18.18

5

CLIP, OIL SEAL

26H-23156-00-00

$6.17

6

OIL SEAL

4EB-23145-01-00

$22.64

7

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

8

METAL, SLIDE 1

1RC-23125-00-00

$11.56

9

METAL, SLIDE

4FM-23171-40-00

$19.02

10

CYLINDER COMP., FR

BEA-23170-10-00

Unavailable

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

BEA-23141-00-00

Unavailable

14

WASHER

5VY-12277-00-00

$10.20

15

SPACER

5VY-23118-00-00

Unavailable

16

NUT

3LC-23357-00-00

Unavailable

17

BOLT, CAP

BEA-23111-11-00

Unavailable

18

O-RING

3XJ-23147-L2-00

Unavailable

19

BOLT,SOCKET

91314-08040-00

Unavailable

20

FRONT FORK ASSY (L

BEA-23102-01-00

Unavailable

21

TUBE, OUTER (L.H)

B7N-23126-10-00

Unavailable

22

INNER TUBE COMP.1

B7N-23110-01-00

Unavailable

23

SEAL, DUST

4EB-23144-00-00

$18.18

24

CLIP, OIL SEAL

26H-23156-00-00

$6.17

25

OIL SEAL

4EB-23145-01-00

$22.64

26

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

27

METAL, SLIDE 1

1RC-23125-00-00

$11.56

28

METAL, SLIDE

4FM-23171-40-00

$19.02

29

CYLINDER COMP., FR

BEA-23170-00-00

Unavailable

30

GASKET

509-23158-L0-00

$13.39

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

32

SPRING, FRONT FORK

BEA-23141-00-00

Unavailable

33

WASHER

5VY-12277-00-00

$10.20

34

SPACER

5VY-23118-00-00

Unavailable

35

NUT

3LC-23357-00-00

Unavailable

36

BOLT, CAP

BEA-23111-01-00

Unavailable

37

O-RING

3XJ-23147-L2-00

Unavailable

38

UNDER BRACKET COMP

B7N-23340-00-00

Unavailable

39

SEAL, STEERING

3FV-23462-00-00

Unavailable

40

BEARING

93399-99957-00

Unavailable

41

BOLT,SOCKET

91314-08030-00

Unavailable

42

COVER, LOWER 1

4KM-23123-01-00

Unavailable

43

FORK SEAL KIT (ONE FORK)

BEA-W003B-00-00

Unavailable
