2016 Yamaha XSR900 (XSR900GS) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2016 Yamaha XSR900 (XSR900GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

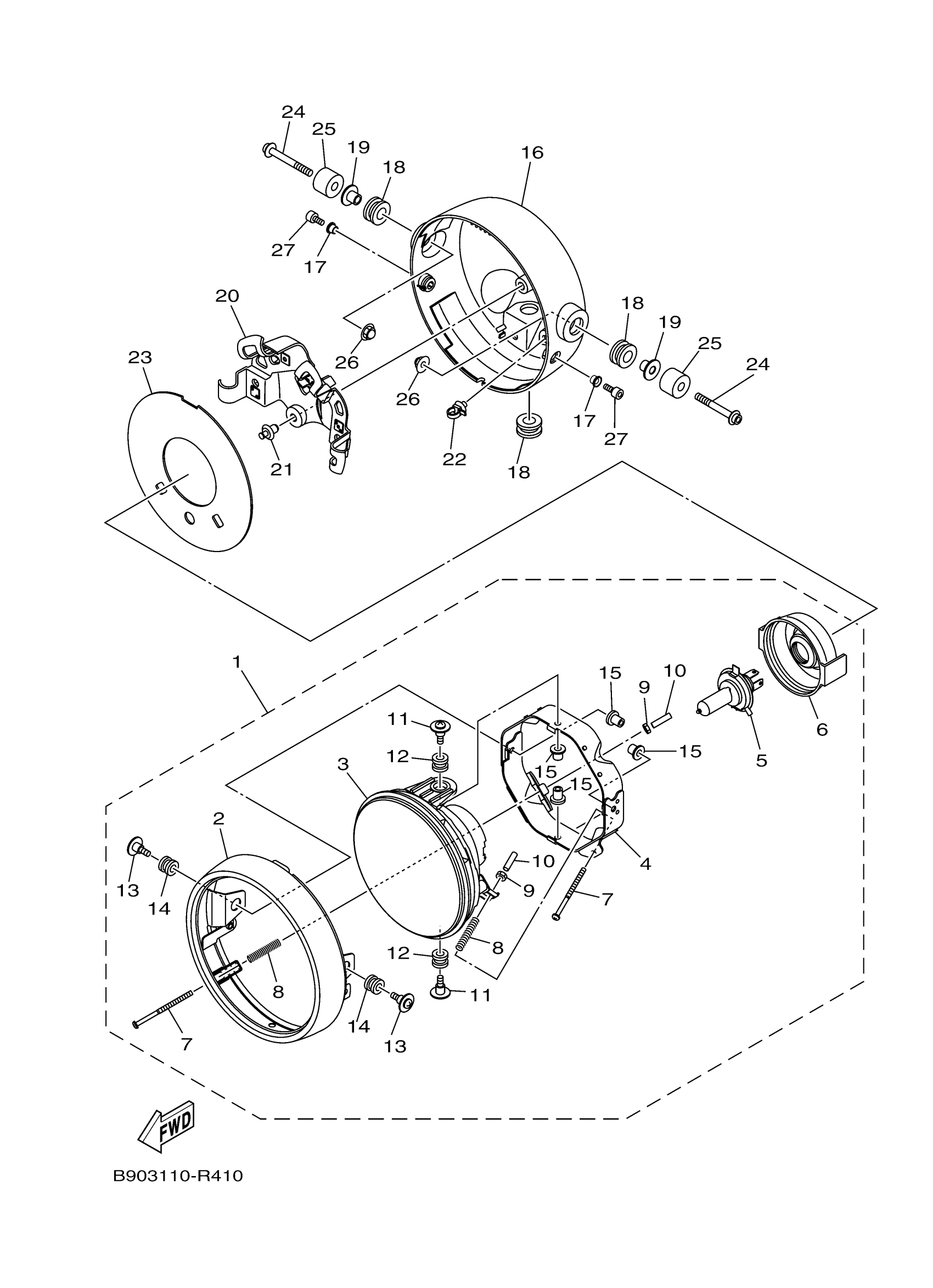

2016 Yamaha XSR900 (XSR900GS) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASS

B34-84310-21-00

1

$308.03

In stock

2

RIM, HEADLIGHT

B34-84315-00-00

1

$185.52

In stock

3

LENS ASSY

5PX-84320-00-00

1

$184.20

In stock

4

STAY, HEADLIGHT 1

5PX-84318-00-00

1

$59.90

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

COVER, SOCKET

5PX-84397-00-00

1

$34.05

In stock

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

1

$6.38

In stock

8

SPRING, SCREW

5PX-84332-00-00

1

$6.38

In stock

9

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

10

CAP,1

5PX-84385-00-00

1

$6.38

In stock

11

SCREW, RIM FITTING

5PX-84325-00-00

1

$6.43

In stock

12

GROMMET

5PX-84354-00-00

1

$4.91

In stock

13

SCREW, RIM FITTING

5PX-84125-00-00

1

$6.43

In stock

14

GROMMET

5PX-84352-00-00

1

$5.93

In stock

15

NUT

5PX-84317-00-00

1

$10.20

In stock

16

BODY, HEADLIGHT

B90-84311-00-P0

—
Out of stock

17

COLLAR, BODY FITTING

4DN-84145-00-00

—

$1.71

In stock

18

GROMMET

90480-16014-00

—

$1.58

In stock

19

COLLAR(36Y)

90387-067K8-00

—

$5.18

In stock

20

HOLDER

B90-8431U-00-00

—

$12.60

In stock

21

RIVET(4PH)

90269-07077-00

—

$6.92

In stock

22

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

23

COVER

2PN-84396-00-00

—

$11.72

In stock

24

BOLT, HEXAGON SOCKET HEAD

90110-06402-00

—

$2.03

In stock

25

COLLAR

90387-06315-00

—

$23.95

In stock

26

NUT, CROWN

90176-06008-00

—
Out of stock

27

BOLT,SOCKET

91317-05014-00

—

$6.69

In stock
