2016 Yamaha XSR900 (XSR900GS) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2016 Yamaha XSR900 (XSR900GS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

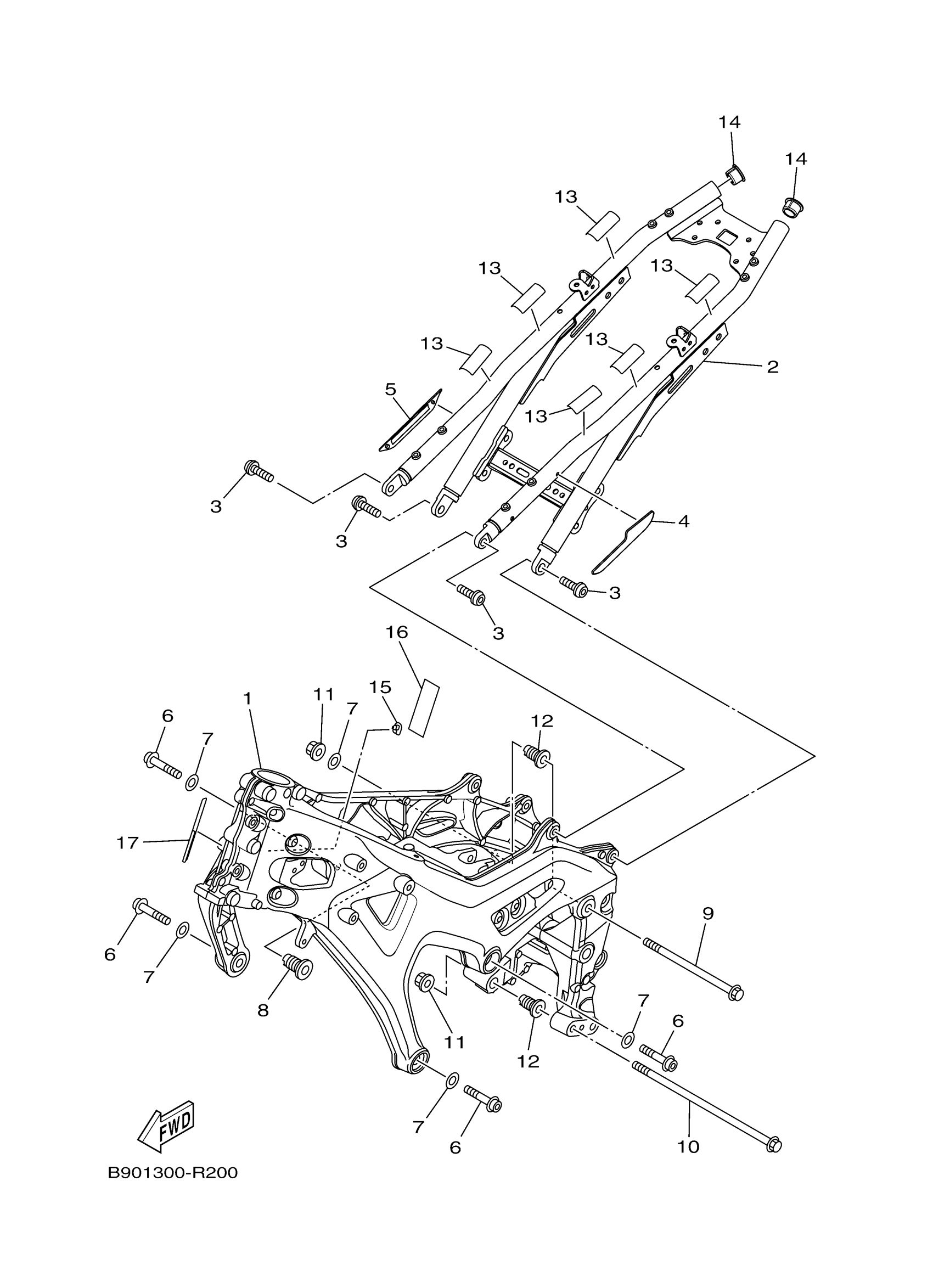

2016 Yamaha XSR900 (XSR900GS) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

1RC-21110-80-00

1

$1,137.99

In stock

2

REAR FRAME COMP.

B90-21190-00-00

1

$414.31

In stock

3

SCREW

90149-10060-00

1

$6.25

In stock

4

COVER 9

1RC-2117X-01-00

1
Out of stock

5

COVER 10

1RC-2117Y-01-00

1
Out of stock

6

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

1

$3.76

In stock

7

WASHER, PLATE

90201-10075-00

1

$2.51

In stock

8

BOLT, ENGINE ADJUSTING

1RC-21495-00-00

—

$17.63

In stock

9

BOLT, FLANGE

90105-10391-00

—

$9.98

In stock

10

BOLT, FLANGE

90105-10437-00

—

$11.65

In stock

11

NUT

90179-10024-00

1

$8.78

In stock

12

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

—

$18.98

In stock

13

SEAL

5VN-21268-00-00

1

$12.14

In stock

14

PLUG(1FN)

90338-23172-00

1

$9.55

In stock

15

PLUG, BLIND

5VX-21289-00-00

1

$3.78

In stock

16

DAMPER

1HP-H2176-01-00

—

$1.46

In stock

17

PROTECTOR

1RC-2117G-00-00

—

$4.02

In stock
