2024 Yamaha XSR700 CA (XSR700RCB) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2024 Yamaha XSR700 CA (XSR700RCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

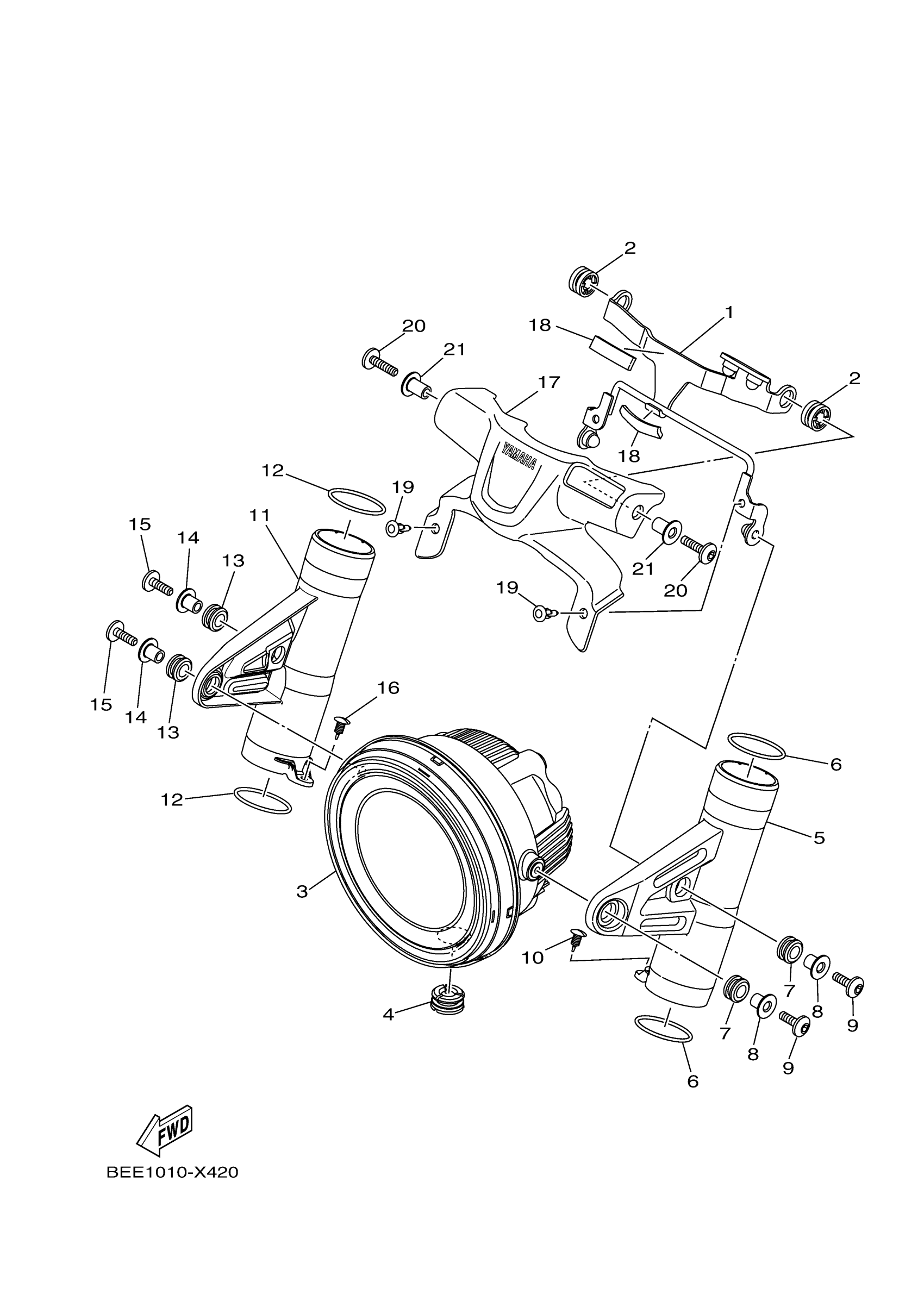

2024 Yamaha XSR700 CA (XSR700RCB) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY, HEADLIGHT

BEE-F3174-00-00

—
Out of stock

2

DAMPER

4XV-83513-00-00

1
Out of stock

3

HEADLIGHT ASSY

BEA-84300-00-00

1
Out of stock

4

GROMMET

BMC-84354-00-00

1
Out of stock

5

STAY, HEADLIGHT 1

BEE-H4118-00-00

—
Out of stock

6

O-RING

93210-40001-00

1
Out of stock

7

GROMMET

90480-14003-00

1
Out of stock

8

COLLAR

90387-06311-00

—
Out of stock

9

SCREW

90149-06104-00

1
Out of stock

10

RIVET(81E)

90269-05055-00

1
Out of stock

11

STAY, HEADLIGHT 2

BEE-H4119-00-00

—
Out of stock

12

O-RING

93210-40001-00

1
Out of stock

13

GROMMET

90480-14003-00

1
Out of stock

14

COLLAR

90387-06311-00

—
Out of stock

15

SCREW

90149-06104-00

1
Out of stock

16

RIVET(81E)

90269-05055-00

1
Out of stock

17

COVER

BEE-H4396-00-00

—
Out of stock

18

DAMPER, PLATE 2

5VY-2414J-00-00

1
Out of stock

19

RIVET

90269-06008-00

—
Out of stock

20

BOLT,HEX. SOCKET BUTTON

90111-06156-00

—
Out of stock

21

COLLAR

90387-06352-00

1
Out of stock
