2024 Yamaha XSR700 CA (XSR700RCB) Front Fork Diagram

← All diagrams

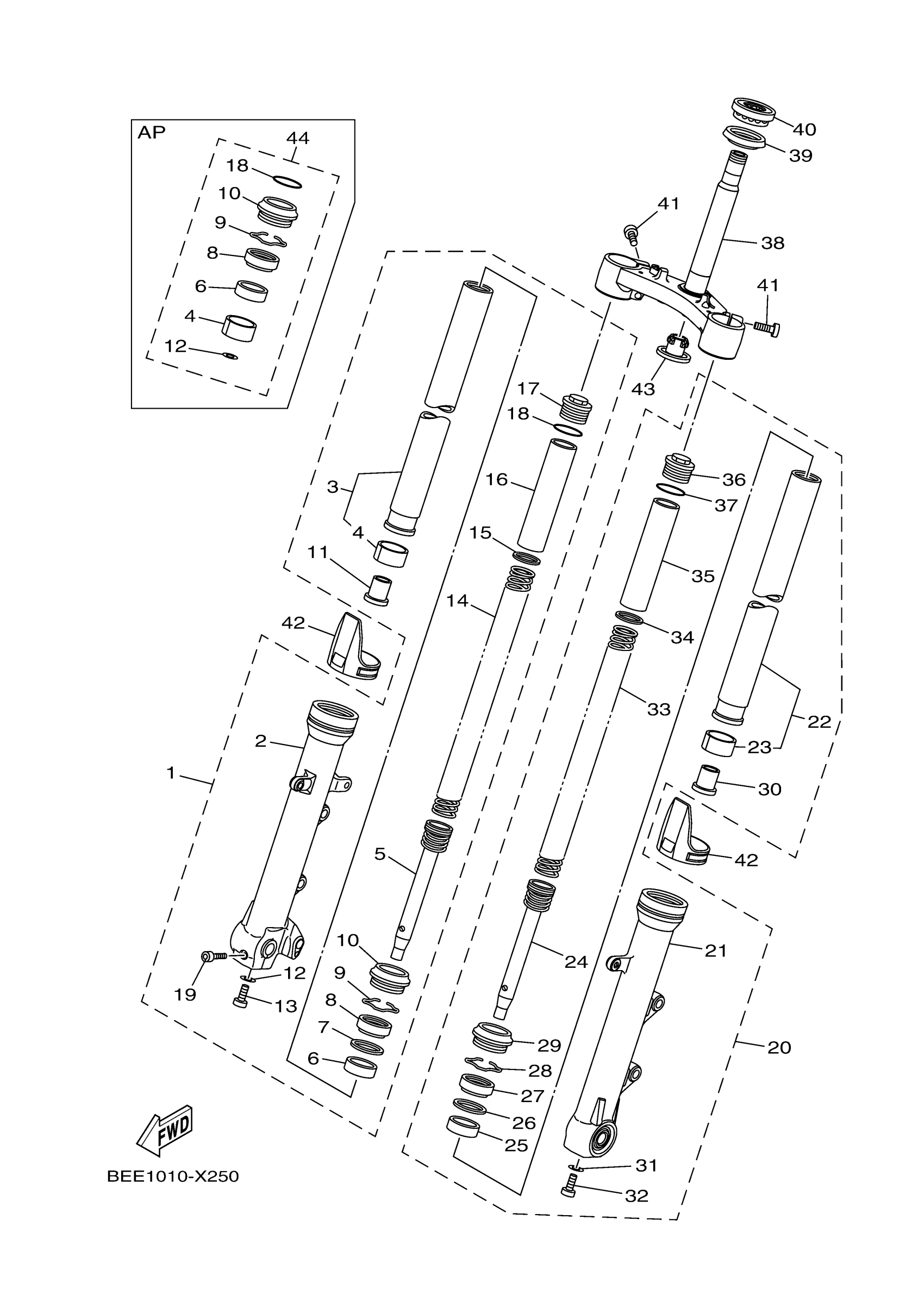

Find the part on the Front Fork diagram for your 2024 Yamaha XSR700 CA (XSR700RCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha XSR700 CA (XSR700RCB) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (R

BJV-23103-00-00

—
Out of stock

2

TUBE, OUTER 2

BAT-23136-00-00

1
Out of stock

3

INNER TUBE COMP.1

1WS-23110-00-00

—
Out of stock

4

PISTON, FRONT FORK

5BN-23171-00-00

1
Out of stock

5

CYLINDER COMP., FR

1WS-23170-00-00

—
Out of stock

6

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

7

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

8

OIL SEAL

4EB-23145-01-00

1
Out of stock

9

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

10

SEAL, DUST

4EB-23144-00-00

1
Out of stock

11

SPINDLE, TAPER

4YR-23173-00-00

—
Out of stock

12

GASKET

509-23158-L0-00

1
Out of stock

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

14

SPRING, FRONT FORK

1WS-23141-01-00

1
Out of stock

15

WASHER, SPRING UPPER

3EN-23149-50-00

1
Out of stock

16

SPACER

3FW-23118-00-00

—
Out of stock

17

BOLT, CAP

1D0-23111-00-00

—
Out of stock

18

O-RING

43F-23188-11-00

—
Out of stock

19

BOLT,SOCKET

91314-08040-00

—
Out of stock

20

FRONT FORK ASSY (L

BJV-23102-00-00

—
Out of stock

21

TUBE, OUTER (L.H)

BAT-23126-00-00

—
Out of stock

22

INNER TUBE COMP.1

1WS-23110-00-00

—
Out of stock

23

PISTON, FRONT FORK

5BN-23171-00-00

1
Out of stock

24

CYLINDER COMP., FR

1WS-23170-00-00

—
Out of stock

25

METAL, SLIDE 1

4FM-23125-40-00

1
Out of stock

26

WASHER, OIL SEAL

36Y-23146-10-00

1
Out of stock

27

OIL SEAL

4EB-23145-01-00

1
Out of stock

28

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

29

SEAL, DUST

4EB-23144-00-00

1
Out of stock

30

SPINDLE, TAPER

4YR-23173-00-00

—
Out of stock

31

GASKET

509-23158-L0-00

1
Out of stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

1
Out of stock

33

SPRING, FRONT FORK

1WS-23141-01-00

1
Out of stock

34

WASHER, SPRING UPPER

3EN-23149-50-00

1
Out of stock

35

SPACER

3FW-23118-00-00

—
Out of stock

36

BOLT, CAP

1D0-23111-00-00

—
Out of stock

37

O-RING

43F-23188-11-00

—
Out of stock

38

UNDER BRACKET COMP.

B34-23340-00-00

—
Out of stock

39

SEAL, STEERING

3FV-23462-00-00

—
Out of stock

40

BEARING(3FV)

93399-99932-00

—
Out of stock

41

BOLT,SOCKET

91314-08030-00

—
Out of stock

42

COVER

1WS-2331G-00-00

—
Out of stock

43

COVER, LOWER 1

4KM-23123-01-00

—
Out of stock

44

FORK SEAL KIT (ONE FORK)

B2G-W003B-00-00

—
Out of stock
