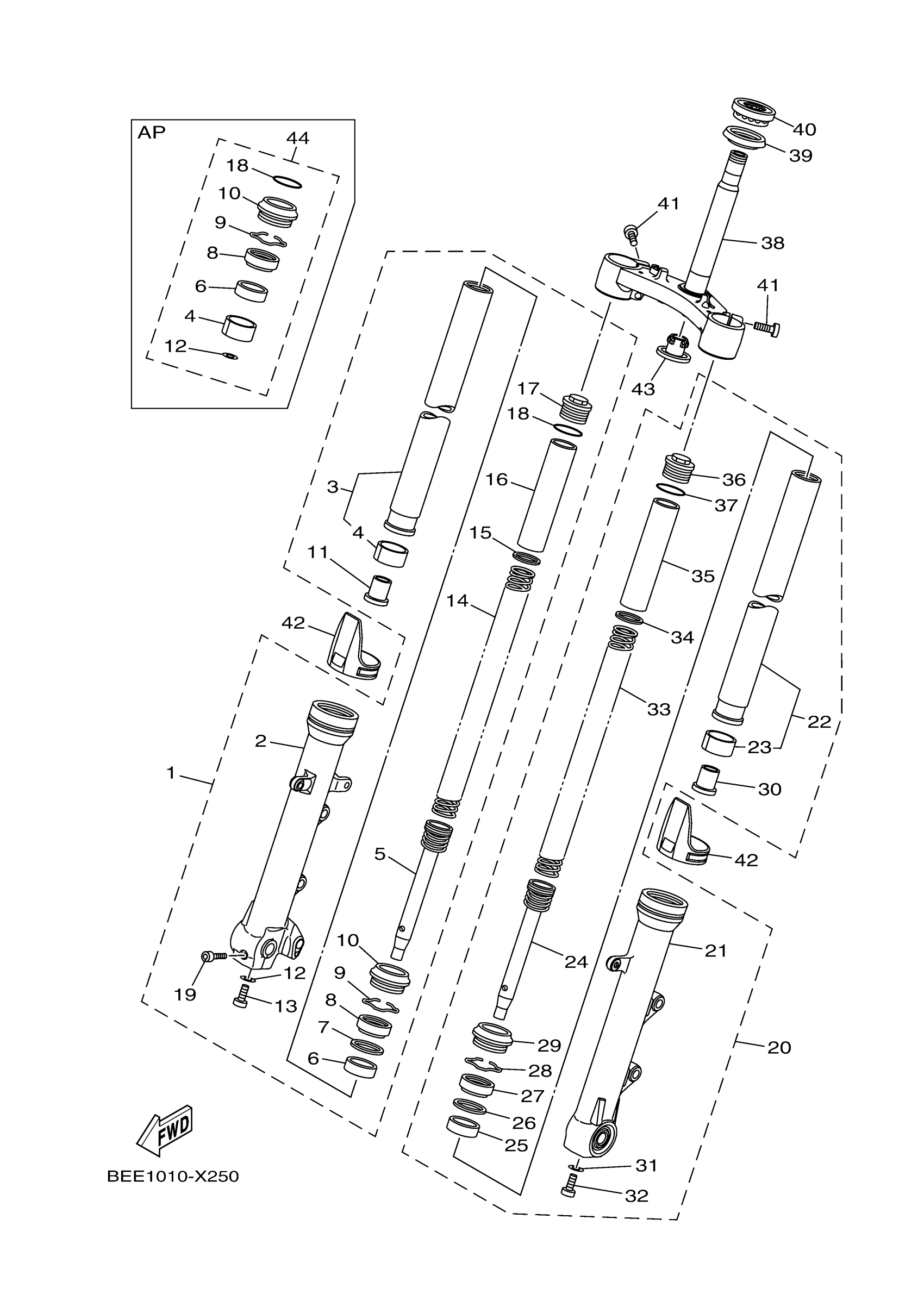

Yamaha XSR700PB (XSR700) BMC5 2023 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R

BJV-23103-00-00

Unavailable

2

TUBE, OUTER 2

BAT-23136-00-00

$386.06

3

INNER TUBE COMP.1

1WS-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5BN-23171-00-00

$18.18

5

CYLINDER COMP., FR

1WS-23170-00-00

Unavailable

6

METAL, SLIDE 1

4FM-23125-40-00

$27.32

7

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

8

OIL SEAL

4EB-23145-01-00

$22.64

9

CLIP, OIL SEAL

26H-23156-00-00

$6.17

10

SEAL, DUST

4EB-23144-00-00

$18.18

11

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

12

GASKET

509-23158-L0-00

$13.39

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

14

SPRING, FRONT FORK

1WS-23141-01-00

$38.38

15

WASHER, SPRING UPPER

3EN-23149-50-00

$2.60

16

SPACER

3FW-23118-00-00

Unavailable

17

BOLT, CAP

1D0-23111-00-00

Unavailable

18

O-RING

43F-23188-11-00

Unavailable

19

BOLT,SOCKET

91314-08040-00

Unavailable

20

FRONT FORK ASSY (L

BJV-23102-00-00

Unavailable

21

TUBE, OUTER (L.H)

BAT-23126-00-00

Unavailable

22

INNER TUBE COMP.1

1WS-23110-00-00

Unavailable

23

PISTON, FRONT FORK

5BN-23171-00-00

$18.18

24

CYLINDER COMP., FR

1WS-23170-00-00

Unavailable

25

METAL, SLIDE 1

4FM-23125-40-00

$27.32

26

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

27

OIL SEAL

4EB-23145-01-00

$22.64

28

CLIP, OIL SEAL

26H-23156-00-00

$6.17

29

SEAL, DUST

4EB-23144-00-00

$18.18

30

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

31

GASKET

509-23158-L0-00

$13.39

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

33

SPRING, FRONT FORK

1WS-23141-01-00

$38.38

34

WASHER, SPRING UPPER

3EN-23149-50-00

$2.60

35

SPACER

3FW-23118-00-00

Unavailable

36

BOLT, CAP

1D0-23111-00-00

Unavailable

37

O-RING

43F-23188-11-00

Unavailable

38

UNDER BRACKET COMP.

B34-23340-00-00

Unavailable

39

SEAL, STEERING

3FV-23462-00-00

Unavailable

40

BEARING(3FV)

93399-99932-00

Unavailable

41

BOLT,SOCKET

91314-08030-00

Unavailable

42

COVER

1WS-2331G-00-00

Unavailable

43

COVER, LOWER 1

4KM-23123-01-00

Unavailable

44

FORK SEAL KIT (ONE FORK)

B2G-W003B-00-00

Unavailable
