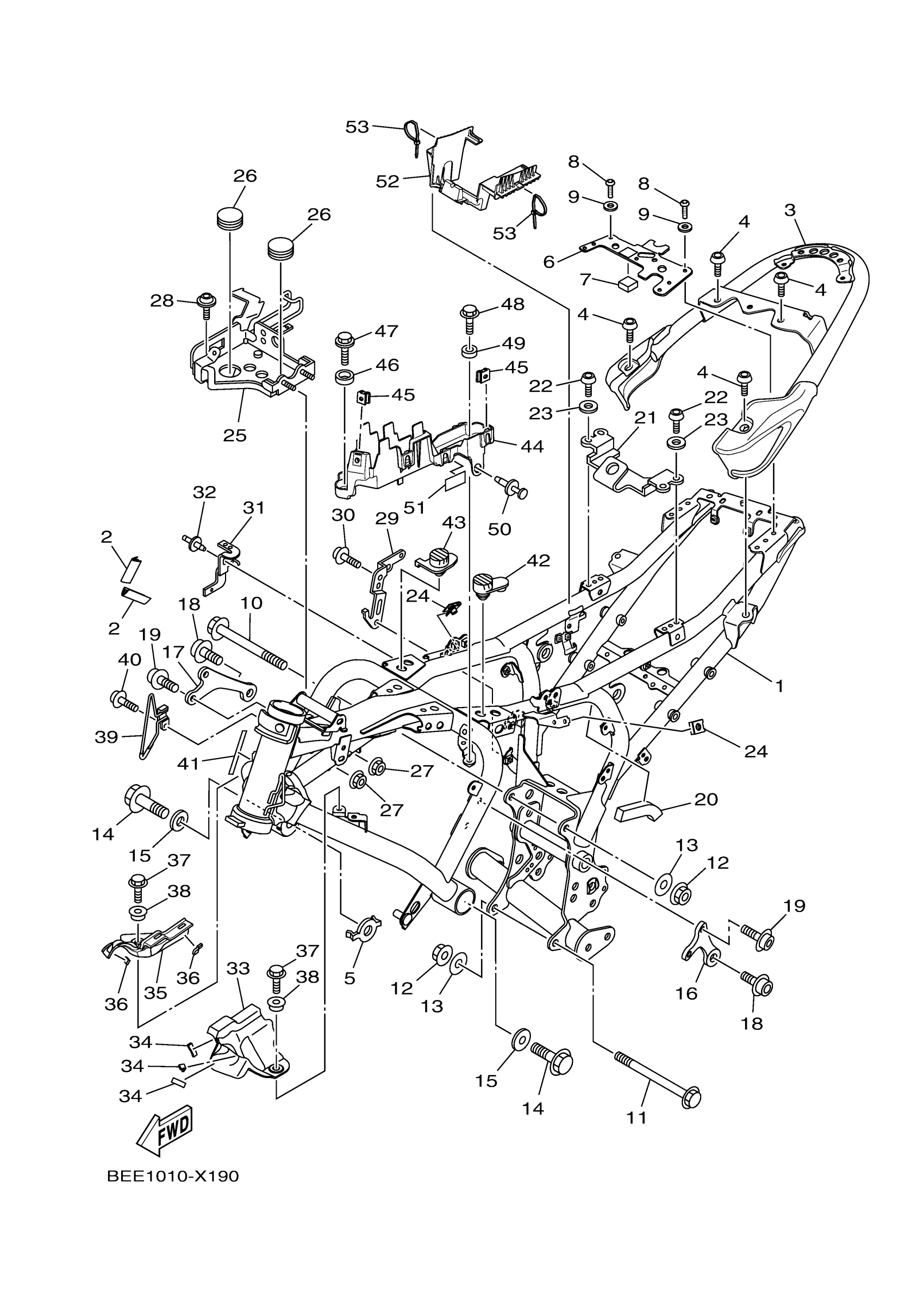

Find the part on the Frame diagram for your 2023 Yamaha XSR700 (XSR700PB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Yamaha XSR700 (XSR700PB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

B2G-21110-11-00

1
Out of stock

2

MOLE, SIDE COVER 1

1FK-2171L-00-00

1
Out of stock

3

REAR FRAME COMP

B34-F1190-00-00

1
Out of stock

4

BOLT, HEXAGON SOCK

90110-08111-00

1
Out of stock

5

PLATE 1

1WS-2191B-00-00

1
Out of stock

6

BRACKET, SEAT

BMC-21349-00-00

—
Out of stock

7

DAMPER, LOCATING 2

3B4-24182-00-00

1
Out of stock

8

BOLT, BUTTON HEAD

92017-06014-00

1
Out of stock

9

WASHER, PLATE 8087752500

90201-07081-00

1
Out of stock

10

BOLT, FLANGE

90105-10219-00

1
Out of stock

11

BOLT, FLANGE

90105-10349-00

—
Out of stock

12

NUT

90179-10024-00

1
Out of stock

13

WASHER, PLATE

90201-10035-00

1
Out of stock

14

BOLT, FLANGE

90105-12092-00

1
Out of stock

15

WASHER, PLATE

90201-13020-00

1
Out of stock

16

STAY, ENGINE 1

BAT-21315-00-00

—
Out of stock

17

STAY, ENGINE 2

BAT-21316-00-00

—
Out of stock

18

BOLT, HEXAGON SOCK

90110-10044-00

—
Out of stock

19

BOLT, HEXAGON SOCK

90110-08111-00

1
Out of stock

20

DAMPER, PLATE

90520-20003-00

—
Out of stock

21

BRACKET, SEAT FITT

BMC-21946-00-00

—
Out of stock

22

BOLT, BUTTON HEAD

92017-06014-00

1
Out of stock

23

WASHER, PLATE 8087752500

90201-07081-00

1
Out of stock

24

NUT SPRING

90183-05X04-00

—
Out of stock

25

BRACKET

B34-21158-00-00

—
Out of stock

26

GROMMET (2A6)

90480-30167-00

—
Out of stock

27

NUT, FLANGE

95702-06500-00

—
Out of stock

28

BOLT,HEX. SOCKET BUTTON

90111-06122-00

—
Out of stock

29

BRACKET 8

B2G-2161J-00-00

—
Out of stock

30

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

31

BRACKET 2

B34-2175U-00-00

—
Out of stock

32

RIVET(4PH)

90269-07077-00

—
Out of stock

33

COVER 4

1WS-2117R-00-00

—
Out of stock

34

PLATE, FOOTREST

1HX-27415-00-00

—
Out of stock

35

COVER 5

1WS-2117T-01-00

—
Out of stock

36

PLATE, FOOTREST

1HX-27415-00-00

—
Out of stock

37

BOLT, FLANGE

95817-06012-00

—
Out of stock

38

C0LLAR

90387-062M9-00

—
Out of stock

39

GUIDE, CABLE

1XB-21288-00-00

—
Out of stock

40

BOLT, FLANGE(4MY)

95027-06010-00

—
Out of stock

41

PROTECTOR, FUEL TANK

3HA-24141-00-00

—
Out of stock

42

STOPPER

B2G-23376-00-00

—
Out of stock

43

STOPPER

B2G-23429-00-00

—
Out of stock

44

HOLDER, RELAY

BMC-81952-00-00

—
Out of stock

45

NUT SPRING

90183-05X04-00

—
Out of stock

46

COLLAR

90387-1001B-00

1
Out of stock

47

BOLT, WITH WASHER

90119-06209-00

—
Out of stock

48

BOLT, FLANGE

95817-06012-00

—
Out of stock

49

COLLAR

90387-06106-00

—
Out of stock

50

RIVET

90269-06002-00

—
Out of stock

51

DAMPER, HEADLIGHT STAY

5C7-84143-00-00

—
Out of stock

52

SEAL

B34-E4476-00-00

—
Out of stock

53

CLAMP

90464-16061-00

—
Out of stock
