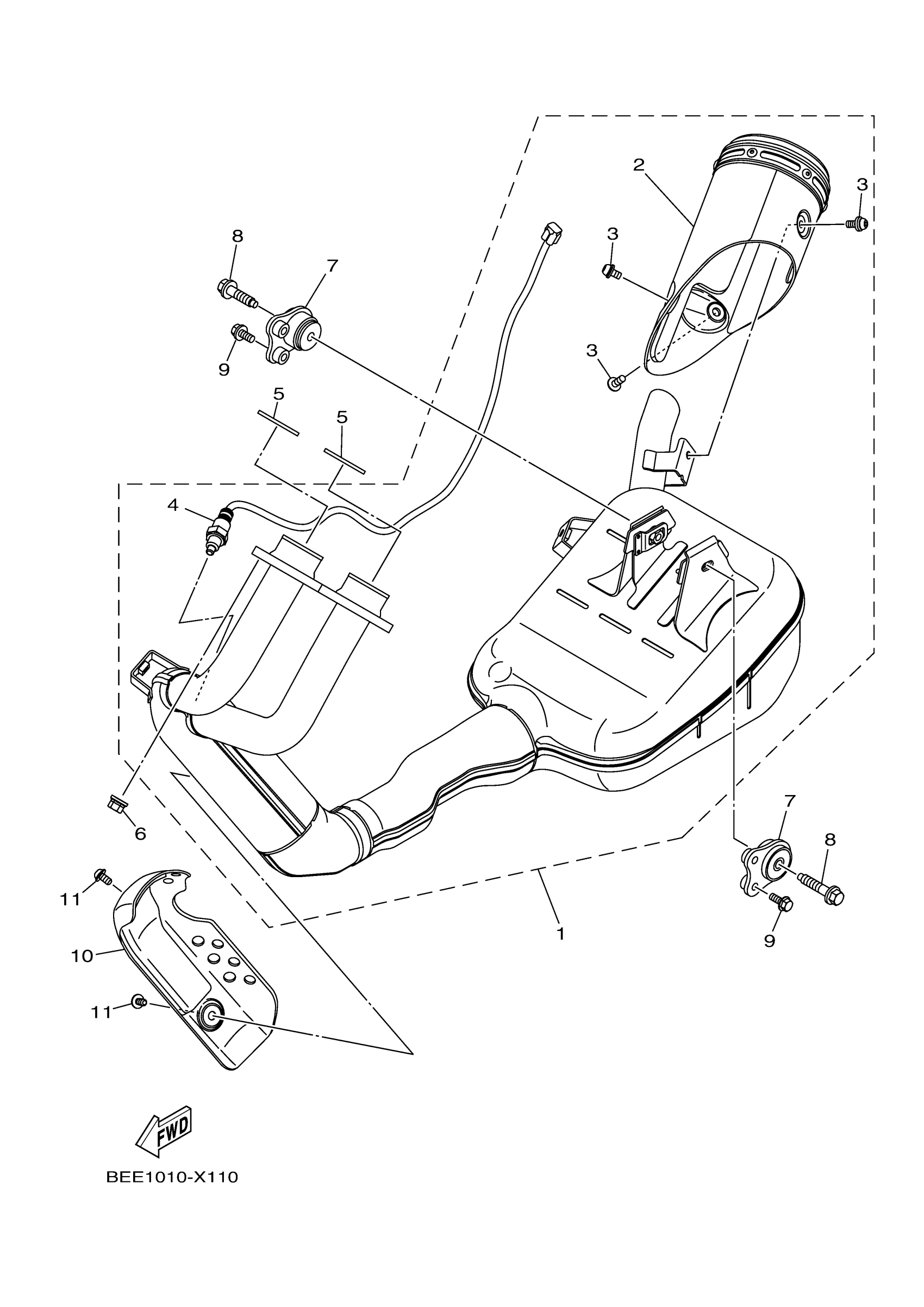

Yamaha XSR700NB (XSR700) BEE2 2022 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSY 1

BEE-14710-10-00

Unavailable

2

PROTECTOR ASSY

B2G-14708-00-00

Unavailable

3

BOLT

90111-06060-00

$3.59

4

SENSOR, OXYGEN

B4T-8592A-00-00

$139.30

5

GASKET, EXHAUST PIPE

3YF-14613-01-00

$10.82

6

NUT (22U)

90179-08410-00

$4.79

7

STAY, MUFFLER 1

20S-21445-01-00

$80.55

8

BOLT, FLANGE

90105-08164-00

$5.86

9

BOLT, FLANGE DEEP RECESS

95D34-06016-00

$0.70

10

PROTECTOR, MUFFLER

BJV-E460B-01-00

Unavailable

11

BOLT

90111-06060-00

$3.59
