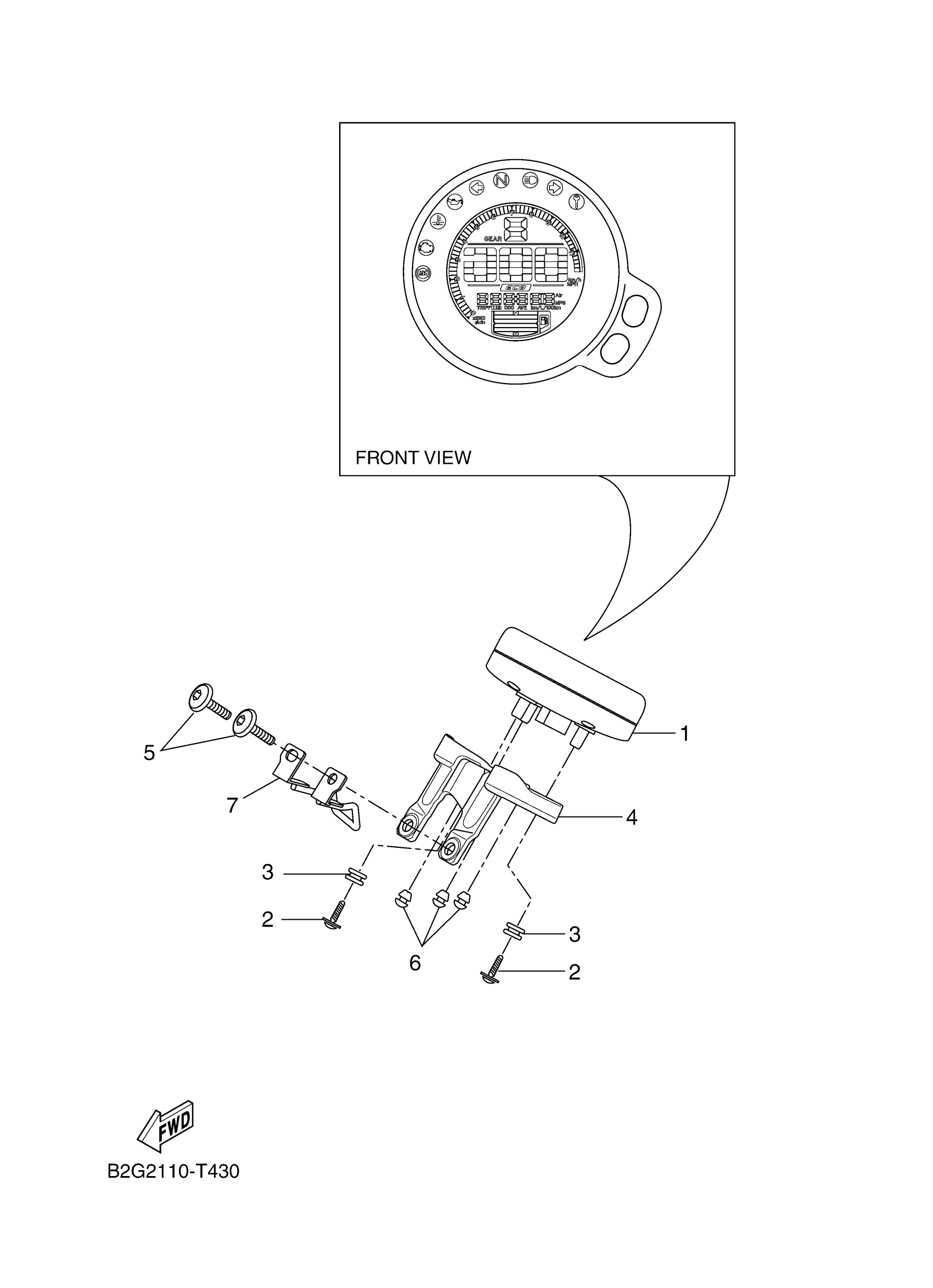

Yamaha XSR700JR (XSR700) B2G20 2018 METER Diagram

#

Description

Price

1

METER ASSY

B2G-83500-00-00

Unavailable

2

SCREW, TAPPING

90164-05001-00

$5.86

3

DAMPER

5PS-83513-00-00

$3.43

4

BRACKET, METER

B34-H3519-02-00

Unavailable

5

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$2.49

6

PLUG(1NL)

90338-07180-00

$5.30

7

BRACKET

B2G-83614-00-00

$29.42
