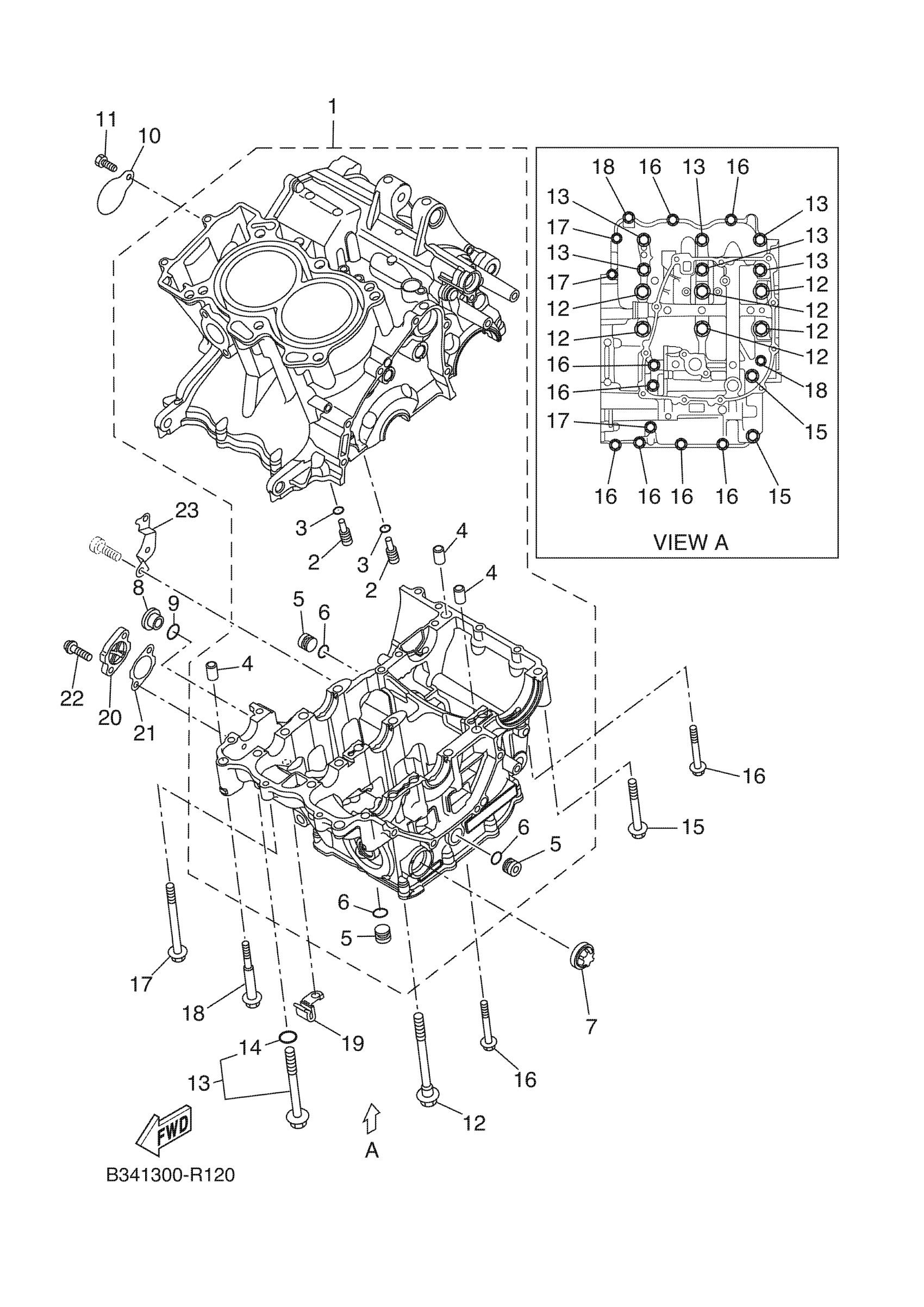

Yamaha XSR700JR (XSR700) B2G20 2018 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY SET

99999-04404-00

Unavailable

2

NOZZLE 3

5EB-15155-00-00

$11.48

3

O-RING (210)

93210-04092-00

$2.69

4

PIN, DOWEL(3VD)

99530-10114-00

$2.13

5

PLUG

90338-16262-00

$11.02

6

O-RING(3LD)

93210-12790-00

$5.37

7

GAUGE, LEVEL

2H7-15361-00-00

$80.55

8

PLUG

36Y-15189-01-00

Unavailable

9

O-RING(1L9)

93210-16325-00

$5.47

10

PLUG

1WS-15189-00-00

$6.29

11

BOLT

97012-06014-00

$5.81

12

BOLT, WITH WASHER

90119-09014-00

$9.99

13

BOLT, CRANKCASE JO

1WS-15156-00-00

$6.06

14

O-RING (11M)

93210-07540-00

$5.39

15

BOLT, FLANGE

95814-08065-00

$3.29

16

BOLT, FLANGE

95817-06040-00

Unavailable

17

BOLT, FLANGE

95812-06060-00

Unavailable

18

BOLT

90109-06100-00

Unavailable

19

CLAMP

90462-10064-00

Unavailable

20

COVER, OIL PUMP

1WS-15416-00-00

Unavailable

21

GASKET, OIL PUMP C

1WS-15456-01-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

23

HOLDER

1WS-15128-00-00

Unavailable
