1981 Yamaha XS850S (XS850SH) Frame Diagram

← All diagrams

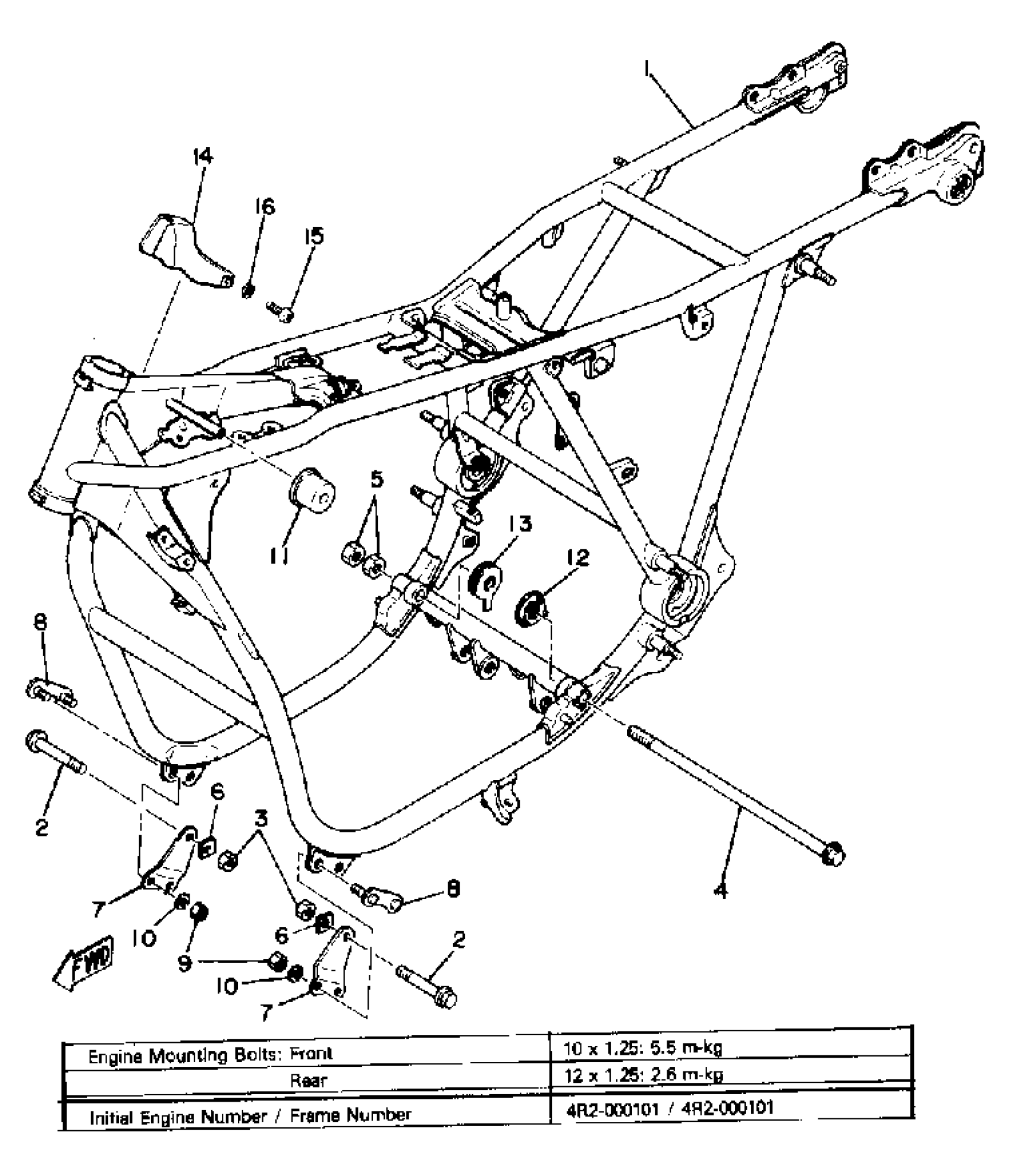

Find the part on the Frame diagram for your 1981 Yamaha XS850S (XS850SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850S (XS850SH) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(3J2-21110-03-33)

1
Out of stock

2

BOLT, FLANGE

95814-10040-00

1

$3.69

In stock

3

NUT, U

95617-10100-00

1
Out of stock

4

BOLT

90109-12501-00

1
Out of stock

5

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

6

WASHER, SPEC''L SHAP

(90209-10147-00)

1
Out of stock

7

STAY, ENGINE 3

2G2-21316-00-00

1
Out of stock

8

BRACKET, FRT LWR 2

2G2-21418-00-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

BRACKET, TANK FTNG

2G2-21347-00-00

1
Out of stock

12

DAMPER, RUBBER 1

2G2-21485-00-00

1
Out of stock

13

DAMPER 2

2G2-21486-00-00

1
Out of stock

14

COVER 2

(3J2-2139R-00-00)

1
Out of stock

15

SCREW, PAN

98517-05012-00

1

$3.91

In stock

16

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock
