1981 Yamaha XS850 (XS850H) Speedometer Tachometer Diagram

← All diagrams

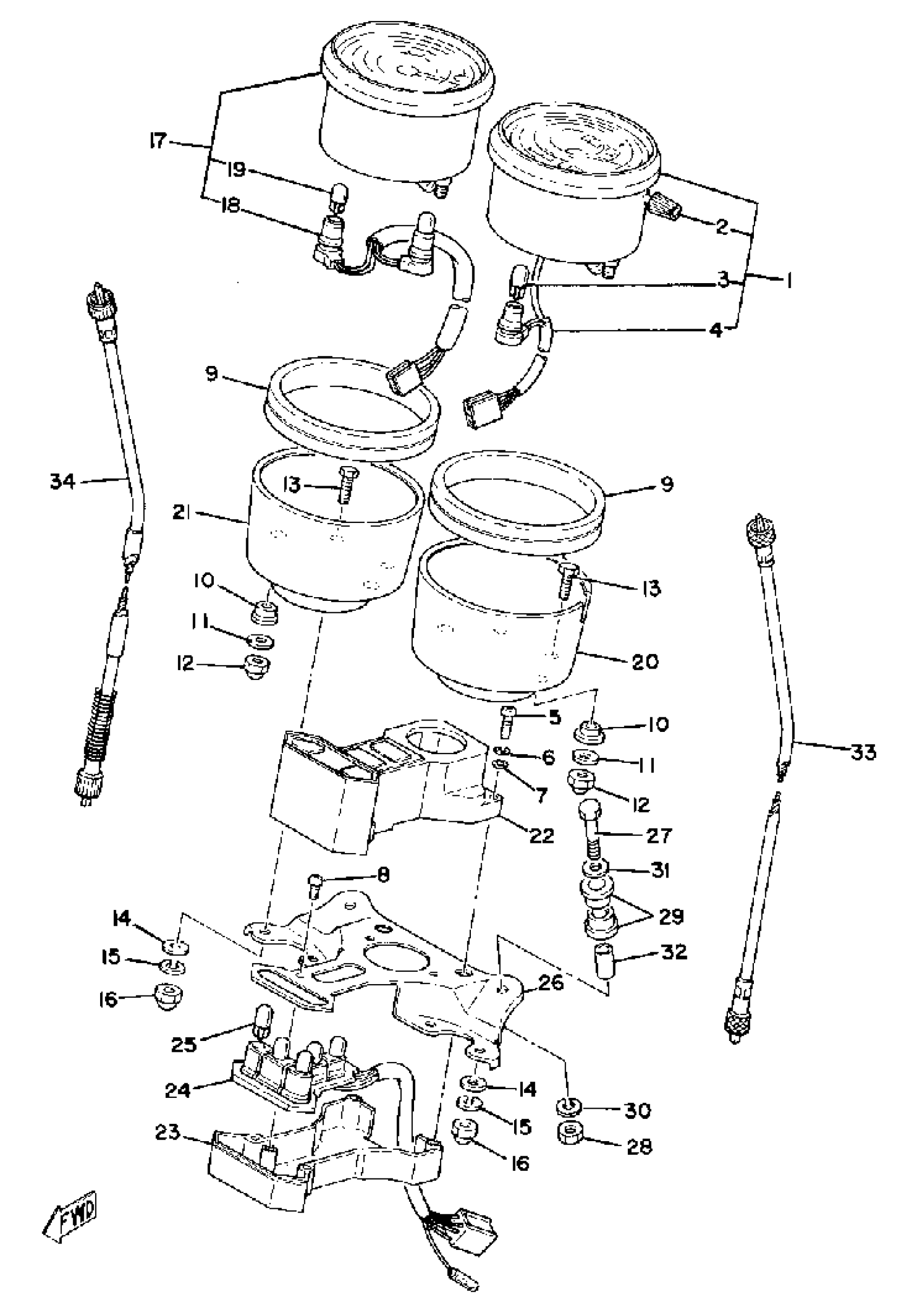

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XS850 (XS850H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850 (XS850H) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

2

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

5

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock

6

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

7

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

8

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

9

DAMPER

3H3-83513-00-00

1
Out of stock

10

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

11

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

12

NUT (CROWN)

95303-05800-00

1
Out of stock

13

BOLT

584-83546-00-00

1
Out of stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT (J17)

95380-06800-00

—

$6.74

In stock

17

TACHOMETER ASSY

3J3-83540-A1-00

1
Out of stock

18

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

1
Out of stock

19

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

20

COVER, SPEEDOMETER

584-83507-00-00

1
Out of stock

21

COVER, TACHOMETER

584-83508-00-00

1
Out of stock

22

PILOT BOX, UPPER

1J7-83568-71-00

1
Out of stock

23

PILOT BOX, LOWER

1J3-83569-71-00

1
Out of stock

24

SOCKET CORD ASSEMBLY

(3J3-83509-01-00)

1
Out of stock

25

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

26

BRACKET, METER

(1J3-83519-00-00)

1
Out of stock

27

BOLT(8BC)

97017-06040-00

—
Out of stock

28

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

29

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

32

COLLAR (877)

90387-06249-00

—
Out of stock

33

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

34

TACHOMETER CABLE

3J3-83560-00-00

1
Out of stock
