1981 Yamaha XS850 (XS850H) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 1981 Yamaha XS850 (XS850H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

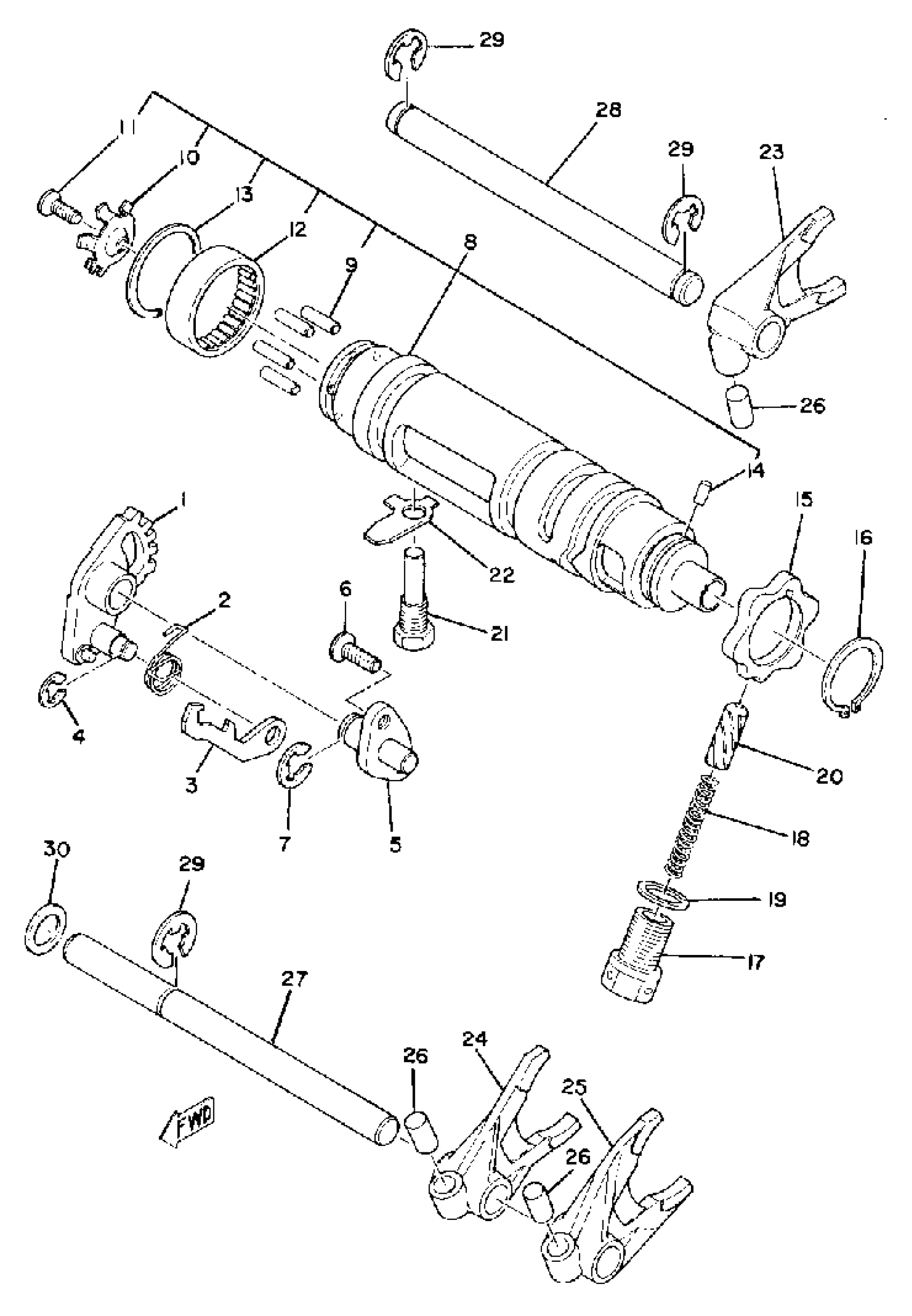

1981 Yamaha XS850 (XS850H) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. LEVER, SHIFT 2

1J7-18122-03-00

1
Out of stock

2

SPRING, TORSION

90508-10362-00

1
Out of stock

3

LEVER, SHIFT 3

1J7-18151-00-00

1
Out of stock

4

. CIRCLIP, PLUNGER

93440-08001-00

1
Out of stock

5

SHAFT

(1J7-18197-00-00)

1
Out of stock

6

SCREW, OVAL HEAD

98603-06018-00

1
Out of stock

7

CIRCLIP(J51)

99080-09600-00

1
Out of stock

8

SHIFT CAM ASSEMBLY

1J7-18540-01-00

1
Out of stock

9

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock

10

PLATE, SIDE 1

1J7-18561-00-00

1
Out of stock

11

SCREW, FLAT

98707-05012-00

1
Out of stock

12

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

13

CIRCLIP (371)

93440-34025-00

1
Out of stock

14

PIN, DOWEL (278)

93604-08071-00

1
Out of stock

15

PLATE STOPPER SET

2J2-W1814-00-00

—
Out of stock

16

CIRCLIP(4A6)

99009-30400-00

—
Out of stock

17

SCREW, SPEC''L SHAPE

90149-14112-00

1
Out of stock

18

SPRING, COMPRESSION

90501-10196-00

1
Out of stock

19

GASKET 256131670000

90430-14043-00

—
Out of stock

20

STOPPER, CAM

1J7-18547-00-00

—
Out of stock

21

BOLT

90109-10527-00

1
Out of stock

22

WASHER, LOCK

90215-10145-00

1
Out of stock

23

FORK, SHIFT 1

1J7-18511-00-00

1
Out of stock

24

FORK, SHIFT 2

1J7-18512-00-00

1
Out of stock

25

FORK, SHIFT 3

1J7-18513-00-00

—
Out of stock

26

PIN, STRAIGHT

90250-08017-00

1
Out of stock

27

BAR, SHIF FRK GDE 1

1J7-18531-00-00

1
Out of stock

28

BAR, SHIF FRK GDE 2

1J7-18535-00-00

1
Out of stock

29

CIRCLIP

99006-10600-00

—
Out of stock

30

WASHER, PLATE

90201-12176-00

1
Out of stock
