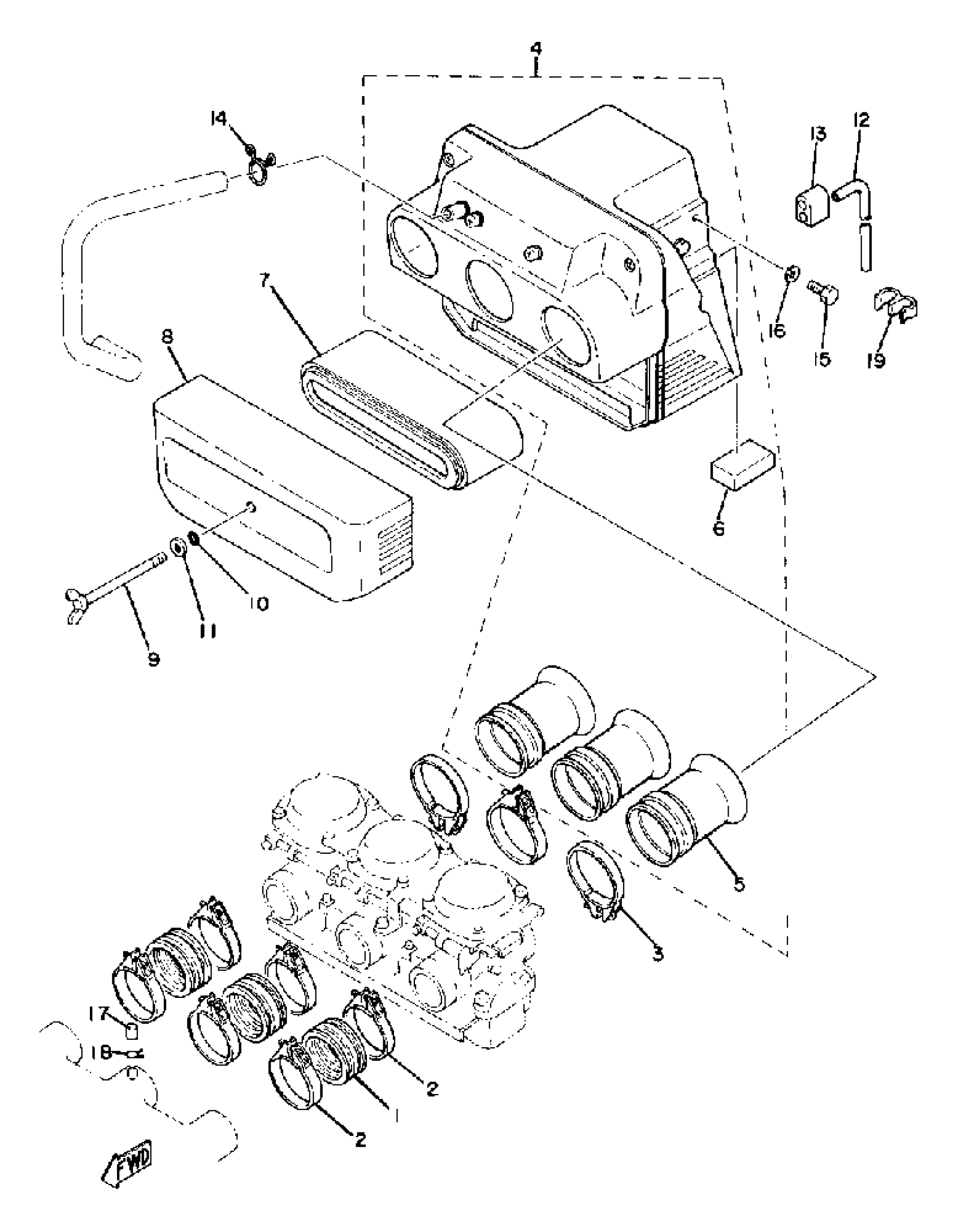

Find the part on the Intake diagram for your 1981 Yamaha XS850 (XS850H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850 (XS850H) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

2F3-13586-01-00

—

$53.68

In stock

2

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

4

AIR CLEANER CASE

2F3-W1441-05-00

1
Out of stock

5

JOINT, AIR CLNR 1

2F3-14453-00-00

1
Out of stock

6

SEAL

(2F3-14452-01-00)

1
Out of stock

7

ELEMENT, AIR CLEANER

4E2-14451-00-00

1
Out of stock

8

CAP, CLEANER CASE 2

2F3-14422-00-00

1
Out of stock

9

BOLT, WING

90122-06006-00

1
Out of stock

10

O-RING

93210-06257-00

1
Out of stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

13

GROMMET

(2F3-14445-00-00)

1
Out of stock

14

CLIP (371)

90467-14015-00

1

$7.51

In stock

15

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

17

PLUG, BLIND

16G-13569-00-00

—
Out of stock

18

CLIP (3G0)

90467-10039-00

—
Out of stock

19

JOINT

(2F3-14454-00-00)

1
Out of stock
