1981 Yamaha XS850 (XS850H) Front Fork Diagram

← All diagrams

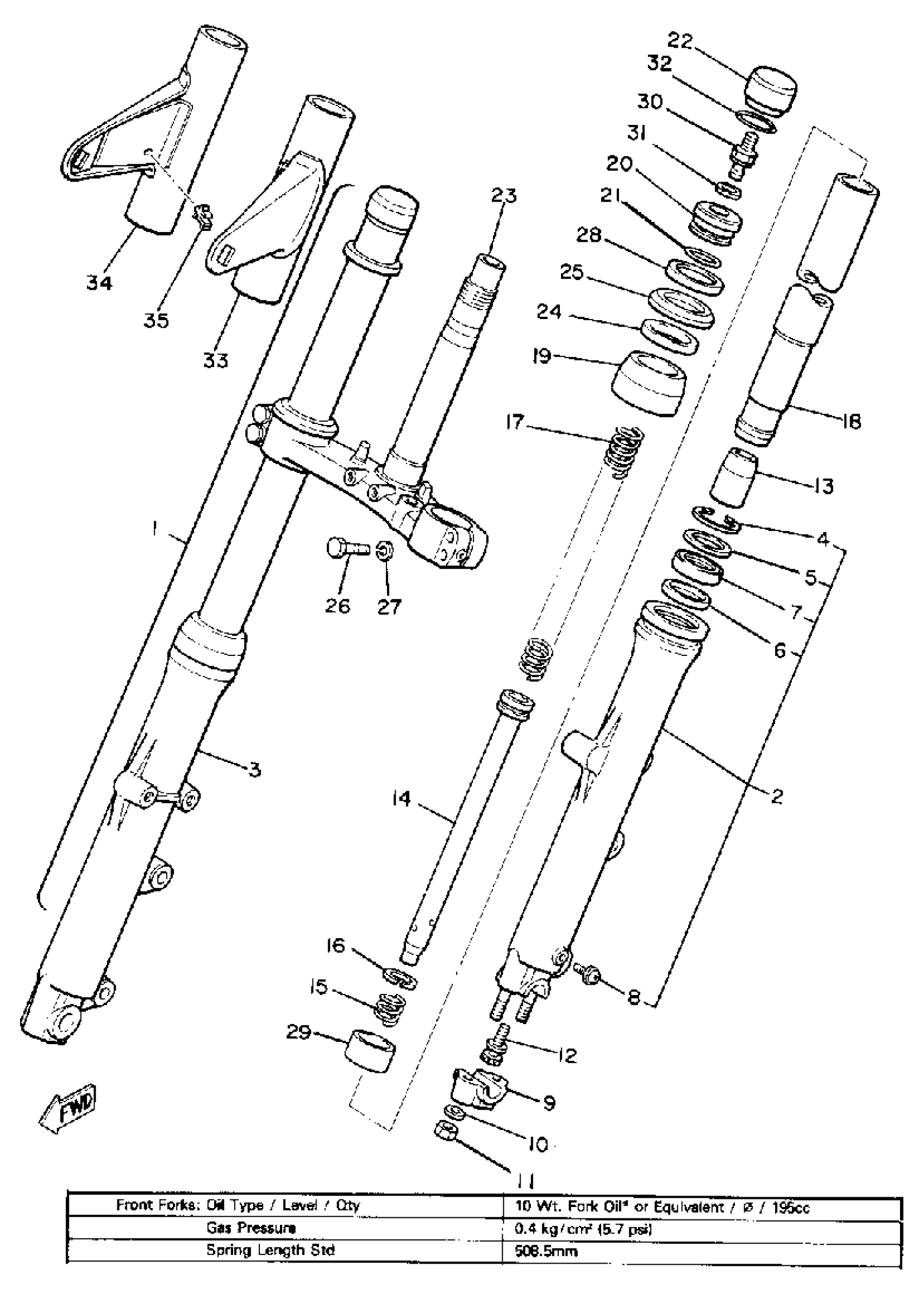

Find the part on the Front Fork diagram for your 1981 Yamaha XS850 (XS850H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS850 (XS850H) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(3J3-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(3J3-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(3J3-23136-00-00)

1
Out of stock

4

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

5

WASHER, OIL SEAL

(3J6-23146-00-00)

1
Out of stock

6

O-RING

1KH-23147-00-00

1

$22.83

In stock

7

OIL SEAL

1KH-23145-00-00

1

$21.69

In stock

8

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

9

HOLDER, AXLE

(1J7-23167-00-00)

1
Out of stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

12

BOLT

3M7-23181-00-00

1

$7.75

In stock

13

. SPACER, OIL LOCK

(1J3-23166-00-00)

1
Out of stock

14

CYLINDER, FRTFRK

(2G2-23170-00-00)

1
Out of stock

15

. SPRING, REBOUND

1J3-23151-00-00

1
Out of stock

16

. RING, PISTON FRTFRK

1T4-23157-00-00

1
Out of stock

17

SPRING, FRONT FORK

(3J3-23141-00-00)

1
Out of stock

18

. INNER TUBE 1

3J3-23110-00-00

1
Out of stock

19

. SEAL, DUST

1T4-23144-00-00

1
Out of stock

20

BOLT, CAP

(3J3-23111-00-00)

1
Out of stock

21

O-R1NG(N04)

93210-221A0-00

—

$6.32

In stock

22

. CAP, FRONT FORK

2F3-23168-01-00

1
Out of stock

23

. UNDER BRACKET

3J3-23340-00-33

1
Out of stock

24

. GASKET

23W-23163-00-00

1
Out of stock

25

GUIDE, COVER LOWER

(3J3-23116-00-00)

1
Out of stock

26

. BOLT 1

3J3-23346-00-00

1
Out of stock

27

. WASHER, SPRING LWR

3J3-23159-00-00

1
Out of stock

28

. GUIDE, COVER UPPER

1T4-23115-00-00

1
Out of stock

29

METAL, SLIDE 2

(3J3-23135-00-00)

1
Out of stock

30

. AIR VALVE

5K7-23190-00-00

1
Out of stock

31

O-RING (26H)

93210-06632-00

—

$6.68

In stock

32

. CIRCLIP

1J3-23183-01-00

1
Out of stock

33

COVER, UPPER 1

3J3-23121-00-93

1
Out of stock

34

COVER, UPPER 2

3J3-23131-00-93

1
Out of stock

35

CLAMP (1J7)

90464-16025-00

—
Out of stock
