1978 Yamaha XS750S (XS750SE) Frame Diagram

← All diagrams

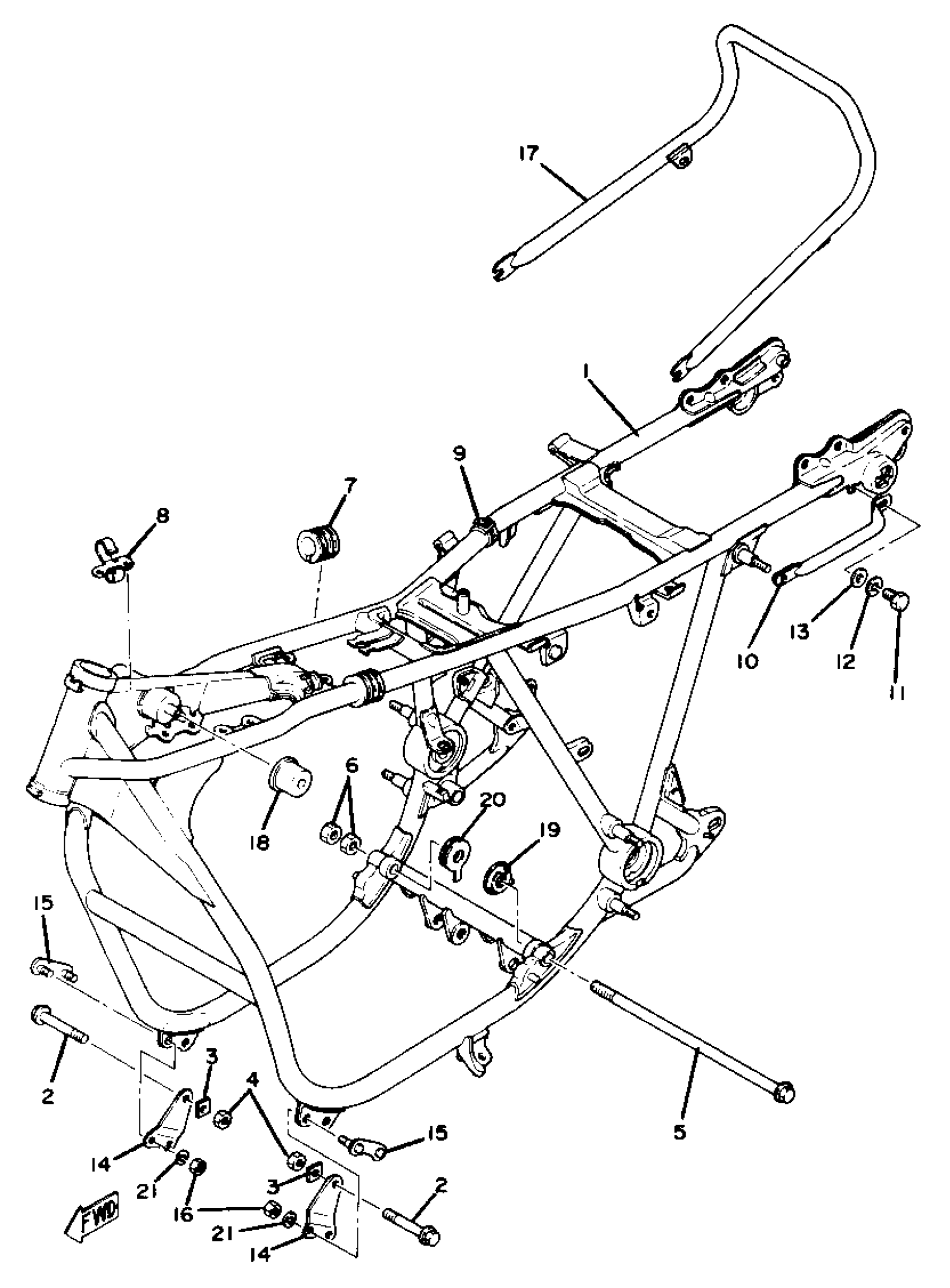

Find the part on the Frame diagram for your 1978 Yamaha XS750S (XS750SE), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS750S (XS750SE) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2G2-21110-01-33)

1
Out of stock

2

BOLT, FLANGE

95814-10040-00

1
Out of stock

3

WASHER, SPEC''L SHAP

(90209-10147-00)

1
Out of stock

4

NUT, U

95617-10100-00

1
Out of stock

5

BOLT

90109-12501-00

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

7

DAMPER, TANK LOCATING 3

1J7-24183-02-00

—
Out of stock

8

CLAMP

(2G2-82594-00-00)

1
Out of stock

9

BAND, SWITCH CORD

25G-83936-01-00

1
Out of stock

10

STAY, ENGINE 3

2G2-21316-00-00

1
Out of stock

11

BRACKET, FRT LWR 2

2G2-21418-00-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

14

BRACKET, TANK FTNG

2G2-21347-00-00

1
Out of stock

15

DAMPER, RUBBER 1

2G2-21485-00-00

1
Out of stock

16

DAMPER 2

2G2-21486-00-00

1
Out of stock

17

STAY, REAR

2G2-21645-00-00

1
Out of stock

18

BRACKET, TANK FTNG

2G2-21347-00-00

1
Out of stock

19

DAMPER, RUBBER 1

2G2-21485-00-00

1
Out of stock

20

DAMPER 2

2G2-21486-00-00

1
Out of stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock
