1979 Yamaha XS750 (XS750F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha XS750 (XS750F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

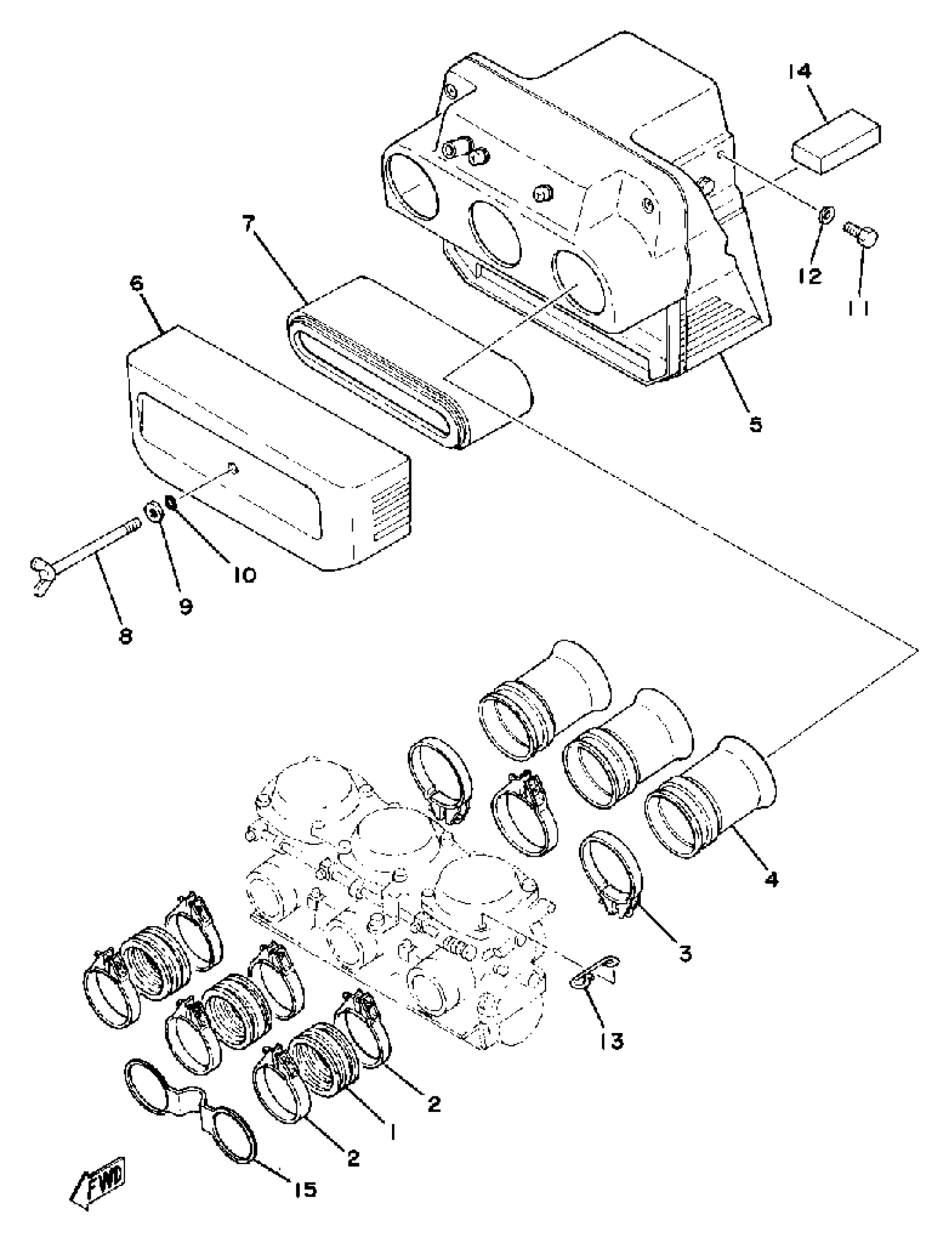

1979 Yamaha XS750 (XS750F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

2F3-13586-01-00

—

$53.68

In stock

2

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

4

JOINT, AIR CLNR 1

2F3-14453-00-00

1
Out of stock

5

AIR CLEANER CASE

2F3-W1441-05-00

1
Out of stock

6

CAP, CLEANER CASE 2

2F3-14422-00-00

1
Out of stock

7

ELEMENT, AIR CLEANER

4E2-14451-00-00

1
Out of stock

8

BOLT, WING

90122-06006-00

1
Out of stock

9

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

10

O-RING

93210-06257-00

1
Out of stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

CLIP

(90468-20083-00)

1
Out of stock

14

SEAL

(2F3-14452-00-00)

1
Out of stock

15

CLAMP

(90465-08120-00)

1
Out of stock
