1979 Yamaha XS750 (XS750F) Front Fork Diagram

← All diagrams

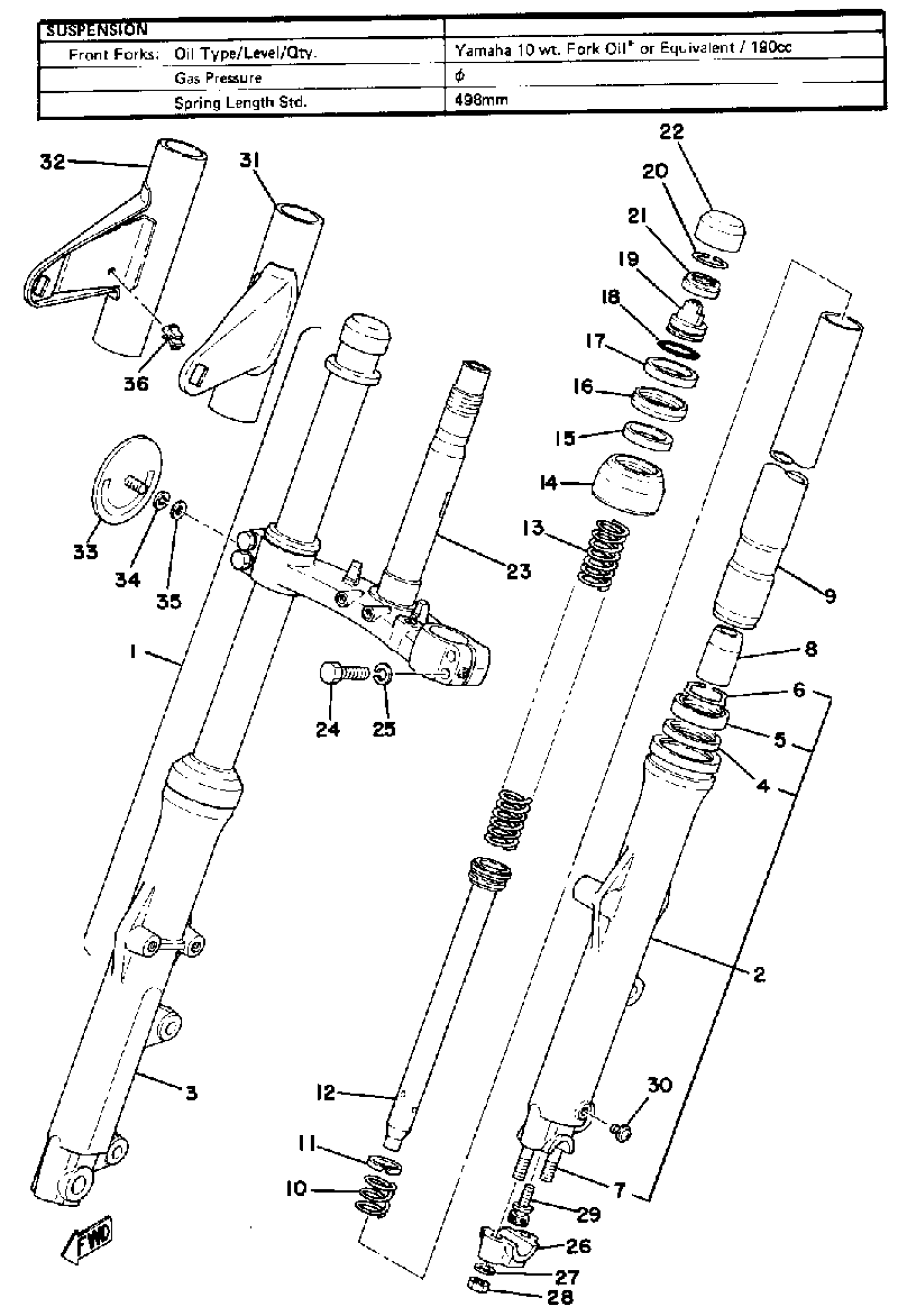

Find the part on the Front Fork diagram for your 1979 Yamaha XS750 (XS750F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha XS750 (XS750F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2Y4-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(1T4-23126-00-00)

1
Out of stock

3

TUBE, OUTER 2

(1T4-23136-00-00)

1
Out of stock

4

O-RING

1KH-23147-00-00

1
Out of stock

5

OIL SEAL

1KH-23145-00-00

1
Out of stock

6

CLIP, OIL SEAL

34X-23156-00-00

1
Out of stock

7

.. BOLT, STUD

90116-08260-00

1
Out of stock

8

. SPACER, OIL LOCK

(1J3-23166-00-00)

1
Out of stock

9

. INNER TUBE 1

2F3-23110-00-00

1
Out of stock

10

. SPRING, REBOUND

1J3-23151-00-00

1
Out of stock

11

. RING, PISTON FRTFRK

1T4-23157-00-00

1
Out of stock

12

CYLINDER, FRTFRK

(1T4-23170-01-00)

1
Out of stock

13

. SPRING, FRONT FORK

2F3-23141-00-00

1
Out of stock

13

SPRING, FRONT FORK

(2F3-23141-10-00)

1
Out of stock

14

. SEAL, DUST

1T4-23144-00-00

1
Out of stock

15

. GASKET

23W-23163-00-00

1
Out of stock

16

GUIDE, COVER LOWER

(1T4-23116-00-00)

1
Out of stock

17

. GUIDE, COVER UPPER

1T4-23115-00-00

1
Out of stock

18

O-R1NG(N04)

93210-221A0-00

—
Out of stock

19

. SPRING, ADJUSTER

2F3-2311A-00-00

1
Out of stock

20

. CIRCLIP

1J3-23183-01-00

1
Out of stock

21

. BOLT, CAP

2F3-23111-00-00

1
Out of stock

22

. CAP, FRONT FORK

2F3-23168-01-00

1
Out of stock

23

. UNDER BRACKET

3J3-23340-00-33

1
Out of stock

24

BOLT

97014-08040-00

—
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

26

HOLDER, AXLE

(1J7-23167-00-00)

1
Out of stock

27

.. WASHER, PLATE

92990-08600-00

1
Out of stock

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—
Out of stock

29

BOLT

3M7-23181-00-00

—
Out of stock

30

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

31

COVER, UPPER 1

1J7-23121-01-93

1
Out of stock

32

COVER, UPPER 2

(1J7-23131-01-93)

1
Out of stock

33

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

34

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

35

. WASHER, PLAIN

92990-05200-00

1
Out of stock

36

CLAMP (1J7)

90464-16025-00

—
Out of stock
