Crankcase

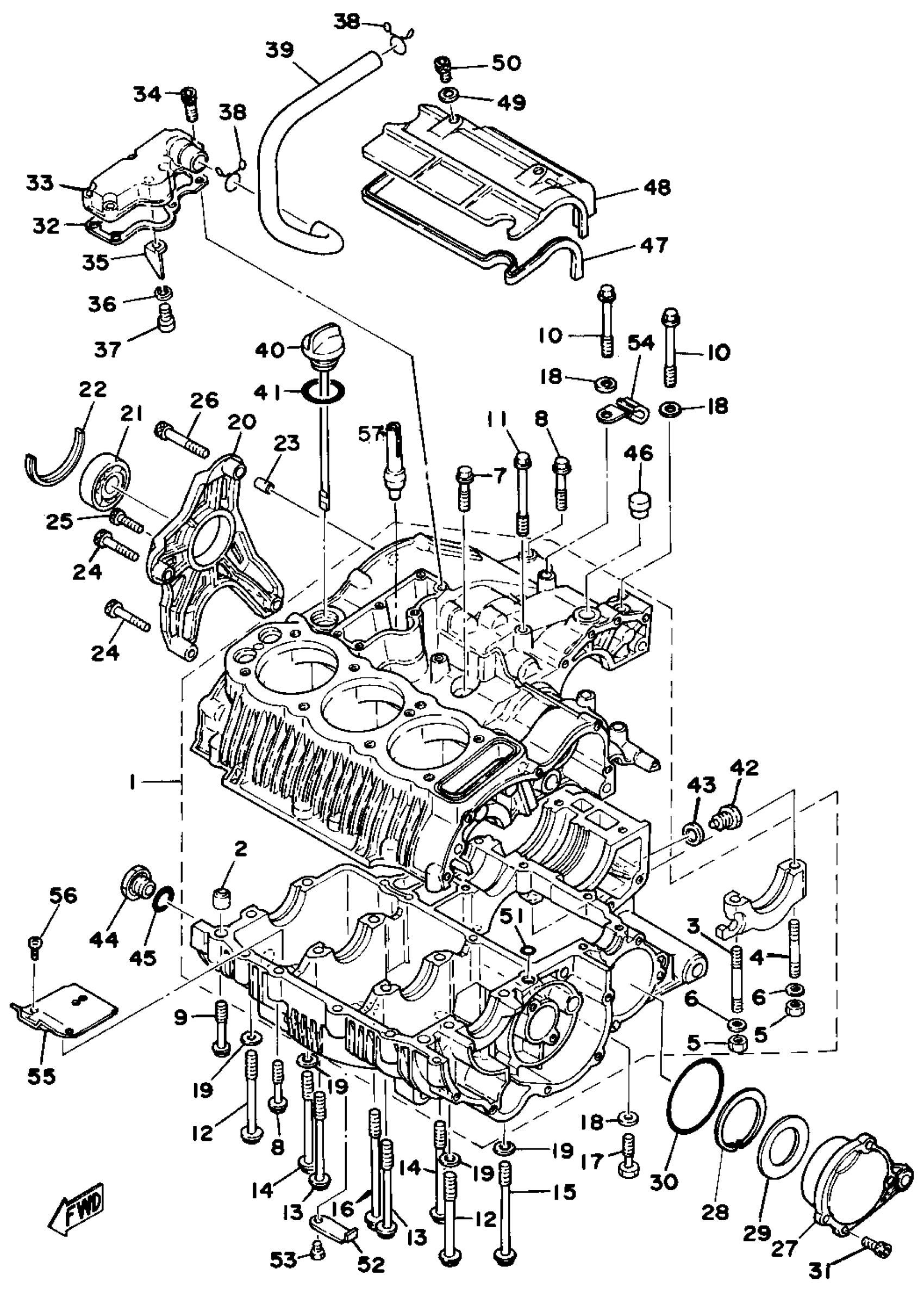

1978 Yamaha XS750 (XS750E) Crankcase Diagram
Find the part on the Crankcase diagram for your 1978 Yamaha XS750 (XS750E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CRANKCASE ASSEMBLY
(1J7-15100-01-00)
3
BOLT, STUD
(90116-08229-00)
4
. BOLT, STUD
90116-08230-00
6
WASHER, PLATE (33N)
90201-084G3-00
11
BOLT, FLANGE(8BN)
95817-08085-00
12
BOLT, FLANGE
95821-10095-00
13
GSKTKT XS750E/F
(2F3-00000-20-00)
13
BOLT, FLANGE(4MY)
95817-10100-00
14
BOLT, FLANGE
(95821-10105-00)
15
BOLT, FLANGE
95821-10115-00
16
BOLT, FLANGE
(95821-10125-00)
18
COVER, STRTG MOTOR
(1J7-15436-00-00)
18
WASHER, PLATE (33N)
90201-084G3-00
20
HOUSING, BEARING
(1J7-15442-01-00)
22
RING, RUBBER
2F3-15449-01-00
27
HOUSING, BEARING 2
(2G2-15164-00-00)
28
CIRCLIP, R-TYPE
93420-65052-00
29
WASHER, PLATE
(90201-31662-00)
32
GASKET,BRTHR COVER
1J7-11169-10-00
33
COVER, BREATHER
(2F3-11168-00-00)
35
PLATE, BREATHER
(1J7-11165-00-00)
39
PIPE, BREATHER 1
2F3-11166-00-00
40
PLUG, OIL LEVEL
1T4-15362-00-00
44
BOLT, UNION
(90401-18042-00)
46
BREATHER COMP.
2H7-17590-00-00
47
GSKT, STRTG MTR CVR
1J7-15446-00-00
52
CLAMP
(90465-08112-00)
54
CLAMP
90465-08017-00
55
PLATE, BUFFLE 1
(2F3-15123-00-00)
56
SCREW, TAPPING
(90167-05002-00)
57
SEPARATOR, OIL
(2F3-15358-20-00)
