1982 Yamaha XS650S (XS650SJ) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1982 Yamaha XS650S (XS650SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

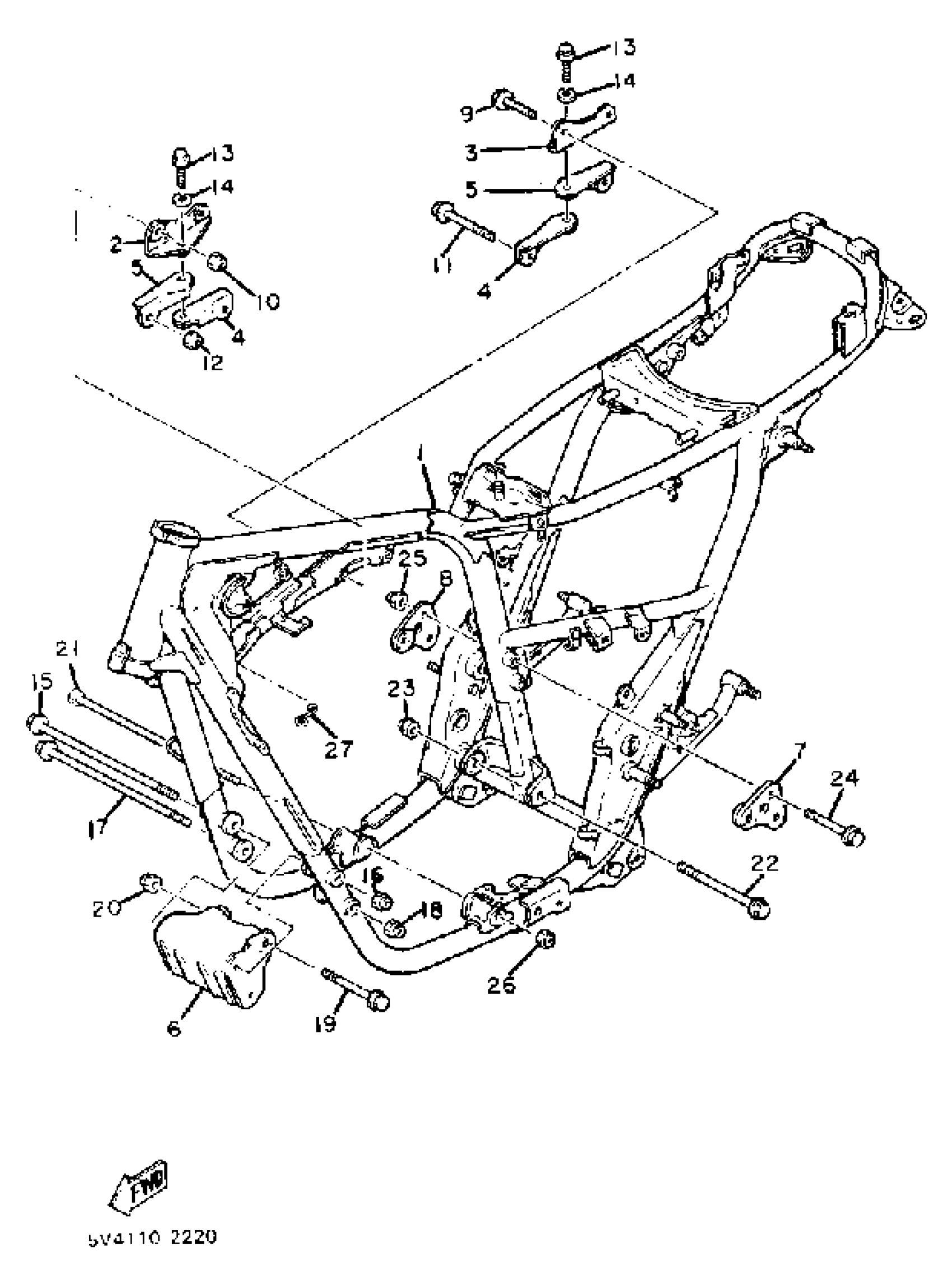

1982 Yamaha XS650S (XS650SJ) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(5V4-21110-00-98)

1
Out of stock

2

STAY, ENGINE 1

447-21314-00-00

1
Out of stock

3

STAY, ENGINE 2

447-21315-00-00

1
Out of stock

4

STAY, ENGINE 3

256-21316-01-00

1
Out of stock

5

STAY, ENGINE 4

256-21317-01-00

1
Out of stock

6

STAY, ENGINE 5

447-21318-00-98

1
Out of stock

7

STAY, ENGINE 6

447-21319-00-00

1
Out of stock

8

STAY, ENGINE 7

447-21387-00-00

1
Out of stock

9

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

10

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

11

BOLT, FLANGE

95817-08090-00

1

$3.54

In stock

12

NUT, SELF-LOCKING

90185-08090-00

1
Out of stock

13

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

BOLT, WASHER BASED (3Y1)

90105-10139-00

1
Out of stock

16

—

$6.02

In stock

17

BOLT, FLANGE

90105-10N53-00

—
Out of stock

18

—

$6.02

In stock

19

BOLT, WASHER BASED(1RU)

90105-10747-00

—
Out of stock

20

—

$6.02

In stock

21

BOLT, DOME HEAD

90106-10029-00

1
Out of stock

22

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

23

—

$6.02

In stock

24

BOLT, FLANGE

(95826-10070-00)

1
Out of stock

25

NUT, SELF LOCKING (3G1)

90185-10091-00

—

$6.62

In stock

26

—

$6.02

In stock

27

CLAMP

(90465-20138-00)

1
Out of stock
