1981 Yamaha XS650S (XS650SH) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1981 Yamaha XS650S (XS650SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

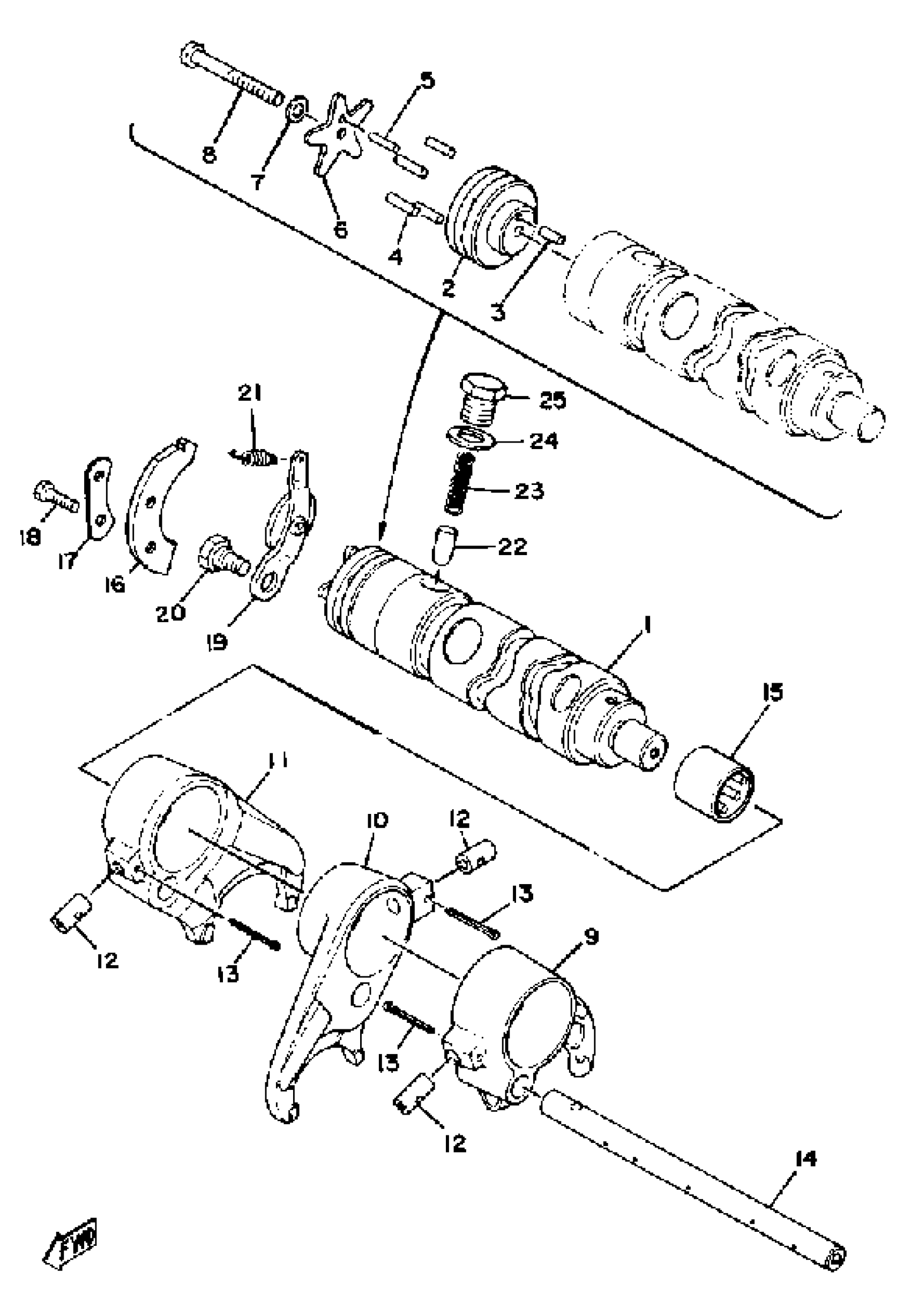

1981 Yamaha XS650S (XS650SH) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

306-18540-00-00

1
Out of stock

2

. CAM, SHIFT 2

(306-18546-00-00)

1
Out of stock

3

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

4

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

5

PIN, DOWEL

93603-14026-00

1
Out of stock

6

PLATE, SIDE 1

(168-18561-00-00)

1
Out of stock

7

WASHER, TOOTH

92990-05300-00

—
Out of stock

8

SCREW, PAN HEAD

98580-05545-00

1

$5.86

In stock

9

FORK, SHIFT 1

256-18511-00-00

1
Out of stock

10

FORK, SHIFT 2

256-18512-00-00

1
Out of stock

11

FORK, SHIFT 3

256-18513-00-00

1
Out of stock

12

PIN, SPEC''L SHAPE

90249-08122-00

1
Out of stock

13

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

14

BAR, SHIF FRK GDE 1

256-18531-00-00

1
Out of stock

15

UNAVAILABLE IN PRICE BOOK

93320-21501-00

1
Out of stock

16

PLATE, STOPPER 2

256-18562-00-00

1
Out of stock

17

PLATE, LOCK SCREW

256-18565-00-00

1
Out of stock

18

BOLT

90101-06091-00

1
Out of stock

19

STOPPER LEVER ASSEMBLY

341-18140-00-00

1
Out of stock

20

BOLT

90109-06181-00

1
Out of stock

21

SPRING, TENSION

90506-10022-00

1
Out of stock

22

STOPPER, CAM

137-18547-00-00

1
Out of stock

23

SPRING, COMPRESSION

90501-10068-00

1
Out of stock

24

GASKET

90430-16047-00

1
Out of stock

25

BOLT

90109-16392-00

1
Out of stock
