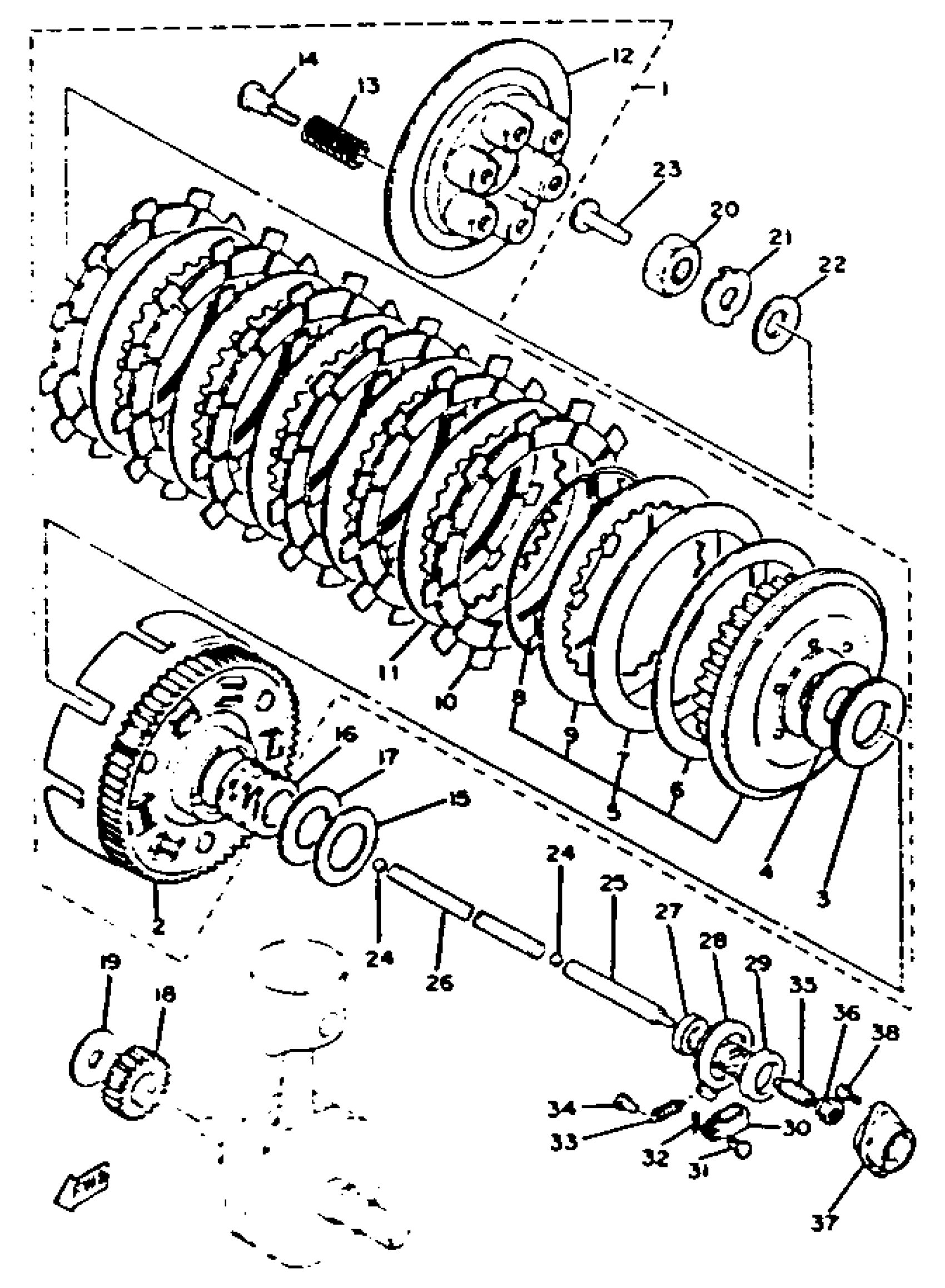

Find the part on the Clutch diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH ASSEMBLY

(1T3-16301-00-00)

1
Out of stock

2

PRI DRVN GEAR

(256-16150-02-00)

1
Out of stock

3

BEARING, FLAT #41

93341-23504-00

1
Out of stock

4

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

5

. CLUTCH BOSS ASSEMBLY

1T3-16370-00-00

1
Out of stock

6

.. PLATE, SEAT

2H7-16384-00-00

1
Out of stock

7

.. SPRING, CLUTCH BOSS

2H7-16383-00-00

1
Out of stock

8

.. RING, CLUTCH BOSS

1T3-16385-00-00

1
Out of stock

9

.. PLATE, CLUTCH 2

256-16325-00-00

1
Out of stock

10

PLATE, FRICTION (447)

341-16321-13-00

1
Out of stock

11

PLATE, CLUTCH (447)

341-16325-01-00

1
Out of stock

12

. PLATE, PRESSURE 1

341-16351-01-00

1
Out of stock

13

SPRING,COMPRESSION 2561633310

90501-23142-00

1
Out of stock

14

SCREW (584)

90149-06102-00

—
Out of stock

15

WASHER, PLATE(1FK)

90201-256K6-00

—
Out of stock

16

SPACER

90560-25131-00

1
Out of stock

17

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

18

GEAR, PRI DRIVE

(256-16111-00-00)

1
Out of stock

19

WASHER, PLATE

90201-16579-00

1
Out of stock

20

NUT, HEXAGON (2H7)

90170-18221-00

—
Out of stock

21

WASHER, LOCK

90215-19139-00

1
Out of stock

22

WASHER, CONICAL SPRING

90208-18025-00

1
Out of stock

23

ROD, PUSH 1

256-16356-00-00

1
Out of stock

24

BALL

93505-16006-00

—
Out of stock

25

ROD, PUSH 2

447-16357-01-00

1
Out of stock

26

ROD, PUSH 3

341-16376-00-00

1
Out of stock

27

OIL SEAL (3G1)

93102-08206-00

—
Out of stock

28

PUSH LEVER ASSEMBLY

1T3-16340-00-00

1
Out of stock

29

SEAL, DUST

214-16347-01-00

1
Out of stock

30

JOINT

214-16389-00-00

—
Out of stock

31

PIN W/HOLE 214163790000

90240-06005-00

—
Out of stock

32

. PIN, COTTER

91401-10015-00

1
Out of stock

33

SPRING, TENSION

90506-10023-00

1
Out of stock

34

HOOK, SPRING

132-16346-00-00

—
Out of stock

35

BOLT SET 256163430100

90113-08021-00

—
Out of stock

36

NUT

90179-08179-00

—
Out of stock

37

HOUSING, PUSH SCREW

371-16396-00-00

1
Out of stock

38

SCREW,PAN HEAD (646)

98580-05012-00

—
Out of stock
