1981 Yamaha XS650 (XS650H) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

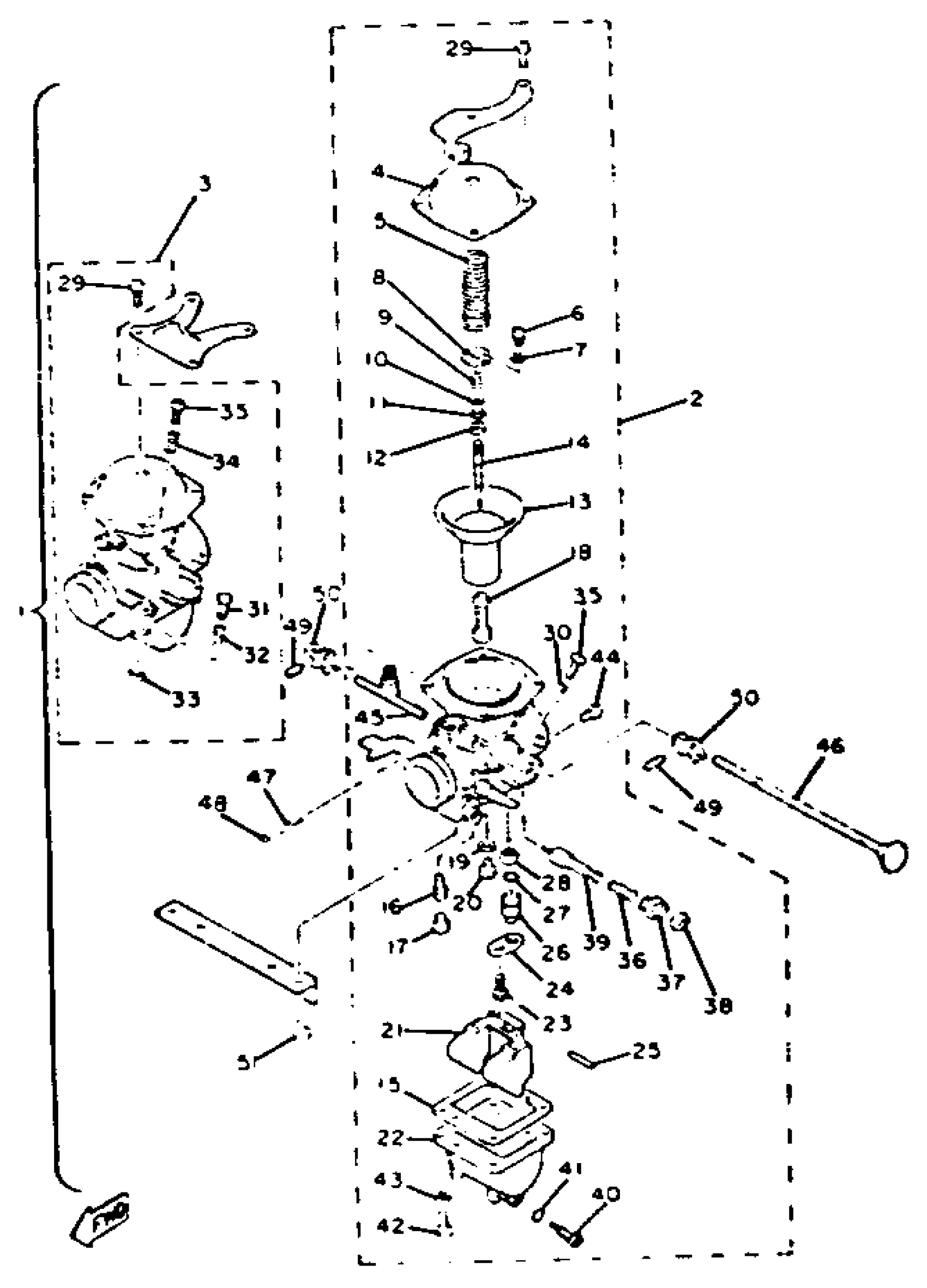

1981 Yamaha XS650 (XS650H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

(3G1-14900-00-00)

1
Out of stock

2

. CARBURETOR ASSEMBLY 1

3G1-14901-00-00

1
Out of stock

3

. CARBURETOR ASSEMBLY 2

3G1-14902-00-00

1
Out of stock

4

COVER, DIAPHRAGM

(3G1-14958-01-00)

1
Out of stock

5

.. SPRING, DIAPHRAGM

3G1-14933-00-00

1
Out of stock

6

SCREW, PAN HEAD (J10)

98580-03008-00

1
Out of stock

7

WASHER, SPRING

92990-03100-00

1
Out of stock

8

PLATE, DIAPHRAGM

3F7-14936-00-00

—
Out of stock

9

SPRING, NEEDLE

3F7-14589-00-00

1
Out of stock

10

WASHER, PLATE (7Y2)

90201-037F2-00

1
Out of stock

11

CLIP

256-14919-00-00

1
Out of stock

12

RING, NEEDLE

3F7-14918-00-00

1
Out of stock

13

DIAPHRAGM ASSY

3F7-14940-00-00

1
Out of stock

14

.. NEEDLE

2H7-14116-12-00

1
Out of stock

15

GASKET, FLOAT CHAMBER

3F7-14984-00-00

1
Out of stock

16

.. JET, PILOT #425

256-14142-42-A0

1
Out of stock

17

SCREW, PLUG

3F7-14991-00-00

—
Out of stock

18

NOZZLE, MAIN

(2F3-14941-92-00)

1
Out of stock

19

WASHER,MAIN JET

137-14153-00-00

—
Out of stock

20

.. JET, MAIN #1325

620-14231-99-A0

1
Out of stock

21

FLOAT

3H5-14985-00-00

—
Out of stock

22

. BODY, FLOAT CHAMBER

3U6-14981-06-00

1
Out of stock

23

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

24

. PLATE

2H0-14146-00-00

1
Out of stock

25

PIN, FLOAT

537-14186-00-00

—
Out of stock

26

NEEDLE VALVE SET

25G-14107-20-00

—
Out of stock

27

O-RING

8F2-14147-00-00

—
Out of stock

28

NET, FILTER

1J7-14994-00-00

—
Out of stock

29

SCREW, PAN HEAD(62X)

97885-05010-00

1
Out of stock

30

. SPRING, THROTTLE STOP

3F7-14133-00-00

1
Out of stock

31

. ROD, PUSH

584-14992-00-00

1
Out of stock

32

SPRING, THROTTLE STOP

(584-14934-00-00)

1
Out of stock

33

. CLIP

256-14937-00-00

1
Out of stock

34

. , SPRING, THROTTLE STOP

3F7-14934-00-00

1
Out of stock

35

. STOP SCREW SET

12R-1490K-00-00

1
Out of stock

36

.. SPRING, PLUNGER

3F7-14135-00-00

1
Out of stock

37

.. CAP, PLUNGER

3F7-14174-00-00

1
Out of stock

38

.. COVER, PLUNGER CAP

3F7-14173-00-00

1
Out of stock

39

.. PLUNGER, STARTER

3F7-14171-00-00

1
Out of stock

40

SCREW

2L1-14191-00-00

—
Out of stock

41

O-RING

214-14147-00-00

—
Out of stock

42

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

43

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

44

JET, MAIN (#135)

3G2-14231-27-00

—
Out of stock

45

.. PIPE, STARTER CON

3G1-14988-00-00

1
Out of stock

46

. SHAFT, STARTER LVR

3G1-14977-00-00

1
Out of stock

47

SPRING

583-14589-00-00

—
Out of stock

48

BALL

93501-08001-00

—
Out of stock

49

. SCREW, STARTER LEVER 2

584-14991-00-00

1
Out of stock

50

. LEVER, STARTER

3F7-14905-00-00

1
Out of stock

51

SCREW, PAN

98507-06014-00

—
Out of stock
