1980 Yamaha XS650 (XS650G) Intake Diagram

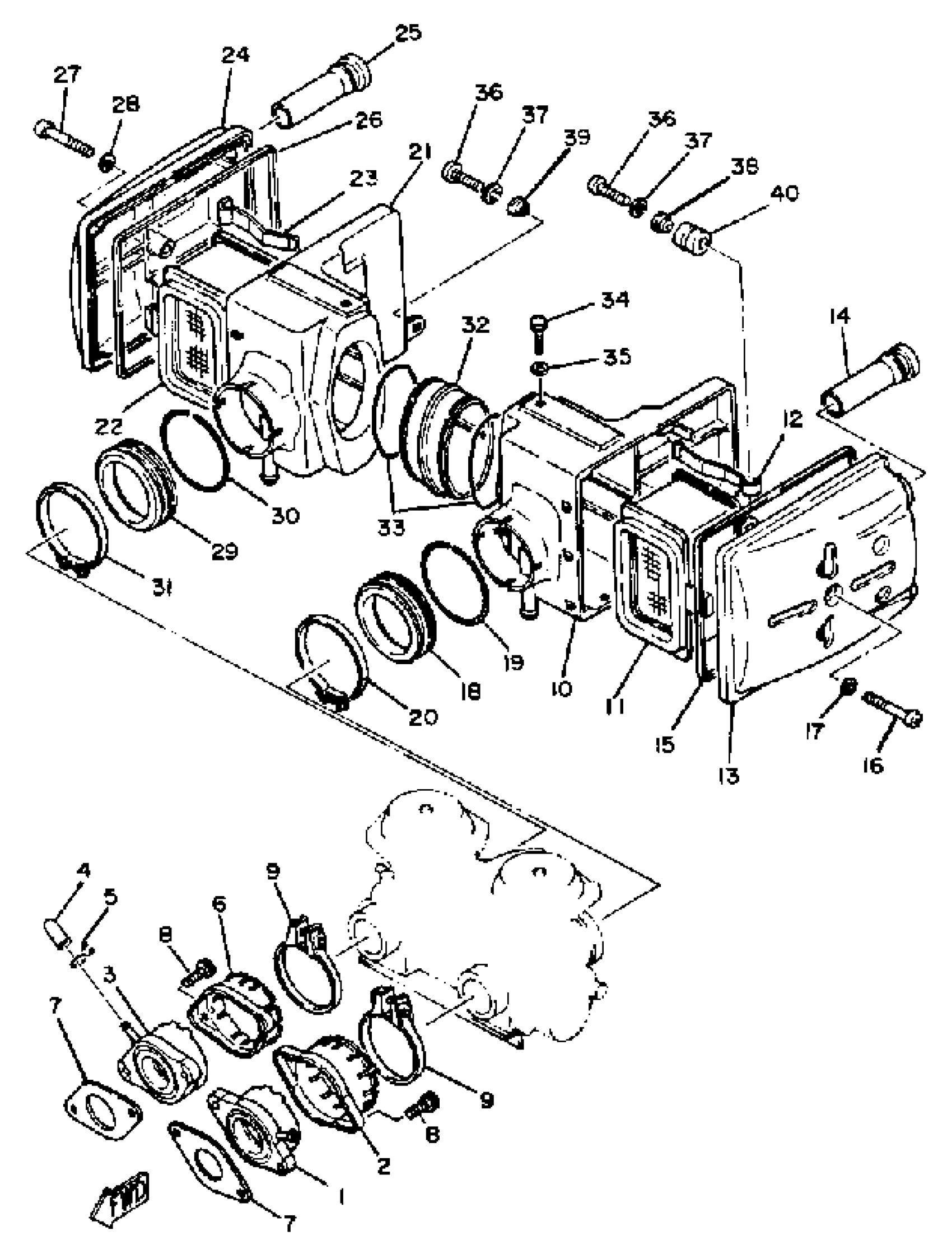

Find the part on the Intake diagram for your 1980 Yamaha XS650 (XS650G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
JOINT, CARBURETOR 1
3G1-13586-00-00
2
COVER, CARB.JOINT
3G1-13564-00-00
3
JOINT, CARBURETOR 2
3G1-13596-00-00
4
PLUG, BLIND
16G-13569-00-00
5
CLIP (3G0)
90467-10039-00
6
COVER, MANIFOLD 2
3G1-13594-00-00
10
CASE, AIR CLEANER 1
3G1-14411-00-00
11
Element, Air Cleaner
3G1-14451-01-00
12
PLATE, ELEMENT FTNG
3G1-14468-00-00
13
CAP, CLEANER CASE 2
3G1-14422-00-00
14
SILENCER, INTAKE 1
3G1-14431-00-00
15
SEAL
5T8-14452-00-00
18
JOINT, AIR CLNR 1
3G1-14453-00-00
21
CASE, AIR CLEANER 2
3G1-14421-00-00
22
Element, Air Cleaner
3G1-14451-01-00
23
PLATE, ELEMENT FTNG
3G1-14468-00-00
24
CAP, CLEANER CASE 2
3G1-14422-00-00
25
SILENCER, INTAKE 1
3G1-14431-00-00
26
SEAL
5T8-14452-00-00
29
JOINT, AIR CLNR 1
3G1-14453-00-00
32
JOINT, AIR CLNR 2
3G1-14463-00-00
33
O-RING (583 OIL CLEANER)
93210-64297-00
38
COLLAR (3L1)
90387-07717-00
39
COLLAR
90387-07549-00
